- mpnPANLCA4-14-L
- brandname: Panduit
- manufacturername: Panduit

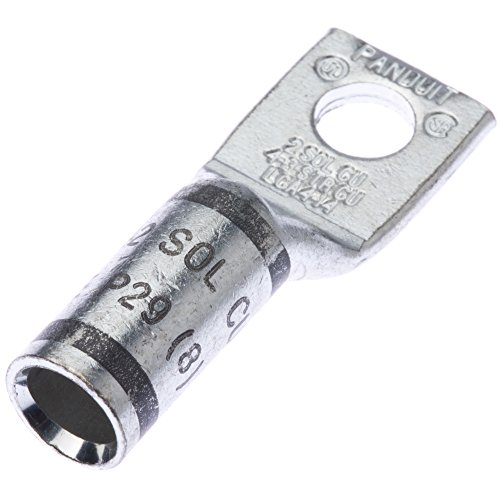

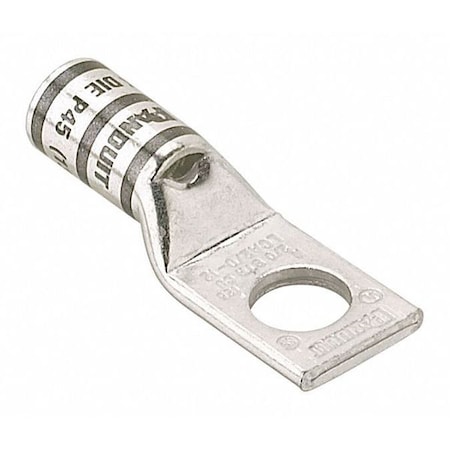

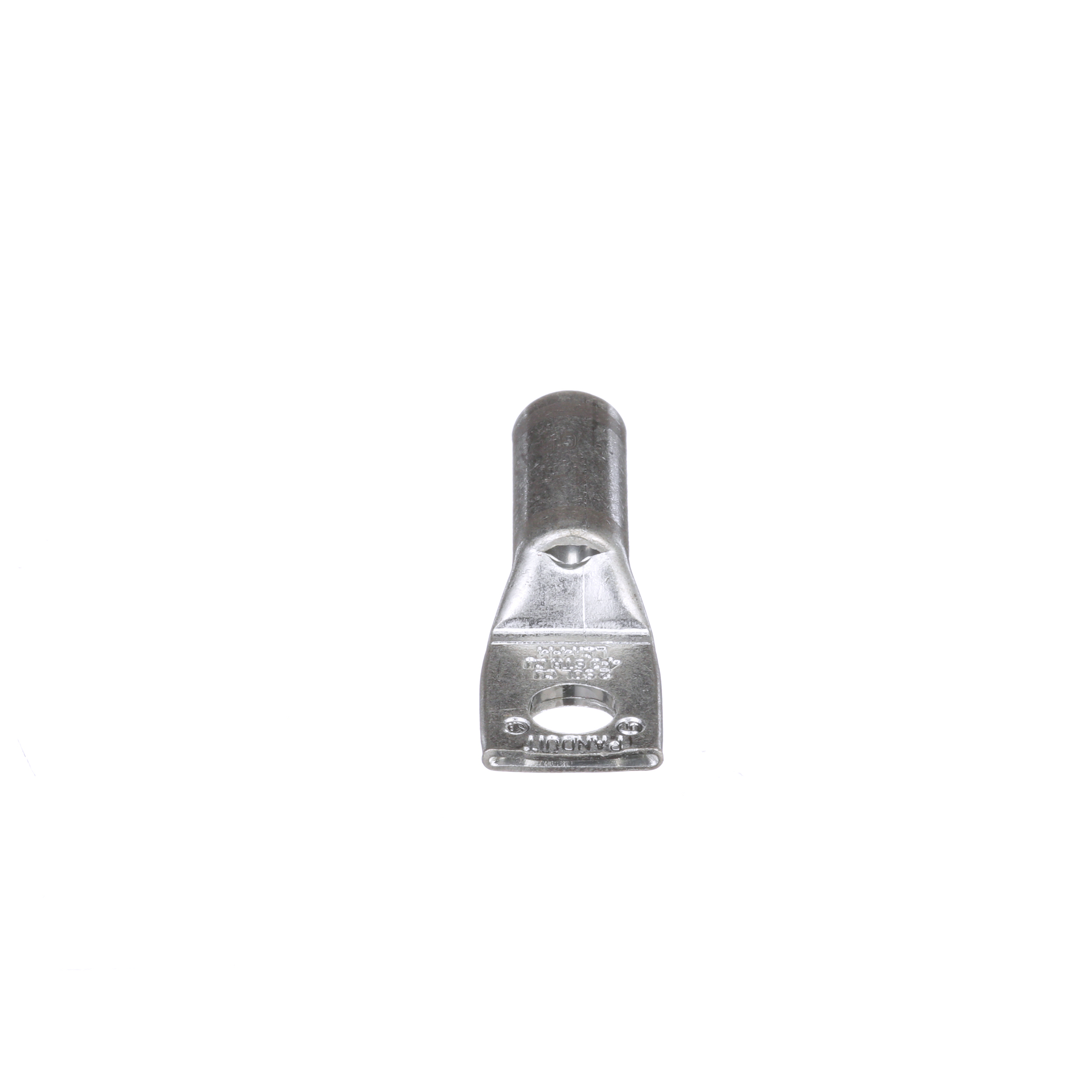

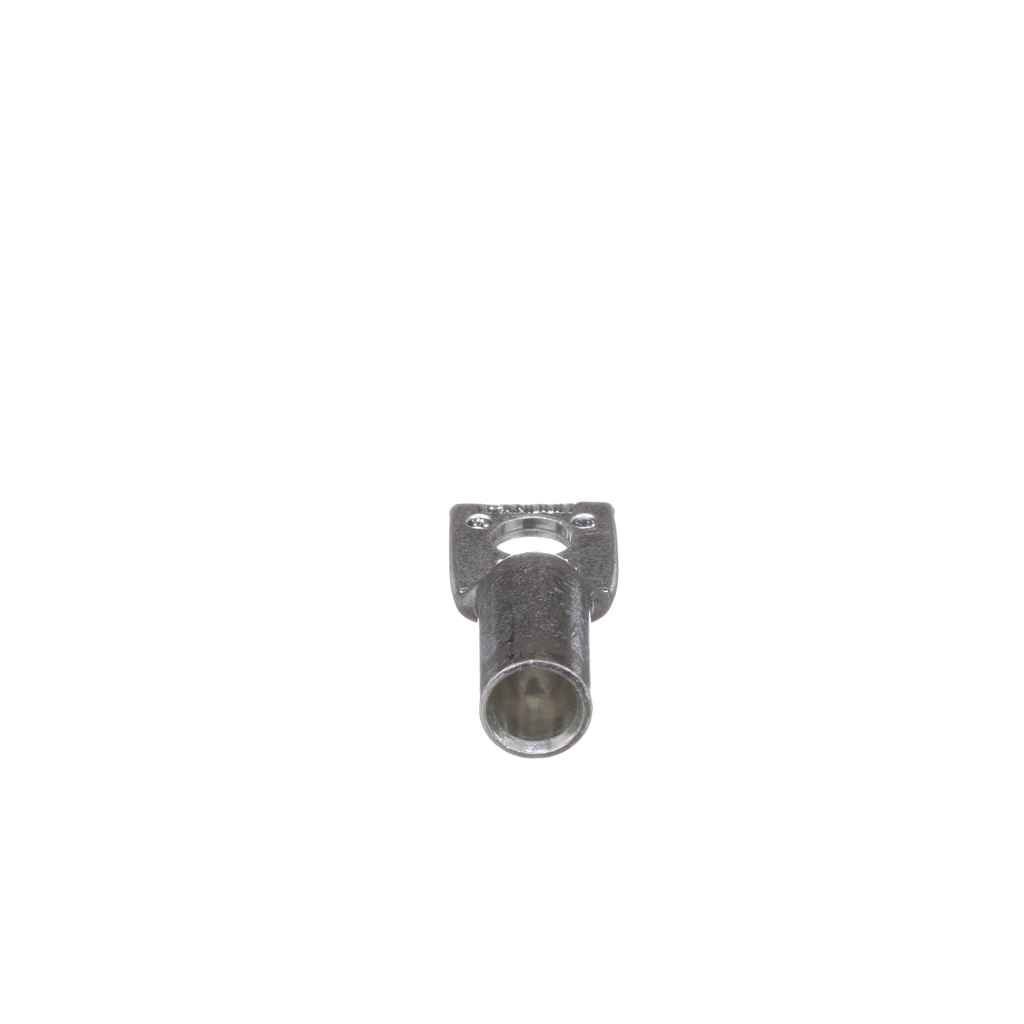

Panduit LCA4-14-L Copper Compression Lug, 1 Hole, #4 - #3 AWG STR, #2 AWG SOL, 1/4-Inch Stud
- Brand: Panduit
- PartNumber: LCA4-14-L
- Model: LCA4-14-L
- Color: Gray
- Size: Conductor Size/Range 1 400kcmil
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 4 - 2 |
| amperage rating | Panduit?? |
| Application | Panduit??? |
| Approval | Approval |
| Approvals | CSA, UL |
| ARRA Compliant | Y |
| Barrel Length | 0.81, Barrel Length |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Barrel Type | Standard, with Inspecti. |
| Base Material | Copper |
| Base Product Number | LCA4 |
| Brand | PANDUIT, Pan-Lug? |
| Brand Name | PANDUIT |
| Burndy Die Index Number | 8 |
| Buy American Compliant | Y |
| Cable Size | 4 to 3 AWG STR, 2 AWG S. |
| California Pro65 Cancer | No |
| Carton | 50 |
| Catalog Number | LCA4-14-L |
| Category | Connectors, Interconnec. |
| Category Description | Comp & Mech Lugs and Bu. |
| Classification | Comp & Mech Lugs and Bu. |
| Color | Gray |
| Color Code | Gray |
| Color Family | Gray |
| Conductor Material | Conductor Material |
| Conductor Size | 4-3 AWG Stranded, 2 AWG. |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Standard Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Copper Code Conductor S. | 4 |
| Country of Origin | MX - Mexico, Mexico |
| Country Of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Country of Origin 2Digit | MX |
| Description | 4AWG 1HOLE Lug |
| Diameter - Barrel ID | 0.280" (7.11mm) |
| Diameter - Barrel OD | 0.380" (9.65mm) |
| Diameter - Ring ID | 0.270" (6.86mm) |
| Die Code | P29 |
| Die Color | Gray |
| Die Index | Die Index |
| EAN | 00074983900114 |
| ECCN | EAR99 |
| Energy Star Flag | No |
| extra long description | PAN LCA4-14-L Pan-Lug . |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated, No |
| Finish/Coating | Tin-Plated |
| Gross Weight | 1.31 lbs |
| GTIN | 00074983900114 |
| GTIN Package | 00074983900114 |
| Hazardous Material Flag | N |
| Inside Diameter (In.) | 0.28 |
| Inside Diameter (mm) | 7.11 |
| Insulation | Non-Insulated |
| Insulation Material | No |
| Item | Lug Compression Connect. |
| Item Name | Compression Lug |
| Item Number | LCA4-14-L |
| Item Type | Copper Compression Conn. |
| Lead Content Indicator | N |
| Lead Free Status / RoHS. | RoHS Compliant |
| Length | 1.63" |
| Length - Overall | 1.630" (41.40mm) |
| Long Description | The LCA4-14-L Tin-Plate. |
| Lug Type | 1 Stud Hole Lug |
| Lug Wire Size | 4-3 AWG |
| Made In America | Yes |
| Made in USA | No |
| Manufacturer | PANDUIT |
| Manufacturer Name | PANDUIT |
| Manufacturer Part Number | LCA4-14-L |
| Manufacturer Standard L. | 4 Weeks |
| Manufacturers Part Numb. | LCA4-14-L |
| Material | Copper, Pan-Steel??, Ti. |
| Material/Composition | Copper |
| Max Conductor Range | 2 AWG |
| Maximum Voltage (kV) | 35 |
| media | Yes |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Conductor Range | 4 AWG |
| Min Order Qty | 50 |
| Min. Order UOM | Piece |
| Mounting | 7/8, 1-Hole, 44750 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1, 1.0000, Number of Ho. |
| Outer Diameter | 0.38 in. |
| Outer Diameter (In.) | 0.38 |
| Outer Diameter (mm) | 9.65 |
| Overall Length | 1.63, Overall Length |
| Overall Length (In.) | 1.63 |
| Overall Length (mm) | 41.4 |
| Package | Bulk |
| Packaging | Bulk Pack |
| Pad Size | Pad Size |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Panduit Die Index Number | P29 |
| Peep Hole | No |
| Product Segment | IEI |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| Product Type | Pan-Lug LCA4-14-L Comp. |
| REACH Status | False |
| Restricted Use of Hazar. | N |
| RoHS Compliant | Compliant, Yes |
| RoHS Flag | Yes |
| Series | Pan-Lug, Pan-Lug? |
| Size | #4 ? #3 AWG Code STR, #. |
| Special Features | Consult cable manufactu. |
| standard | UL listed to 486A-486B . |
| Standard | C22.2 No. 65-13, 486A-4. |
| Standard Carton Volume . | 0.0000 |
| Standard Carton Weight . | 0.0000 |
| Standard Pack/Case Quan. | 50/Pack |
| Standard Package | 50 |
| Standard Package Volume. | 0.0328 |
| Standard Package Weight. | 1.3150 |
| Standards | UL Listed, CSA Certified |
| Standards Met | C22.2 No. 65-13, 486A-4. |
| Std Ctn Qty | 0 |
| Std Package Height In | 3.4 |
| Std Package Height MM | 86.36 |
| Std Package Length In | 4.7 |
| Std Package Length MM | 119.38 |
| Std Package Width In | 3.4 |
| Std Package Width MM | 86.36 |
| Std. Pkg. Qty. | 50 |
| Std. Pkg. UOM | Piece |
| Strip Length | 7/8 Inch |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Size | Stud Size, 1/4, 1/4 Inc. |
| Stud/Tab Size | 1/4 Stud |
| sub brand | Panduit?? |
| Sub Brand | Pan-Lug, Pan-Lug? |
| T & B Die Index Number | 8 |
| Tab Thickness | 0.090" (2.29mm) |
| Temperature Rating | 194 deg F (90 deg C) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Lug, Grounding |
| Termination | Crimp, Barrel |
| Tongue Angle | Straight |
| Tongue Size | 0.55 Inch Width x 0.09 . |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Tongue Type | Straight, Standard, Sta. |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Type | Tin-Plated Copper Compr. |
| UL Temperature Rating (. | 90 |
| UNSPSC | 39121405 - Cable or wir. |
| UOM EA PK | PK |
| UPC | 074983900114, 074983900. |
| UPC ID | UPC ID |
| Voltage Rating | 35 Kilo-Volt, Voltage R. |
| Volts AC | 600 |
| Weight per each | 0.026 |
| Width | 0.55" |
| Width - Outer Edges | 0.550" (13.97mm) |
| Wire Gauge | 2-4 AWG |
| Wire Size | Wire Size |
| Wire Strip Length (In.) | 7/8 |
| Wire Strip Length (mm) | 22.2 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Elliott Electric | LCA414L | 1.6489 | 1 | 10 | | Panduit | 0.026 | 1.6489 @ 10 |
 | cbtcompany.com | LCA4-14-L | 1.77 | 1 | 10 | | PANDUIT | | 1.77 @ 10 |
 | French Gerleman | PANDLCA414L | 1.77 | 1 | 10 | | Panduit | | 1.77 @ 10 |
| iodParts | LCA4-14-L | 2.261 | 300 | 550 | | Panduit | | 2.261 @ 300 |
 | mecampbell.com | PANLCA4-14-L | 2.43 | 1 | 10 | 151 | Panduit | | 2.43 @ 10 |
 | mayerelectric.com | PANLCA414L | 2.65 | 1 | 10 | | PANDUIT | 1.315 | 2.65 @ 10 |
| Bristol Electronics | LCA4-14-L | 2.6936 | 1 | 135 | | PANDUIT | | 2.6936 @ 10 |
| Monarch Electric | 129183 | 2.7035 | 1 | 10 | | Panduit | | 2.7035 @ 10 |
 | alldataresource.com | LCA4-14-L | 2.95 | 1 | 10 | | Panduit | | 2.95 @ 10 |
| Digi-Key | 317644 | 3.095 | 1 | 1322 | | Panduit Corp | | 3.095 @ 10 |
 | IBS Electronics | LCA414L | 3.35 | 1 | 10 | | Panduit | | 3.35 @ 10 |
 | Newark | 14AC2029 | 3.39 | 1 | 184 | | PANDUIT | | 3.39 @ 10 |
| Hotenda | H1650249 | 3.414 | 1 | 10 | | Panduit | | 3.414 @ 10 |
 | Zoro | G0772042 | 4.11 | 2 | 10 | 13 | Panduit | 1.32 | 4.11 @ 10 |
 | Platt.com | 0696515 | 4.18 | 1 | 126 | | Panduit | | 4.18 @ 10 |
 | Galco | LCA4-14-L-PNDT | 4.26 | 50 | 10 | | Panduit | 1.31 | 4.26 @ 50 |
 | crescentelectric.com | 85524 | 4.46 | 1 | 49 | | Panduit | | 4.46 @ 10 |
| Airline Hydraulics | PANDUIT LCA4-14-L | 4.73 | 1 | 10 | | Panduit Corp | | 4.73 @ 10 |
| Onlinecomponents.com | LCA4-14-L | 4.74 | 1 | 104 | | PANDUIT | | 4.74 @ 10 |
| us.rs-online.com | 72259847 | 5.13 | 50 | 10 | | Panduit | | 5.13 @ 50 |
| steinerelectric.com | 7036 | 151.59 | 1 | 10 | | Panduit | | 151.59 @ 10 |
 | Carlton Bates Company | 07498390011 | 184.5 | 1 | 10 | | PANDUIT | | 184.5 @ 10 |
 | gordonelectricsupply.com | LCA4-14-L | 207.0 | 1 | 10 | 12 | PANDUIT | | 207.0 @ 10 |
 | jensentools.com | 10016336 | 215.51 | 1 | 10 | | Panduit | | 215.51 @ 10 |
 | turtle.com | PAN LCA4-14-L | 462.21 | 1 | 10 | | Panduit | | 462.21 @ 10 |
| Graybar | 88198154 | 512.2768 | 1 | 54 | | Panduit | | 512.2768 @ 10 |
