- mpnPANLCAN4-10-L
- brandname: Panduit
- manufacturername: Panduit

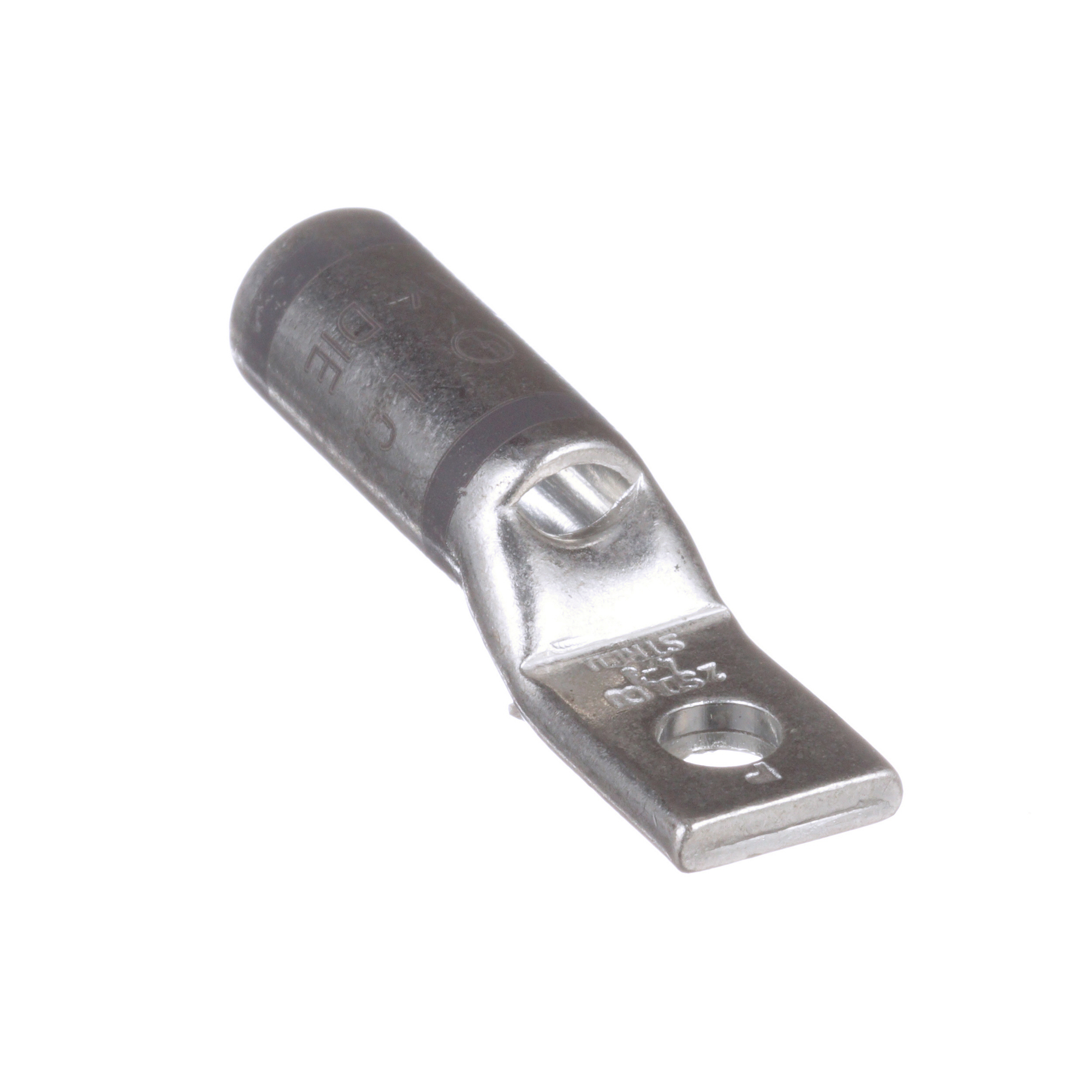

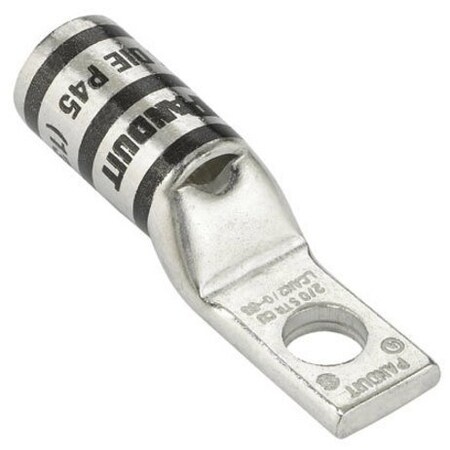

Panduit LCAN4-10-L Code Conductor Lug, Narrow Tongue, One Hole, Standard Barrel With Window, #4 - #3 AWG STR/#2 AWG SOL Copper Conductor Size, #10 Stud Hole Size, Gray Color Code, 0.11" Tongue Thickness, 0.40" Tongue Width, 0.81" Neck Length, 1.54" Overall Length
- Brand: Panduit
- PartNumber: LCAN4-10-L
- Model: LCAN4-10-L
- Color: Gray
- Size: #10
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Approvals | CSA, UL |
| Base Product Number | LCAN |
| Brand | Panduit, Pan-Lug? |
| Cable Size | 4 to 3 AWG STR, 2 AWG S. |
| Catalog Number | LCAN4-10-L |
| Category | Connectors, Interconnec. |
| Color | Color, Gray |
| Color Code | Gray |
| Color Family | Gray |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Standard Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Description | CONN TERM RECT TONG 4 A. |
| Detailed Description | Terminal Connector Rect. |
| Diameter - Barrel ID | 0.280" (7.11mm) |
| Diameter - Barrel OD | 0.380" (9.65mm) |
| Diameter - Ring ID | 0.200" (5.08mm) |
| Die Color | Gray |
| Digi-Key Part Number | 298-11683-ND |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Gross Weight | 1.09 lbs |
| GTIN | 00074983444861 |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCAN4-10-L |
| Item Type | Copper Compression Conn. |
| Length | 1.54", Length |
| Length - Overall | 1.540" (39.12mm) |
| Made in USA | No |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | LCAN4-10-L |
| Manufacturer Product Nu. | LCAN4-10-L |
| Manufacturer Standard L. | 9 Weeks |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 2 AWG |
| Mfr | Panduit Corp |
| Min Conductor Range | 4 AWG |
| Mounting | 42954, 1-Hole |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Package | Bulk |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Lug LCAN Series, LC. |
| Size | #4 ? #3 AWG Code STR, #. |
| Special Features | Consult cable manufactu. |
| Standard | C22.2 No. 65-13, 486A-4. |
| Stud Size | Stud Size, #10, 0.19 |
| Stud/Tab Size | 10 Stud |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.110" (2.79mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Type | 1 Hole |
| UNSPSC | 39121405 |
| UPC | 074983444861 |
| UPC Code | 074983444861 |
| Width | 0.4" |
| Width - Outer Edges | 0.400" (10.16mm) |
| Wire Gauge | 4 AWG |
| Wire Range | Wire Range |
| Wire Size | #4 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCAN4-10-L | 3.6 | 1 | 27 | | PANDUIT | | 3.6 @ 1 |
 | French Gerleman | PANDLCAN410L | 4.2 | 1 | 27 | | Panduit | | 4.2 @ 1 |
 | mecampbell.com | PANLCAN4-10-L | 5.26 | 50 | 27 | 151 | Panduit | | 5.26 @ 50 |
 | Digi-Key | 4564672 | 6.49 | 1 | 27 | | Panduit Corp | | 6.49 @ 1 |
 | Newark | 64K1329 | 6.91 | 1 | 4 | | PANDUIT | | 6.91 @ 1 |
| Onlinecomponents.com | LCAN4-10-L | 6.92 | 1 | 45 | | PANDUIT | | 6.92 @ 1 |
 | electricalparts.com | LCAN4-10-L | 7.336 | 1 | 89 | | Panduit | | 7.336 @ 1 |
 | Zoro | G0773059 | 7.62 | 1 | 27 | 210 | Panduit | 1.09 | 7.62 @ 1 |
 | Galco | LCAN4-10-L-PNDT | 8.0 | 50 | In Stock | | Panduit | 1.09 | 8.0 @ 50 |
 | Platt.com | 0684618 | 8.52 | 1 | 90 | | Panduit | | 8.52 @ 1 |
 | crescentelectric.com | 281984 | 9.11 | 1 | 27 | | Panduit | | 9.11 @ 1 |
| Airline Hydraulics | PANDUIT LCAN4-10-L | 9.64 | 1 | 27 | | Panduit Corp | | 9.64 @ 1 |
| us.rs-online.com | 70327190 | 10.63 | 1 | 14 | | Panduit | | 10.63 @ 1 |
 | Carlton Bates Company | 07498344486 | 379.5 | 1 | 27 | | PANDUIT | | 379.5 @ 1 |
 | gordonelectricsupply.com | LCAN4-10-L | 422.5 | 1 | 27 | 12 | PANDUIT | | 422.5 @ 1 |
 | turtle.com | PAN LCAN4-10-L | 942.77 | 1 | 27 | | Panduit | | 942.77 @ 1 |
| Graybar | 25103972 | 1054.4016 | 1 | 27 | | Panduit | | 1054.4016 @ 1 |
