- mpnPANP18-4R-M
- brandname: Panduit
- manufacturername: Panduit

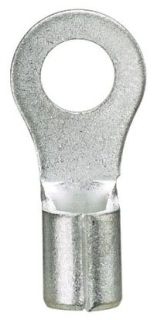

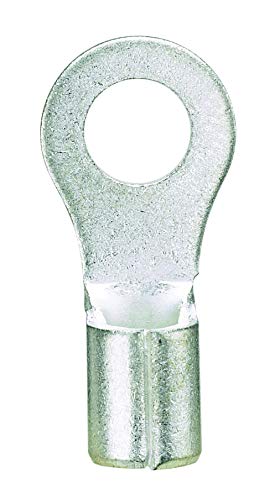

Panduit P18-4R-M Ring Terminal, 22 - 16 AWG, #4 Stud, Non-Insulated (1,000-Pack)


- Brand: Panduit
- PartNumber: P18-4R-M
- Model: P18-4R-M
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
Key | Value |
---|
Alternate Part No. | 644-P18-4R-M |
Approval | Approval |
Approvals | CSA, UL |
AWG Range | #18 |
Barrel Type | Standard |
Base Product Number | P18 |
Brand | Pan-Term?, Panduit |
Category | Connectors, Interconnec. |
Color | -, Metallic |
Color Family | Metallic |
Connection Material | Tin-Plated Copper |
connector gender | f |
Contact Finish | Tin |
Contact Material | Copper |
Contact Plating | Tin |
Country of Origin | MX - Mexico |
Country of Origin (subj. | Mexico |
ECCN | EAR99 |
Family Series | Panduit Terminals, Pan-. |
Features | Brazed Seam, Serrated T. |
Finish | Tin-Plated |
Gender | Female |
Gross Weight | 0 lbs |
Insulated | Non-Insulated |
Insulation | Insulation, Non-Insulat. |
Insulation Color | Bare, Insulation Color |
Insulation Diameter | - |
Insulation Type | Non-Insulated |
Item | Ring Terminal |
Item Number | P18-4R-M |
item per pack | 1 |
Length | 15.8 mm |
Length - Overall | 0.620" (15.75mm) |
Manufacturer | Panduit |
Manufacturer Part No. | P18-4R-M |
Manufacturer Part Number | P18-4R-M |
Material | Copper |
Material - Insulation | - |
Max Temp | 302 ?F |
Max. Voltage | 2000V |
Mfr | Panduit Corp |
Mounting Angle | Straight |
Mounting Method | Wire |
mounting type | inline |
Mounting Type | Free Hanging (In-Line) |
Net Weight | 0 lbs |
number of contacts | 1 |
Outer Diameter | 0.25 in. |
Package | Bulk |
package | Bulk |
Package Quantity | 1,000 |
Plating Material | Tin |
Product | Ring Terminals |
Product Category | Terminals |
Product Series | Pan-Term Terminals |
Product Status | Active |
Rated Voltage | 2000V |
RoHS Compliant | Yes |
Seam | Brazed |
Series | P18, Pan-Term? |
Stud Size | Stud Size, #4 |
Stud/Tab Size | 4 Stud, 4 (M2.6) |
Temperature Rating | Temperature Rating |
Terminal Material | Copper |
Terminal Type | Ring, Terminal Type, Ci. |
Termination | Crimp |
Termination Style | Crimp |
Thickness | 0.030" (0.76mm) |
Type | Rings |
Unit Weight | 675.853 g |
UNSPSC | 39121409 |
UPC Code | 074983802012 |
UPC ID | UPC ID |
Use With | CT-100, CT-1570, CT-230. |
Volts | 2,000 V |
Width | 0.25 in. |
Width - Outer Edges | 0.250" (6.35mm) |
Wire Gauge | 18-22 AWG, 22-18 |
Wire Range | 22 to 16 AWG, Wire Range |
Wire Size | 22-16 AWG |
Wire Size (AWG) | 16 AWG, 17 AWG, 18 AWG,. |
Wire Strip Length | 0.281 " |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
| Onlinecomponents.com | P18-4R-M | 0.115 | 1 | 2209 | | PANDUIT | | 0.115 @ 100 |
| Hotenda | H1656352 | 0.1316 | 1 | 100 | | Panduit | | 0.1316 @ 100 |
  | NEP Electronics | P18-4R-M | 0.14 | 35 | 100 | | Panduit | | 0.14 @ 100 |
  | French Gerleman | PANDP184RM | 0.15 | 1 | 100 | | Panduit | | 0.15 @ 100 |
  | mecampbell.com | PANP18-4R-M | 0.16 | 1000 | 100 | 151 | Panduit | | 0.16 @ 1000 |
  | Galco | P18-4R-M-PNDT | 0.16 | 1000 | 100 | | Panduit | | 0.16 @ 1000 |
| us.rs-online.com | 71263668 | 0.1893 | 25 | 975 | | Panduit | | 0.1893 @ 100 |
| Airline Hydraulics | PANDUIT P18-4R-M | 0.19 | 1 | 100 | | Panduit Corp | | 0.19 @ 100 |
  | Platt.com | 0656447 | 0.19 | 1 | 100 | | Panduit | | 0.19 @ 100 |
  | Newark | 45AC6166 | 0.232 | 1 | 100 | | PANDUIT | | 0.232 @ 100 |
| Digi-Key | 450170 | 0.2345 | 1 | 3168 | | Panduit Corp | | 0.2345 @ 100 |
  | Tedss | 2025007876 | 0.5 | 20 | 100 | | PANDUIT | | 0.5 @ 100 |
  | swatee.com | P18-4R-M | 0.52 | 1 | 1894 | | Panduit | | 0.52 @ 100 |
  | Zoro | G0780433 | 151.23 | 1 | 100 | 148 | Panduit | 1.5 | 151.23 @ 100 |
  | alldataresource.com | PAN-P18-4R-M | 151.57 | 1 | 100 | | Panduit | | 151.57 @ 100 |
  | gordonelectricsupply.com | P18-4R-M | 166.09 | 1 | 100 | 12 | PANDUIT | | 166.09 @ 100 |
  | Carlton Bates Company | 07498380201 | 180.0 | 1 | 100 | | PANDUIT | | 180.0 @ 100 |
  | turtle.com | PAN P18-4R-M | 186.09 | 1 | 100 | | Panduit | | 186.09 @ 100 |
| Graybar | 88198507 | 233.9232 | 1000 | 100 | | Panduit | | 233.9232 @ 1000 |
