- mpnPANP18-6F-C
- brandname: Panduit
- manufacturername: Panduit

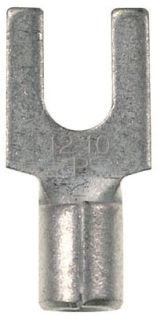

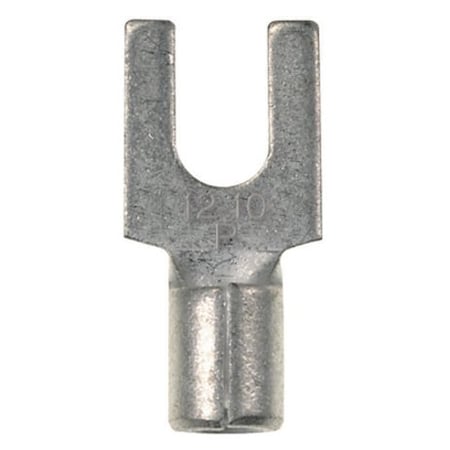

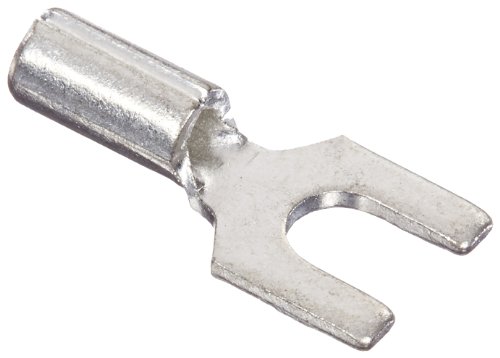

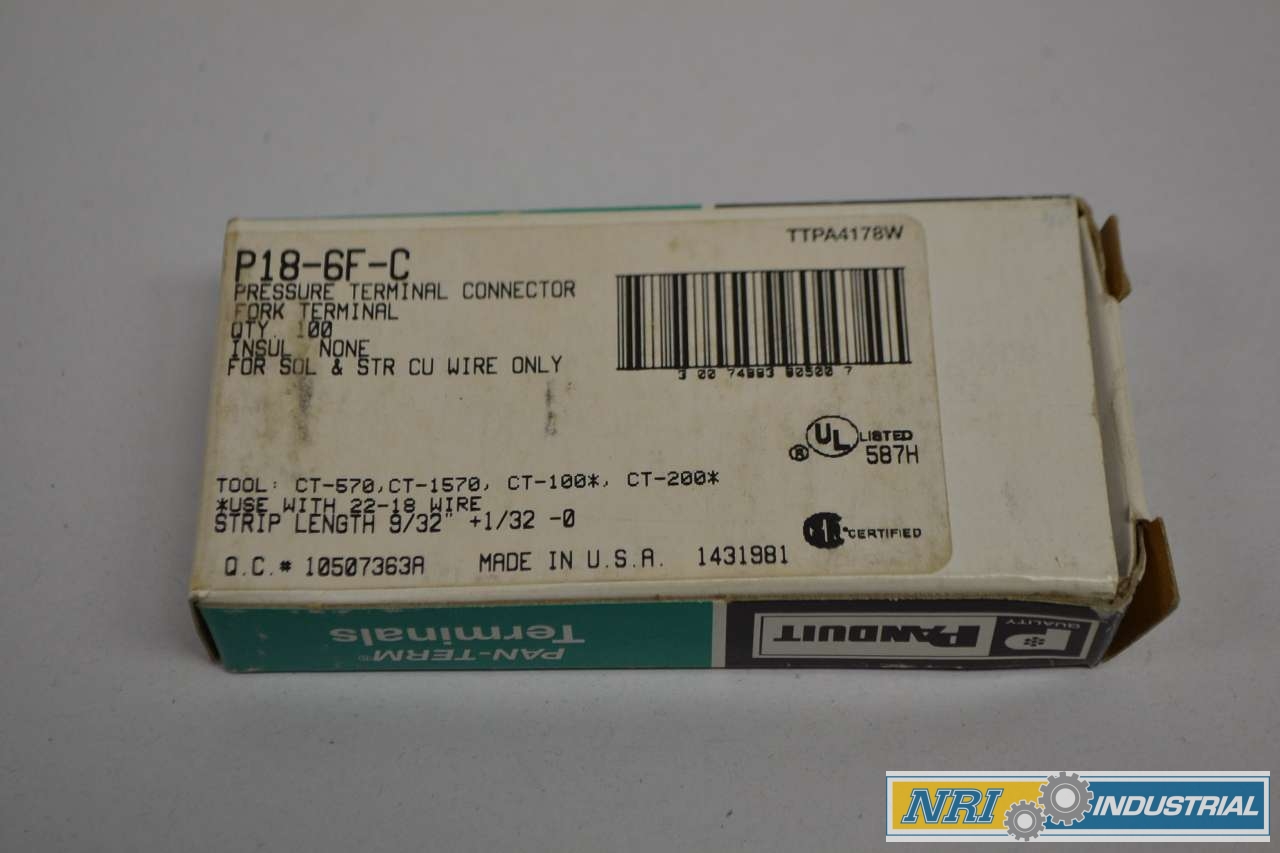

Panduit P18-6F-C Fork Terminal, Non-Insulated, 23 - 16 AWG Wire Range, #6 Stud Size, 0.03" Stock Thickness, 0.3" Terminal Width, 0.63" Terminal Length, 0.21" Center Hole Diameter (Pack of 100)


- Brand: Panduit
- PartNumber: P18-6F-C
- Model: P18-6F-C
- Size: #6
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
Key | Value |
---|
Alternate Part No. | 644-P18-6F-C |
Approvals | CSA, UL |
Brand | Panduit |
Connection Material | Tin-Plated Copper |
Contact Material | Copper |
Contact Plating | Tin |
Country of Origin (subj. | Mexico |
Family Series | Panduit Terminals, Pan-. |
Gross Weight | 0.19 lbs |
Insulated | Non-Insulated |
Insulation | Insulation, Not Insulat. |
Insulation Color | Bare, Insulation Color |
Insulation Type | Non-Insulated |
Item | Fork Terminal |
Item Number | P18-6F-C |
Length | 16 mm |
Manufacturer | Panduit |
Manufacturer Part No. | P18-6F-C |
Manufacturer Part Number | P18-6F-C |
Material | Copper |
Max Temp | 302 ?F |
Max. Voltage | 2000V |
Net Weight | 0 lbs |
Package Quantity | 100 |
Plating Material | Tin |
Product | Fork Terminals |
Product Category | Terminals |
Product Series | Pan-Term Terminals |
RoHS Compliant | Yes |
Seam | Brazed |
Stud Size | Stud Size, #6 |
Stud/Tab Size | 6 |
Terminal Material | Copper |
Terminal Type | Spade/Fork |
Termination Style | Crimp |
Unit Weight | 77.111 g |
Volts | 2,000 V |
Width | 7.6 mm |
Wire Gauge | 22-16 |
Wire Range | 22 to 16 AWG, Wire Range |
Wire Size | 22-16 AWG |
Wire Size (AWG) | 16 AWG, 17 AWG, 18 AWG,. |
Wire Strip Length | 0.281 " |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
  | Galco | P18-6F-C-PNDT | 0.39 | 500 | 100 | | Panduit | 0.19 | 0.39 @ 500 |
| Onlinecomponents.com | P18-6F-C | 0.406 | 1 | 100 | | PANDUIT | | 0.406 @ 100 |
  | mecampbell.com | PANP18-6F-C | 0.42 | 100 | 100 | 151 | Panduit | | 0.42 @ 100 |
  | Digi-Key | 298-15153-ND | 0.4328 | 1 | 100 | | Panduit Corp | | 0.4328 @ 100 |
| Airline Hydraulics | PANDUIT P18-6F-C | 0.46 | 1 | 100 | | Panduit Corp | | 0.46 @ 100 |
  | swatee.com | P18-6F-C | 0.71 | 1 | 100 | | Panduit | | 0.71 @ 100 |
  | Carlton Bates Company | 07498380500 | 37.0 | 1 | 100 | | PANDUIT | | 37.0 @ 100 |
  | Zoro | G0780451 | 39.48 | 1 | 100 | 26 | Panduit | 0.19 | 39.48 @ 100 |
  | alldataresource.com | 330268 | 42.6 | 1 | 100 | | Panduit | | 42.6 @ 100 |
  | turtle.com | PAN P18-6F-C | 45.25 | 1 | 100 | | Panduit | | 45.25 @ 100 |
  | NRI Industrial | D346341 | 49.34 | 1 | 100 | | PANDUIT | | 49.34 @ 100 |
| steinerelectric.com | 124711 | 51.39 | 1 | 100 | | Panduit | | 51.39 @ 100 |
  | gordonelectricsupply.com | P18-6F-C | 202.45 | 1 | 100 | 12 | PANDUIT | | 202.45 @ 100 |
