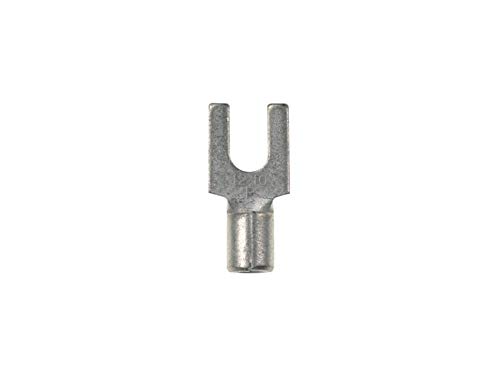

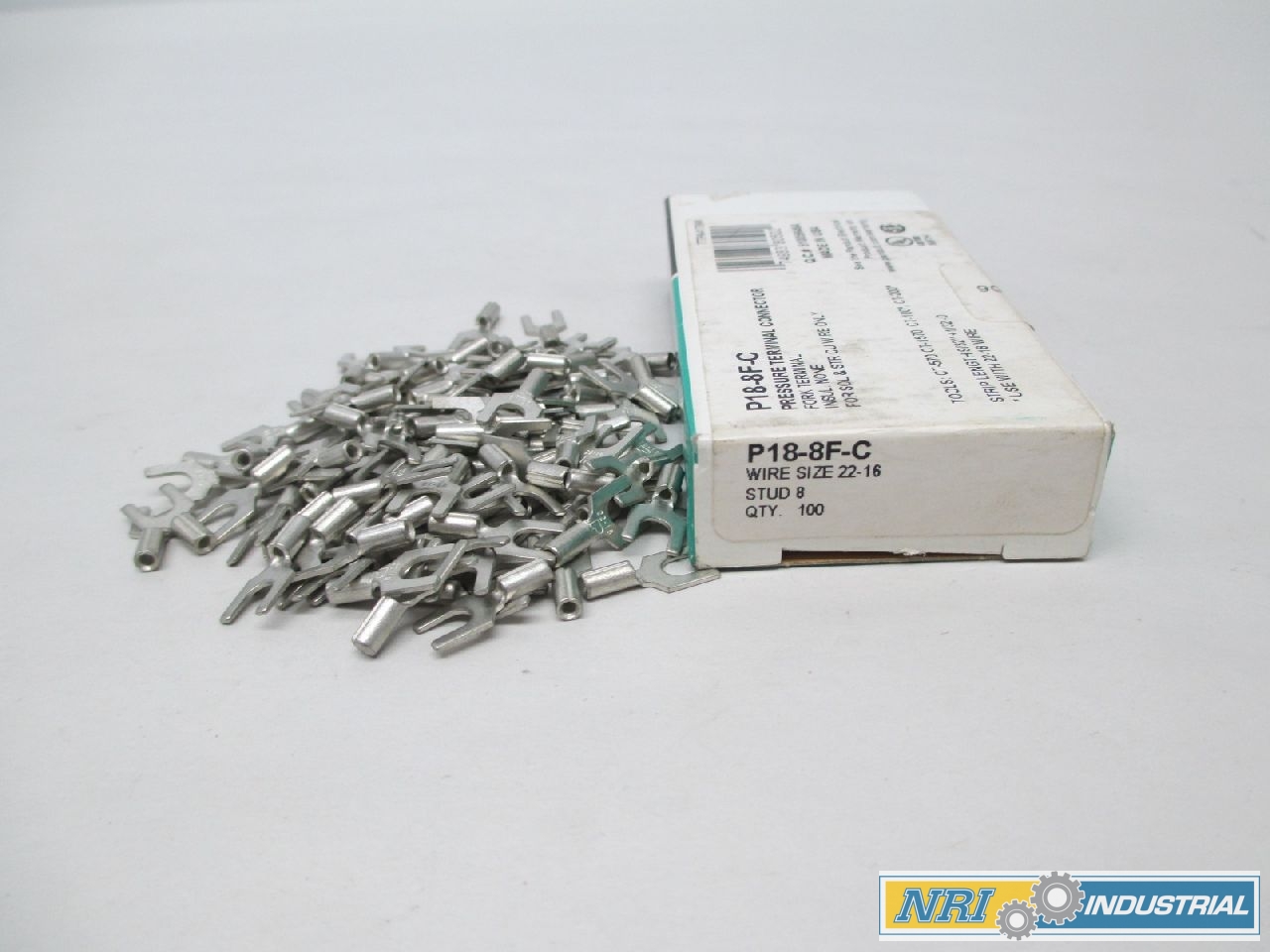

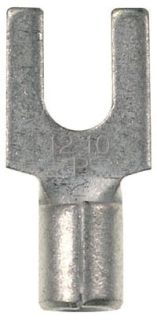

Panduit P18-8F-C Fork Terminal, 22 - 16 AWG, #8 Stud Size, Non-Insulated


- Brand: Panduit
- PartNumber: P18-8F-C
- Model: P18-8F-C
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 22 - 16 |
| Approvals | CSA, UL |
| AWG Range | #16 |
| Base Product Number | P18 |
| Brand | Pan-Term? |
| Category | Connectors, Interconnec. |
| Color | -, Metallic |
| Color Family | Metallic |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam |
| Finish | Tin-Plated |
| Gross Weight | 0.21 lbs |
| Insulated | Non-Insulated |
| Insulation | Insulation, Non-Insulat. |
| Insulation Color | Insulation Color |
| Insulation Diameter | - |
| IP/NEMA Rating | NEMA 1 |
| Item | Fork,Non-Insul,22-16 Aw. |
| Item Number | P18-8F-C |
| Length - Overall | 0.690" (17.53mm) |
| Length - Ring Center to. | - |
| Length - Termination | - |
| Manufacturer | Panduit |
| Manufacturer Part Number | P18-8F-C |
| Material | Copper |
| Material - Insulation | - |
| Max Temp | 302 ?F |
| Mfr | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Outer Diameter | 0.14 in. |
| Package | Bulk |
| Package Quantity | 100 |
| Part Status | Active |
| Plating Material | Tin |
| Product Series | Pan-Term Terminals |
| Rated Voltage | 2000V |
| RoHS Compliant | Yes |
| Series | Pan-Term? |
| Stud Size | Stud Size, #8 |
| Stud/Tab Size | 8 Stud |
| Terminal Material | Copper |
| Terminal Type | Spade/Fork, Standard |
| Termination | Crimp |
| Tongue Inside Opening | 0.170" (4.32mm) |
| Type | Fork Terminal |
| UNSPSC | 39121409 |
| Use With | CT-100, CT-1570, CT-230. |
| Volts | 2,000 V |
| Volts AC | 120 |
| Width | 0.32 in. |
| Width - Outer Edges | 0.320" (8.13mm) |
| Wire Gauge | 16-22 AWG |
| Wire Range | Wire Range |
| Wire Size | 22-16 AWG |
| Wire Size (AWG) | 16 AWG, 17 AWG, 18 AWG,. |
| Wire Strip Length | 0.281 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | P18-8F-C | 0.328 | 1 | 100 | | Panduit | | 0.312 @ 101 |
  | Galco | P18-8F-C-PNDT | 0.4 | 100 | 100 | | Panduit | 0.21 | 0.4 @ 100 |
  | mecampbell.com | PANP18-8F-C | 0.44 | 100 | 100 | 151 | Panduit | | 0.44 @ 100 |
  | Platt.com | 0656553 | 0.47 | 1 | 100 | | Panduit | | 0.47 @ 100 |
| Airline Hydraulics | PANDUIT P18-8F-C | 0.48 | 1 | 100 | | Panduit Corp | | 0.48 @ 100 |
| Digi-Key | 450191 | 0.4828 | 1000 | 149 | | Panduit Corp | | 0.4828 @ 100 |
| us.rs-online.com | 72260015 | 0.5326 | 100 | 100 | | Panduit | | 0.5326 @ 100 |
  | Newark | 48AC9891 | 0.573 | 1 | 100 | | PANDUIT | | 0.573 @ 100 |
| Graybar | 88198518 | 29.904 | 100 | 100 | | Panduit | | 29.904 @ 100 |
  | Zoro | G0422753 | 35.61 | 1 | 100 | 148 | Panduit | 0.21 | 35.61 @ 100 |
  | NRI Industrial | D332916 | 41.95 | 1 | 100 | | PANDUIT | | 41.95 @ 100 |
  | Carlton Bates Company | 07498380502 | 42.0 | 1 | 100 | | PANDUIT | | 42.0 @ 100 |
  | gordonelectricsupply.com | P18-8F-C | 42.09 | 1 | 100 | 12 | PANDUIT | | 42.09 @ 100 |
  | turtle.com | PAN P18-8F-C | 47.05 | 1 | 100 | | Panduit | | 47.05 @ 100 |
| steinerelectric.com | 61141 | 53.42 | 1 | 100 | | Panduit | | 53.42 @ 100 |
