- mpnPANP4-38R-E
- brandname: Panduit
- manufacturername: Panduit

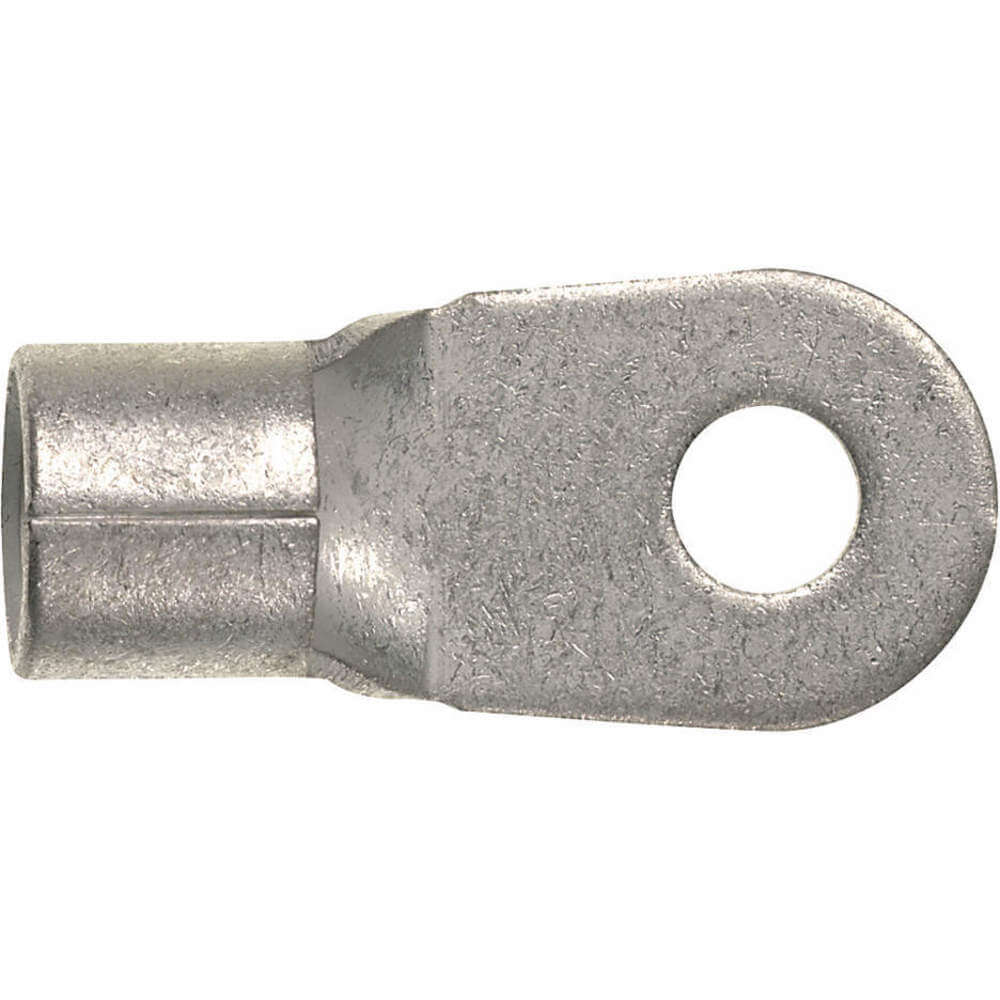

Panduit P4-38R-E Ring Terminal, Large Wire, 4 AWG, 3/8" Stud Size, Non-Insulated
- Brand: Panduit
- PartNumber: P4-38R-E
- Model: P4-38R-E
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 4 |
| Approvals | CSA, UL |
| AWG Range | #4 |
| Barrel Inside Dia. | 0.29 in |
| Barrel Inside Diameter | 0.29 in |
| Barrel Length | 0.56 in |
| Barrel Outside Diameter | 0.39 in |
| Barrel Style | Serrated Barrel |
| Base Product Number | P4-38 |
| Brand | Pan-Term? |
| Category | Connectors, Interconnec. |
| Color | - |
| Color Family | Metallic |
| Compatible Grainger Par. | 376T59 |
| Compatible Manufacturer. | CT-1701, CT-2600 |
| Connection Material | Copper |
| Connection Type | Crimp |
| Connector Plating | Tin |
| Connector Type | Ring Terminal |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico |
| Description | CONN RING CIRC 4AWG #3/. |
| Detailed Description | Ring Terminal Connector. |
| Digi-Key Part Number | 298-15181-ND |
| ECCN | EAR99 |
| Environmentally Friendly | Yes |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam |
| Finish | Tin-Plated |
| For Use With | CT-1701, CT-2600 (CD-26. |
| For Wire Size | 4 AWG |
| For Wire Sizes | 4 AWG to 4 AWG |
| Green Environmental Att. | Does Not Contain PVC |
| Gross Weight | 0.015 lbs |
| Hole Diameter | 0.39 in |
| Inside Diameter (In.) | 0.29 |
| Inside Diameter (mm) | 7.4 |
| Insulated | Non-Insulated |
| Insulation | Non-Insulated, None |
| Insulation Color | Bare, Insulation Color |
| Insulation Colour | Bare |
| Insulation Coverage | None |
| Insulation Diameter | - |
| Insulation Material | None |
| Insulation Type | Non-Insulated, Insulati. |
| Item | Ring Terminal |
| Item Number | P4-38R-E |
| Length | 1.5" |
| Length - Overall | 1.460" (37.08mm) |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | P4-38R-E |
| Manufacturer Product Nu. | P4-38R-E |
| Manufacturer Standard L. | 3 Weeks |
| Material | Copper |
| Material - Insulation | - |
| Max Temp | 302 ?F |
| Max. Temp. | 302 Degrees F |
| Max. Voltage | 2,000 V |
| Maximum Copper Conducto. | #4 |
| Maximum Operating Tempe. | 302 Degrees F |
| Maximum Voltage | 2,000V, 2,000 V |
| Maximum Wire Size | 4 AWG |
| Maximum Wire Size (AWG) | #4 |
| Mfr | Panduit Corp |
| Minimum Copper Conducto. | #4 |
| Minimum Operating Tempe. | 302 Degrees F, 302 Deg. |
| Minimum Wire Size | 4 AWG |
| Minimum Wire Size (AWG) | #4 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0.015 lbs |
| Outer Diameter | 0.39 in. |
| Outer Diameter (In.) | 0.39 |
| Outer Diameter (mm) | 9.9 |
| Overall Length | 1.46 in |
| Overall Length (In.) | 1.46 |
| Overall Length (mm) | 37.1 |
| Overall Width (In.) | 0.68 |
| Overall Width (mm) | 17.3 |
| Package | Bulk |
| Package Quantity | 20 |
| Packaging | 20 Per Bottle |
| Plating Material | Tin |
| Product Material | Copper |
| Product Name | Terminal Connector |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| Product Type | Terminal Connector |
| Rated Voltage | 2000V |
| Ring Width Ranges | 0.51 - 0.75 inches |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Seam Style | Brazed |
| Series | Pan-Term? |
| Special Features | Ring Tongue Design Assu. |
| Standards | UL486A-486B, CSA C22.2 . |
| Strip Length | 1/2 in |
| Stud Hole Size (In.) | 3/8" |
| Stud Hole Size (mm) | 10 |
| Stud Size | Stud Size, 3/8 in, 3/8 . |
| Stud/Tab Size | 3/8 Stud |
| Terminal Connection | Crimp |
| Terminal Material | Copper |
| Terminal Shape | Ring Terminal |
| Terminal Type | Ring Tongue, Ring, Circ. |
| Termination | Crimp, Crimp Terminatio. |
| Termination Style | Crimp |
| Thickness | 0.050" (1.27mm) |
| Tongue Length | 1.12 in |
| Tongue Length (In.) | 1.12 |
| Tongue Length (mm) | 28.4 |
| Tongue Thickness | 0.05 in |
| Tongue Width | 0.68 in |
| Tongue Width (In.) | 0.68 |
| Tongue Width (mm) | 17.3 |
| Tongue Width - Wire Con. | 0.68 in |
| Type | Ring Terminal |
| UL 94 Flammability Rati. | Not Applicable |
| UNSPSC | 39121409 |
| UPC Code | 074983870585 |
| Use With | CT-1701, CT-2600 (CD-26. |
| Volts | 2,000 V |
| Width | 0.7", 0.68 in. |
| Width - Outer Edges | 0.680" (17.27mm) |
| Wire Gauge | 4 AWG |
| Wire Range | 4 AWG, Wire Range |
| Wire Size | 4 AWG |
| Wire Size (AWG) | 4 AWG |
| Wire Strip Length | 0.5 " |
| Wire Strip Length (In.) | 44928 |
| Wire Strip Length (mm) | 12.7 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | P4-38R-E | 2.03 | 1 | 93 | | PANDUIT | | 2.03 @ 25 |
 | cbtcompany.com | P4-38R-E | 2.23 | 1 | 25 | | PANDUIT | | 2.23 @ 25 |
 | Galco | P4-38R-E-PNDT | 2.42 | 100 | 25 | | Panduit | 0.015 | 2.42 @ 100 |
 | mecampbell.com | PANP4-38R-E | 2.59 | 20 | 25 | 151 | Panduit | | 2.59 @ 25 |
 | Platt.com | 0657673 | 2.61 | 1 | 120 | | Panduit | | 2.61 @ 25 |
 | alldataresource.com | 193096 | 2.67 | 1 | 25 | | Panduit | | 2.67 @ 25 |
| Airline Hydraulics | PANDUIT P4-38R-E | 2.69 | 1 | 25 | | Panduit Corp | | 2.69 @ 25 |
 | Newark | 45AC6168 | 2.74 | 1 | 25 | | PANDUIT | | 2.74 @ 25 |
 | Digi-Key | 450247 | 2.7604 | 1 | 84 | | Panduit Corp | | 2.7604 @ 25 |
| us.rs-online.com | 71263686 | 2.86 | 1 | 100 | | Panduit | | 2.86 @ 25 |
 | electricalparts.com | P4-38R-E | 40.936 | 1 | 25 | | Panduit | | 40.936 @ 25 |
 | Zoro | G0287640 | 49.99 | 1 | 57 | | Panduit | 0.36 | 49.99 @ 25 |
| grainger.ca | WWG39AZ23 | 60.84431698 | 1 | 25 | | PANDUIT | 0.36 | 60.84431698 @ 25 |
 | Raptor Supplies | AH8XZQ | 86.773401 | 1 | 25 | | PANDUIT | | 86.773401 @ 25 |
 | gordonelectricsupply.com | P4-38R-E | 235.0 | 1 | 25 | 12 | PANDUIT | | 235.0 @ 25 |
 | turtle.com | PAN P4-38R-E | 262.9 | 1 | 25 | | Panduit | | 262.9 @ 25 |
| Graybar | 88198567 | 272.72 | 20 | 25 | | Panduit | | 272.72 @ 25 |
| steinerelectric.com | 7014 | 298.48 | 1 | 25 | | Panduit | | 298.48 @ 25 |
