- mpnPN12-8HDR-L
- brandname: Panduit
- manufacturername: Panduit

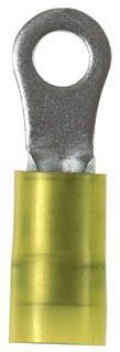

Panduit PN12-8HDR-L Ring Terminal, Heavy Duty, Nylon Insulated, 16 - 12 AWG, #8 Stud Size, Yellow (50-Pack)
- Brand: Panduit
- PartNumber: PN12-8HDR-L
- Model: PN12-8HDR-L
- Color: Yellow
- Size: 50-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 16 - 12 |
| Approvals | CSA, UL |
| AWG Range | #12 |
| Base Product Number | PN12 |
| Brand | Pan-Term? |
| Category | Connectors, Interconnec. |
| Color | Yellow |
| Color Family | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | Heavy Duty, Serrated Te. |
| Finish | Tin-Plated |
| Gross Weight | 0 lbs |
| Insulated | Insulated |
| Insulation | Insulated |
| Insulation Diameter | 0.120" ~ 0.225" (3.05mm. |
| Insulation Material | Nylon |
| Insulation Type | Nylon |
| Item Number | PN12-8HDR-L |
| Length - Overall | 1.060" (26.92mm) |
| Manufacturer | Panduit |
| Manufacturer Part Number | PN12-8HDR-L |
| Material | Copper, Copper, Nylon |
| Material - Insulation | Polyamide (PA), Nylon |
| Max Temp | 221 ?F |
| Mfr | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Package | Bulk |
| Package Quantity | 50 |
| Plating Material | Tin |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| Rated Voltage | 600V |
| RoHS Compliant | Yes |
| Series | Pan-Term?, Pan-Term PN1. |
| Stud Size | #8 |
| Stud/Tab Size | 8 Stud |
| Terminal Material | Copper |
| Terminal Type | Ring - Heavy Duty Ring,. |
| Termination | Crimp |
| Thickness | 0.050" (1.27mm) |
| Type | Ring Tongue |
| UNSPSC | 39121409 |
| UPC Code | 074983802890 |
| Use With | CT-1550, CT-1551, CT-23. |
| Volts | 600 V |
| Width | 0.31 in. |
| Width - Outer Edges | 0.310" (7.87mm) |
| Wire Gauge | 12-16 AWG |
| Wire Size | 16-12 AWG |
| Wire Size (AWG) | 12 AWG, 13 AWG, 14 AWG,. |
| Wire Strip Length | 0.281 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | PN12-8HDR-L | 1.12 | 1 | 74 | | PANDUIT | | 1.12 @ 50 |
 | Galco | PN12-8HDR-L-PNDT | 1.44 | 250 | 50 | | Panduit | | 1.44 @ 250 |
 | Platt.com | 0708842 | 1.69 | 1 | 200 | | Panduit | | 1.69 @ 50 |
| Digi-Key | 451671 | 1.7276 | 1 | 214 | | Panduit Corp | | 1.7276 @ 50 |
| Airline Hydraulics | PANDUIT PN12-8HDR-L | 1.73 | 1 | 50 | | Panduit Corp | | 1.73 @ 50 |
| us.rs-online.com | 70404443 | 1.81 | 250 | 50 | | Panduit | | 1.81 @ 250 |
 | Newark | 14AC2035 | 1.91 | 1 | 351 | | PANDUIT | | 1.91 @ 50 |
 | alldataresource.com | 10044706 | 77.19 | 1 | 50 | | Panduit | | 77.19 @ 50 |
 | Zoro | G2756384 | 80.81 | 1 | 50 | 148 | Panduit | | 80.81 @ 50 |
 | turtle.com | PAN PN12-8HDR-L | 169.38 | 1 | 50 | | Panduit | | 169.38 @ 50 |
 | gordonelectricsupply.com | PN12-8HDR-L | 377.73 | 1 | 50 | 12 | PANDUIT | | 377.73 @ 50 |
