Panduit PN14-10R-C

mpnPN14-10R-C
brandname: Panduit
manufacturername: Panduit

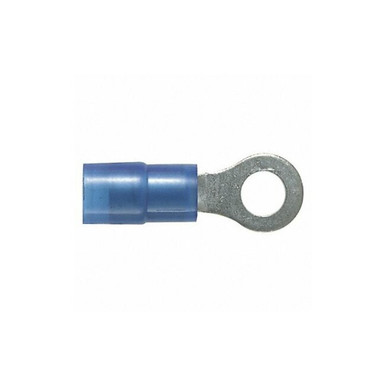

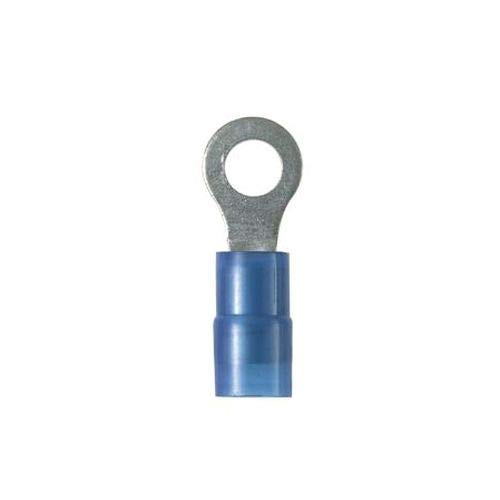

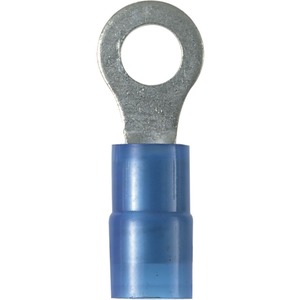

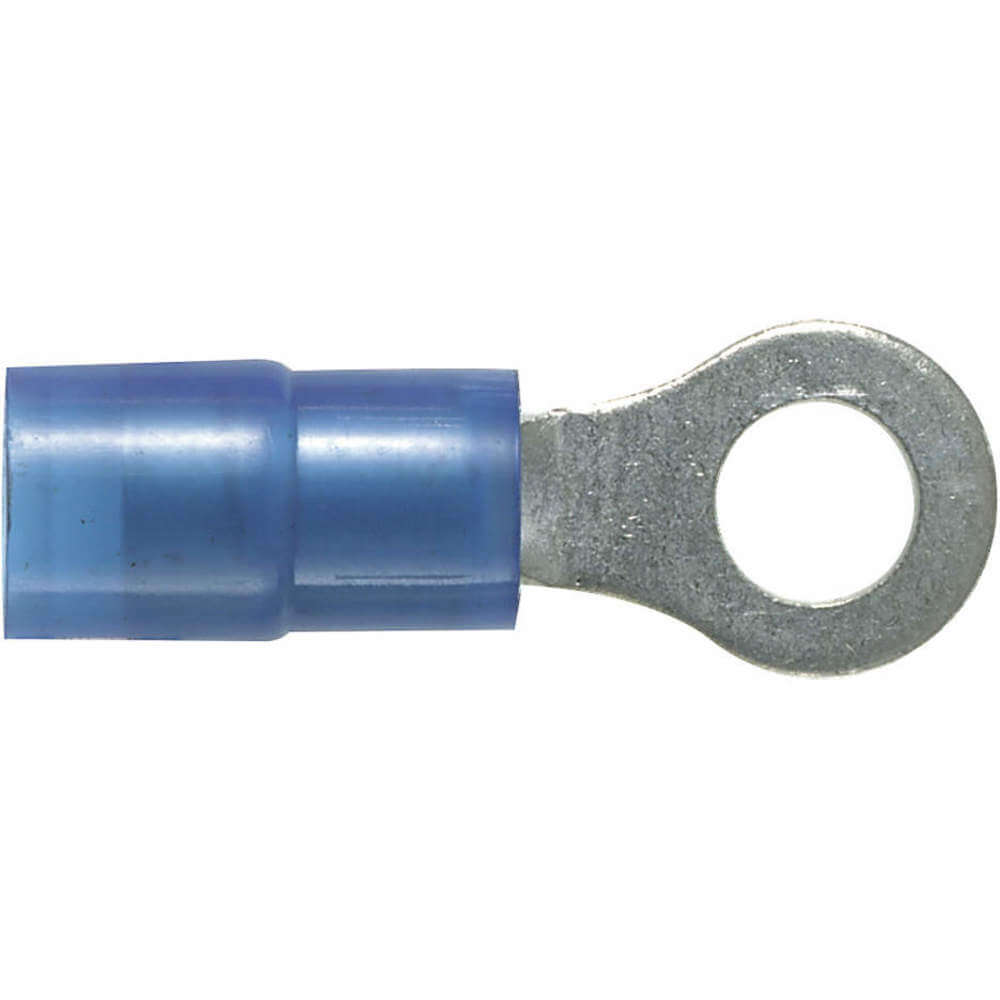

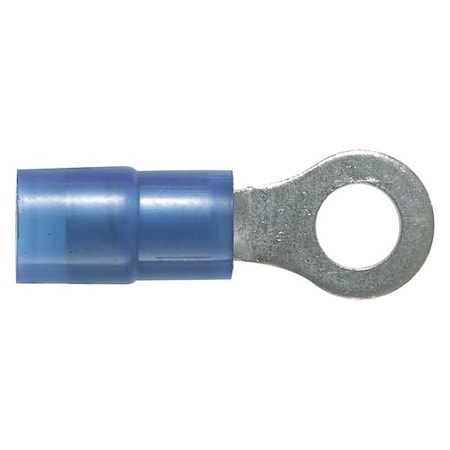

PANDUIT PN14-10R-C Ring Tongue Terminal, Pan-Term Series, 10, M5, 14 AWG, 2.5 mm?, Nylon (Polyamide)

Brand: Panduit
PartNumber: PN14-10R-C
Model: PN14-10R-C
Color: Blue
PackageQuantity: 1
Manufacturer: PANDUIT
Label: PANDUIT

Attributes

Key	Value
Allowable Gauge Range	18 - 14
Angle	Straight
Approval	Approval
Approvals	CSA, UL
AWG Range	#14
Barrel Inside Diameter	0.16 in
Barrel Style	Insulation Grip
Base Product Number	PN14
Brand	Pan-Term?, Panduit
Brand Name	Panduit
Category	Connectors, Interconnec.
Color	Blue
Color Family	Blue
Compatible Grainger Par.	376T26, 376U11, 376V66,.
Compatible Manufacturer.	CT-100, CT-1550, CT-155.
Connection Material	Copper
Connection Type	Crimp
Connector Details	1 x Ring Terminal
Connector Plating	Tin
Contact Finish	Tin
Contact Material	Copper
Contact Plating	Tin
Country of Origin	MX - Mexico
Country of Origin (subj.	Mexico
Current Stock	42
Description	CONN RING CIRC 14-16AWG.
Detailed Description	Ring Terminal Connector.
Digi-Key Part Number	298-15456-ND
ECCN	EAR99
Environmental Certifica.	RoHS
Environmentally Friendly	Yes
Family Series	Panduit Terminals, Pan-.
Features	-
Finish	Tin-Plated
For Wire Size	14 AWG, 16 AWG, 18 AWG
For Wire Sizes	18 AWG to 14 AWG
Green Environmental Att.	Does Not Contain PVC
Gross Weight	0.002 lbs
Hole Diameter	0.2 in
Insulated	Insulated
Insulation	Insulation, Insulated
Insulation Color	Blue, Insulation Color
Insulation Coverage	Partial Coverage
Insulation Diameter	0.080" ~ 0.162" (2.03mm.
Insulation Material	Nylon
Insulation Type	Nylon
International Shipping	No
Item	Ring Terminal
Item Number	PN14-10R-C
Length	0.9
Length - Overall	0.850" (21.59mm)
Manufacturer	Panduit Corp, Panduit
Manufacturer Part Number	PN14-10R-C
Manufacturer Product Nu.	PN14-10R-C
Manufacturer Standard L.	6 Weeks
Manufacturer Website Ad.	http://www.panduit.com
Material	Copper, Nylon - Insulat.
Material - Insulation	Polyamide (PA), Nylon
Max Temp	221 ?F
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Operating Tempe.	221 Degrees F
Maximum Voltage	600 V
Maximum Wire Size	14 AWG
Mfr	Panduit Corp
Minimum Operating Tempe.	221 Degrees F
Minimum Wire Size	18 AWG
Mounting Type	Free Hanging (In-Line)
Mpn	PN14-10R-C
Net Weight	0.002 lbs
Overall Length	0.85 ", 0.85 in
Overall Width	0.31 "
Package	Bulk
Package Quantity	100
Packaged Quantity	100
Packaging	100 Per Bottle
Plating Material	Tin
Product Name	PN Terminal Connector
Product Series	PN, Pan-Term Terminals
Product Status	Active
Product Type	Terminal Connector
Rated Voltage	600V
Ring Width Ranges	0.26 - 0.50 inches
RoHS Compliant	Yes
Seam	Grip Sleeved
Seam Style	Grip Sleeved
Series	Pan-Term PN14 Series, P.
SKU	ZO-G0059739
Special Features	Barrel, Internal Barrel.
Standards	CSA C22.2 No. 65, MS250.
Strip Length	1/4 in
Stud Size	Stud Size, #10, M5 (#10)
Stud/Tab Size	10 Stud
SubCategory	Electrical
Temperature Rating	Temperature Rating
Terminal Connection	Crimp
Terminal Material	Copper
Terminal Shape	Ring Terminal
Terminal Type	Ring, Terminal Type, Ci.
Termination	Crimp
Termination Style	Crimp
Thickness	0.030" (0.76mm)
Tongue Thickness	0.03 in
Tongue Width	0.31 in
Tongue Width - Wire Con.	0.31 in
Type	Ring Tongue
UL 94 Flammability Rati.	HB
UL Standards	UL 486A-486B
Unspsc	Unspsc
UNSPSC	39121409
UPC	074983800209
UPC Code	074983800209
UPC ID	UPC ID
Use With	CT-100, CT-1550, CT-155.
Volts	600 V
Volts AC	600
Width	0.3, 0.31 in.
Width - Outer Edges	0.310" (7.87mm)
Wire Gauge	14-16 AWG
Wire Range	18 to 14 AWG, Wire Range
Wire Size	18-14 AWG, 14-18 AWG
Wire Size (AWG)	14 AWG, 15 AWG, 16 AWG,.
Wire Strip Length	0.219 "

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Component Electronics	516B-10T	0.31	1	100		Panduit Corp		0.31 @ 100
Onlinecomponents.com	PN14-10R-C	0.73	1	200		PANDUIT		0.73 @ 100
Kelly Hayes	PN14-10R-C	0.75	1	100		Panduit		0.75 @ 100
French Gerleman	PANDPN1410RC	0.87	100	100		Panduit		0.87 @ 100
cbtcompany.com	PN14-10R-C	0.9	1	100		PANDUIT		0.9 @ 100
mecampbell.com	PANPN14-10R-C	0.96	100	100	151	Panduit		0.96 @ 100
Galco	PN14-10R-C-PNDT	0.96	100	200		Panduit	0.002	0.96 @ 100
Platt.com	0016139	1.06	1	700		Panduit		1.06 @ 100
Digi-Key	317901	1.1486	1	2640		Panduit Corp		1.1486 @ 100
Newark	14AC2036	1.17	1	197		PANDUIT		1.17 @ 100
alldataresource.com	200566	1.46	1	100		Panduit		1.46 @ 100
PCNation	4L7861	82.0	1	100		PANDUIT	1.0	82.0 @ 100
electricalparts.com	PN14-10R-C	82.7904	1	100		Panduit		82.7904 @ 100
Zoro	G0059739	94.79	1	111		Panduit	0.25	94.79 @ 100
gordonelectricsupply.com	PN14-10R-C	95.09	1	100	12	PANDUIT		95.09 @ 100
Carlton Bates Company	07498380020	98.0	1	100		PANDUIT		98.0 @ 100
jensentools.com	10017106	100.24	1	100		Panduit		100.24 @ 100
turtle.com	PAN PN14-10R-C	106.35	1	100		Panduit		106.35 @ 100
Airline Hydraulics	1976430	108.77	1	100		PANDUIT		108.77 @ 100
simsupply.com	ZO-G0059739	110.41	1	100		Panduit		110.41 @ 100
us.rs-online.com	70044379	125.83	1	100		Panduit		125.83 @ 100
Graybar	88200026	126.056	100	500		Panduit		126.056 @ 100
Raptor Supplies	AH8YBF	199.3687605	1	100		PANDUIT		199.3687605 @ 100
