Panduit PN14-14R-C

mpnPN14-14R-C
brandname: Panduit
manufacturername: Panduit

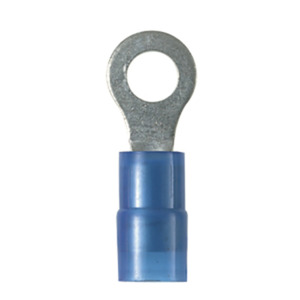

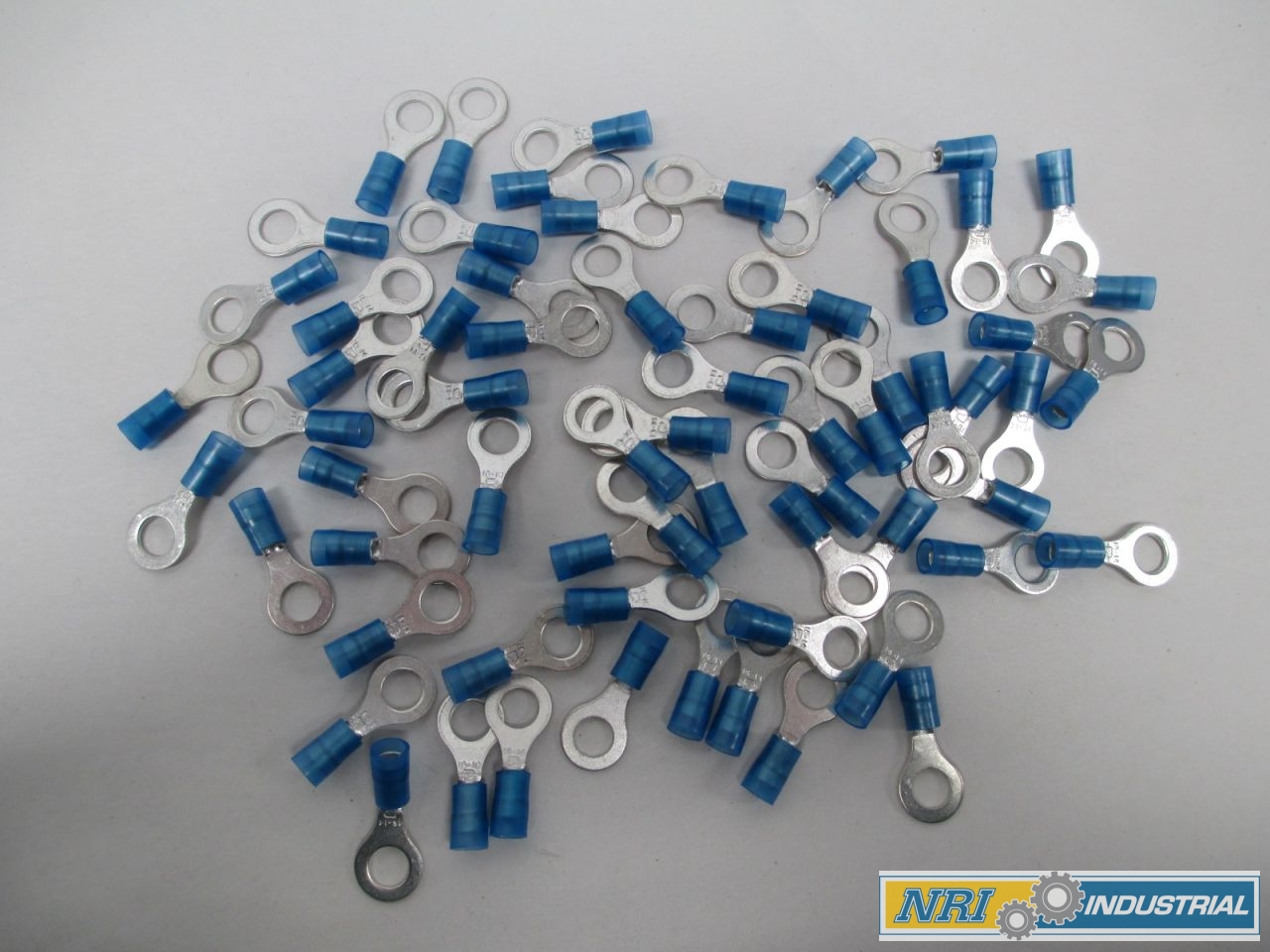

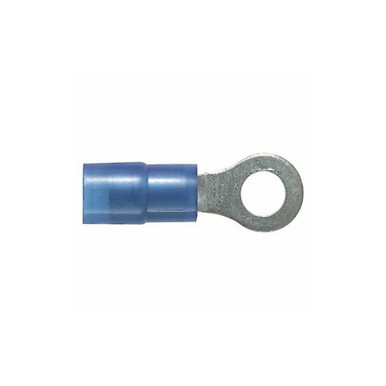

Panduit PN14-14R-C Ring Terminal, Nylon Insulated, 18 - 14 AWG, 1/4-Inch Stud Size, Blue (100-Pack)

Brand: Panduit
PartNumber: PN14-14R-C
Model: PN14-14R-C
Color: Blue
Size: 100-Pack
PackageQuantity: 1
Binding: Misc.
Manufacturer: Panduit
Label: Panduit

Attributes

Key	Value
Allowable Gauge Range	18 - 14
Alternate Part No.	644-PN14-14R-C
Approval	Approval
Approvals	CSA, UL
AWG Range	#14
Barrel Inside Diameter	0.16 in
Barrel Style	Insulation Grip
Barrel Type	Grip Sleeve
Brand	Pan-Term?, Panduit
Color	Blue
Color Family	Blue
Connection Material	Copper
Connection Type	Crimp
Contact Finish	Tin
Contact Material	Copper
Contact Plating	Tin
Country of Origin	MX - Mexico
Country of Origin (subj.	Mexico
Current Stock	42
ECCN	EAR99
Family Series	Panduit Terminals, Pan-.
Finish	Tin-Plated
For Wire Size	14 AWG, 16 AWG, 18 AWG
For Wire Sizes	18 AWG to 14 AWG
Gender	Female
Green Environmental Att.	Does Not Contain PVC
Gross Weight	0.005 lbs
Hole Diameter	0.27 in
Insulated	Insulated
Insulation	Insulation, Insulated
Insulation Color	Blue, Insulation Color
Insulation Colour	Blue
Insulation Coverage	Partial Coverage
Insulation Material	Nylon
Insulation Type	Nylon
International Shipping	No
Item	Ring Terminal
Item Number	PN14-14R-C
Length	26.7 mm
Manufacturer	Panduit
Manufacturer Part No.	PN14-14R-C
Manufacturer Part Number	PN14-14R-C
Material	Copper, Nylon
Max Temp	221 ?F
Max. Temp.	221 Degrees F
Max. Voltage	600 V
Maximum Operating Tempe.	221 Degrees F
Maximum Voltage	600V, 600 V
Maximum Wire Size	14 AWG
Minimum Operating Tempe.	221 Degrees F, 221 Deg.
Minimum Wire Size	18 AWG
Mounting Angle	Straight
Mounting Method	Wire
Mpn	PN14-14R-C
Net Weight	0.005 lbs
Overall Length	1.05 in
Package Quantity	100
Packaging	100 Per Bottle
Plating Material	Tin
Product	Ring Terminals
Product Category	Terminals
Product Series	Pan-Term Terminals
Rated Voltage	600V
Ring Width Ranges	0.26 - 0.50 inches
RoHS Compliant	Yes
Seam	Grip Sleeved
Seam Style	Grip Sleeved
SKU	ZO-G0059720
Special Features	Internal Barrel Serrati.
Standards	UL486A-486B, CSA C22.2 .
Strip Length	1/4 in
Stud Size	Stud Size, 1/4 in, 1/4 .
Stud/Tab Size	1/4 in
SubCategory	Electrical
Temperature Rating	Temperature Rating
Terminal Connection	Crimp
Terminal Material	Copper
Terminal Shape	Ring Terminal
Terminal Type	Ring, Terminal Type
Termination Style	Crimp
Tongue Thickness	0.03 in
Tongue Width	0.46 in
Tongue Width - Wire Con.	0.46 in
Type	Terminals
UL 94 Flammability Rati.	HB
UL Standards	UL 486A-486B
Unit Weight	140.614 g
UNSPSC	39121409
UPC	074983800223
UPC ID	UPC ID
Use With	CT-100, CT-1550, CT-155.
Volts	600 V
Volts AC	600
Width	0.46 in., 0.46 in
Wire Gauge	18-14
Wire Range	18 to 14 AWG, Wire Range
Wire Size	18-14 AWG
Wire Size (AWG)	14 AWG, 15 AWG, 16 AWG,.
Wire Strip Length	0.219 "

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Onlinecomponents.com	PN14-14R-C	0.8	1	100		PANDUIT		0.8 @ 100
Sager Electronics	PN14-14R-C	0.949	100	300		Panduit		0.949 @ 100
French Gerleman	PANDPN1414RC	0.95	100	100		Panduit		0.95 @ 100
cbtcompany.com	PN14-14R-C	0.99	1	100		PANDUIT		0.99 @ 100
mecampbell.com	PANPN14-14R-C	0.99	100	100	151	Panduit		0.99 @ 100
NEP Electronics	PN14-14R-C	1.0	5	100		Panduit		1.0 @ 100
Galco	PN14-14R-C-PNDT	1.01	100	400		Panduit	0.005	1.01 @ 100
Digi-Key	298-15460-ND	1.0593	1	100		Panduit Corp		1.0593 @ 100
Platt.com	0708934	1.16	1	100		Panduit		1.16 @ 100
Airline Hydraulics	PANDUIT PN14-14R-C	1.19	1	100		Panduit Corp		1.19 @ 100
Newark	28AC1169	1.28	100	100		PANDUIT		1.28 @ 100
us.rs-online.com	72260223	1.3	100	100		Panduit		1.3 @ 100
alldataresource.com	225947	1.46	1	100		Panduit		1.46 @ 100
Future Electronics	2108225	1.572	100	100		Panduit		1.572 @ 100
swatee.com	PN14-14R-C	1.82	1	100		Panduit		1.82 @ 100
NRI Industrial	D337238	60.01	1	100		PANDUIT		60.01 @ 100
electricalparts.com	PN14-14R-C	90.9552	1	100		Panduit		90.9552 @ 100
Carlton Bates Company	07498380022	98.0	1	100		PANDUIT		98.0 @ 100
Zoro	G0059720	100.19	1	100		Panduit	0.35	100.19 @ 100
gordonelectricsupply.com	PN14-14R-C	104.59	1	100	12	PANDUIT		104.59 @ 100
jensentools.com	10017108	110.12	1	100		Panduit		110.12 @ 100
turtle.com	PAN PN14-14R-C	116.84	1	100		Panduit		116.84 @ 100
simsupply.com	ZO-G0059720	117.43	1	100		Panduit		117.43 @ 100
Graybar	88200036	128.5648	100	100		Panduit		128.5648 @ 100
grainger.ca	WWG39AZ64	139.55071962	1	100		PANDUIT	0.35	139.55071962 @ 100
steinerelectric.com	6750	143.77	1	100		Panduit		143.77 @ 100
Raptor Supplies	AH8YBJ	201.726369	1	100		PANDUIT		201.726369 @ 100
