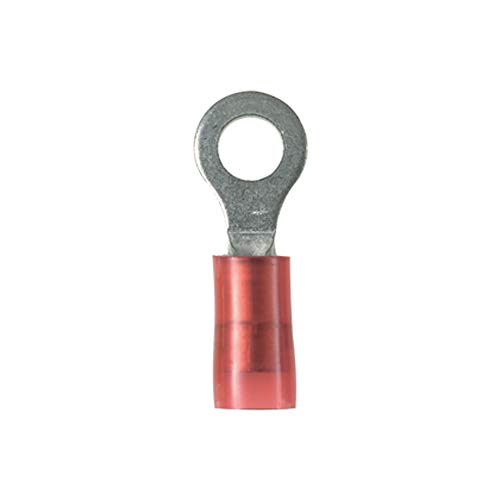

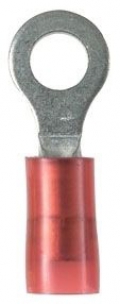

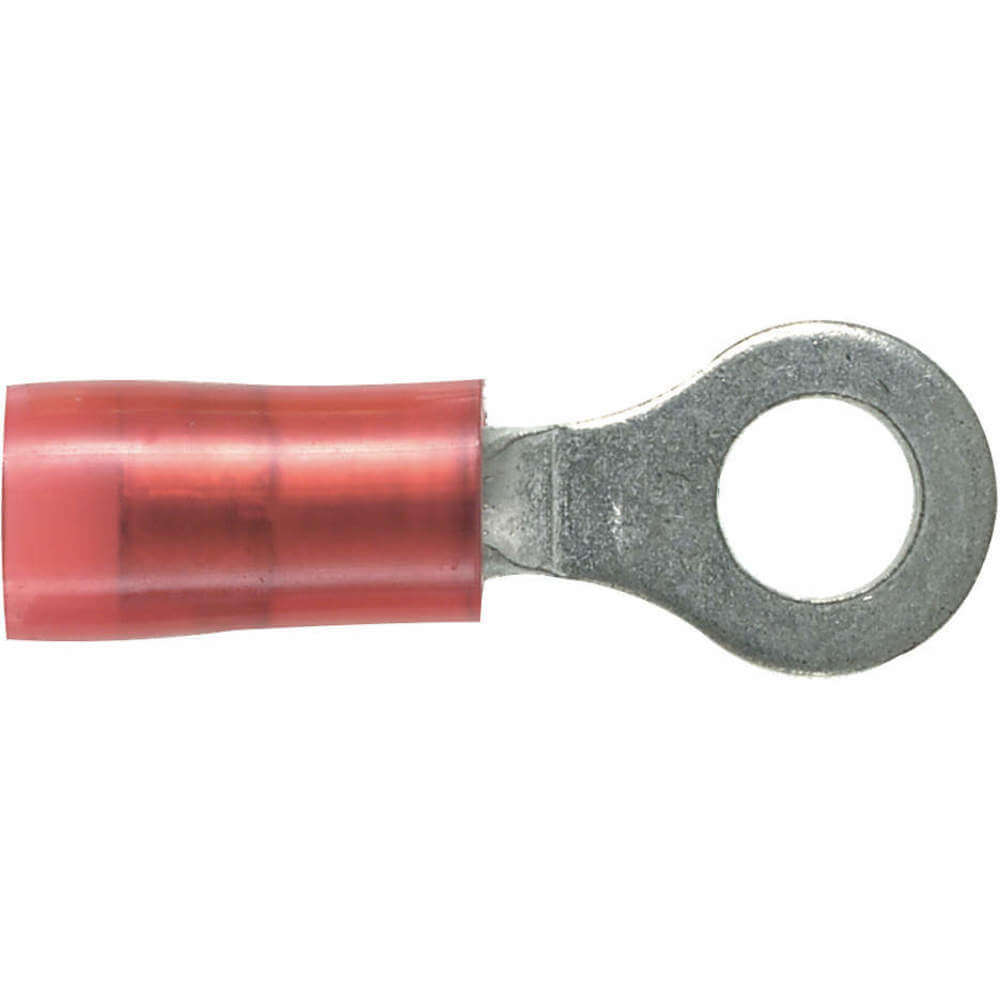

Panduit PN18-8R-M Ring Terminal, 22 - 18 AWG, #8 Stud Size, Nylon Insulated


- Brand: Panduit
- PartNumber: PN18-8R-M
- Model: PN18-8R-M
- Size: 1000-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
Key | Value |
---|
Allowable Gauge Range | 22 - 18 |
Approvals | CSA, UL |
ARRA Compliant | Y |
AWG Range | #18 |
Barrel Type | Grip Sleeve |
Base Material | copper |
Base Product Number | PN18 |
Brand | Pan-Term? |
Buy American Compliant | Y |
Category | Connectors, Interconnec. |
Color | red |
Color Code | red |
Color Family | red |
Colour | red |
Contact Finish | Tin |
Contact material | copper |
Contact Material | copper |
Contact plating | tinned |
Country of Origin | MX - Mexico |
Country of Origin (subj. | Unknown |
Country of Origin 2Digit | MX |
EAN | 00074983800056 |
ECCN | EAR99 |
Electrical mounting | crimped |
Family Series | Panduit Terminals, Pan-. |
Features | - |
Ferrule variant | insulated |
Finish | Tin-Plated |
Finish/Coating | Tin-Plated |
Flammability Rating | UL94-HB |
For Use With | CT-100, CT-1550, CT-155. |
Gross Weight | 0 lbs |
GTIN Package | 00074983800056 |
Hazardous Material Flag | N |
Insulated | insulated |
Insulation | insulated |
Insulation Color | Insulation Color |
Insulation Diameter | - |
Insulation Material | nylon |
Insulation Type | Insulation Type |
Insulator material | nylon |
Item Number | PN18-8R-M |
Length - Overall | 0.860" (21.84mm) |
Manufacturer | PANDUIT |
Manufacturer Part Number | PN18-8R-M |
Material | copper, nylon |
Material - Insulation | Polyamide (PA), Nylon |
Max Temp | 221 ?F |
Maximum Copper Conducto. | #18 |
Maximum Metric Conducto. | 1.5 |
Maximum Operating Tempe. | 105 |
Maximum Operating Tempe. | 221 |
Maximum Voltage (kV) | 0.6 |
Maximum Voltage (V) | 600 |
Maximum Wire Insulation. | 0.145 |
Maximum Wire Insulation. | 3.68 |
Maximum Wire Size (AWG) | #18 |
Mechanical mounting | for cable |
Mercury Content Indicat. | No |
Mfr | Panduit Corp |
Min Order Qty | 1,000 |
Min. Order UOM | Piece |
Minimum Copper Conducto. | #22 |
Minimum Metric Conducto. | 0.5 |
Minimum Wire Size (AWG) | #22 |
Mounting Type | Free Hanging (In-Line) |
Net Weight | 0 lbs |
Overall Length (In.) | 0.85 |
Overall Length (mm) | 21.6 |
Overall Width (In.) | 0.31 |
Overall Width (mm) | 7.9 |
Package | Bulk |
Package Quantity | 1,000 |
Packaging Type | Box |
Pallet Quantity | 660,000 |
Pallet Volume | 0.000000 |
Pallet Weight | 1,452.0000 |
Plating Material | Tin |
Product Segment | IEI |
Product Series | Pan-Term Terminals |
Product Status | Active |
Product Type | Ring Terminal |
Rated Voltage | 600V |
REACH Status | False |
Ring inside diameter | 4mm |
RoHS Compliant | Compliant, Yes |
Series | Pan-Term? |
Standard Carton Volume . | 0.0000 |
Standard Carton Weight . | 0.0000 |
Standard Package Volume. | 0.0482 |
Standard Package Weight. | 2.2000 |
Standards Met | cULus Listed 587H E5216. |
Std Ctn Qty | 0 |
Std Package Height In | 3.4 |
Std Package Height MM | 86.36 |
Std Package Length In | 7.1 |
Std Package Length MM | 180.34 |
Std Package Width In | 3.35 |
Std Package Width MM | 85.09 |
Std. Pkg. Qty. | 1000 |
Std. Pkg. UOM | Piece |
Stud Hole Size (In.) | #8 |
Stud Hole Size (mm) | 4 |
Stud Size | Stud Size, #8 |
Stud/Tab Size | 8 Stud |
Sub Brand | Pan-Term? |
Terminal Material | copper |
Terminal Type | ring, Circular |
Termination | Crimp |
Thickness | 0.032" (0.81mm) |
Tongue Thickness (In.) | 0.03 |
Tongue Thickness (mm) | 0.8 |
Tongue Width (In.) | 0.31 |
Tongue Width (mm) | 7.9 |
Type of tip | ring |
UNSPSC | 39121409 |
UOM EA PK | PK |
UPC | 07498380005 |
UPC Code | 074983800056 |
Use With | CT-100, CT-1550, CT-155. |
Volts | 600 V |
Volts AC | 600 |
Width | 0.31 in. |
Width - Outer Edges | 0.310" (7.87mm) |
Wire cross-section | 0.5...1mm |
Wire Gauge | 18-22 AWG |
Wire Range | Wire Range |
Wire size | 22AWG...18AWG |
Wire Size | 22-18 AWG |
Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
Wire Strip Length | 0.219 " |
Wire Strip Length (In.) | 7/32 |
Wire Strip Length (mm) | 5.6 |
