- mpnPV18-12R-LY
- brandname: Panduit
- manufacturername: Panduit

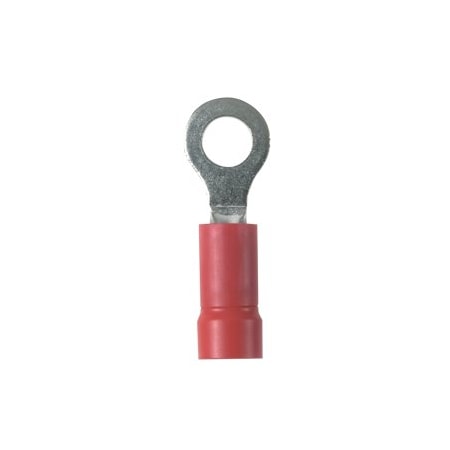

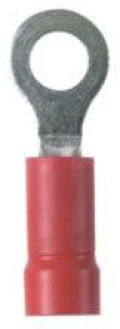

Panduit PV18-12R-LY Ring Terminal, Vinyl Insulated, 22 - 18 AWG, 1/2-Inch Stud Size, Funnel Entry, Red (50-Pack)
- Brand: Panduit
- PartNumber: PV18-12R-LY
- Model: PV18-12R-LY
- Color: Red
- Size: 50-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 22 - 18 |
| Angle | Straight |
| Approvals | CSA, UL |
| AWG Range | #18 |
| Base Product Number | PV18 |
| Brand | Pan-Term? |
| Category | Connectors, Interconnec. |
| Color | Red |
| Color Family | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Contact Plating | Tin |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| Description | CONN RING CIRC 18-22AWG. |
| Detailed Description | Ring Terminal Connector. |
| Digi-Key Part Number | 298-15680-ND |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam, Serrated T. |
| Finish | Tin-Plated |
| Gross Weight | 0 lbs |
| Insulated | Insulated |
| Insulation | Insulated |
| Insulation Diameter | 0.15 ", 0.150" (3.81mm) |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Item Number | PV18-12R-LY |
| Length - Overall | 1.420" (36.07mm) |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | PV18-12R-LY |
| Manufacturer Product Nu. | PV18-12R-LY |
| Manufacturer Standard L. | 3 Weeks |
| Material | Copper, Vinyl, Copper |
| Material - Insulation | Vinyl |
| Max Temp | 221 ?F |
| Mfr | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Overall Length | 1.42 " |
| Overall Width | 0.72 " |
| Package | Bulk |
| Package Quantity | 100, 50 |
| Plating Material | Tin |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| Rated Voltage | 600V |
| RoHS Compliant | Yes |
| Series | Pan-Term?, Pan-Term PV1. |
| Special Features | Brazed Seam, Barrel |
| Stud Size | 1/2 in., M12 (1/2), 1/2. |
| Stud/Tab Size | 1/2 Stud |
| Terminal Material | Copper |
| Terminal Type | Ring, Circular |
| Termination | Crimp |
| Thickness | 0.032" (0.81mm) |
| Type | Ring Tongue |
| UNSPSC | 39121409 |
| UPC Code | 074983120475 |
| Use With | CT-100, CT-1550, CT-155. |
| Volts | 600 V |
| Width | 0.72 in. |
| Width - Outer Edges | 0.720" (18.29mm) |
| Wire Gauge | 18-22 AWG |
| Wire Size | 22-18 AWG, 16-22 AWG |
| Wire Size (AWG) | 18 AWG, 19 AWG, 20 AWG,. |
| Wire Strip Length | 0.313 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | PV18-12R-LY | 1.15 | 1 | 115 | | PANDUIT | | 1.15 @ 50 |
 | Galco | PV18-12R-LY-PNDT | 1.4 | 250 | 50 | | Panduit | | 1.4 @ 250 |
| Future Electronics | 9021048 | 1.584 | 50 | 50 | | Panduit | | 1.584 @ 50 |
 | Platt.com | 0616490 | 1.64 | 1 | 50 | | Panduit | | 1.64 @ 50 |
| Airline Hydraulics | PANDUIT PV18-12R-LY | 1.69 | 1 | 50 | | Panduit Corp | | 1.69 @ 50 |
 | Digi-Key | 4568536 | 1.8304 | 1 | 50 | | Panduit Corp | | 1.8304 @ 50 |
 | alldataresource.com | 10044877 | 77.46 | 1 | 50 | | Panduit | | 77.46 @ 50 |
| us.rs-online.com | 70044929 | 81.23 | 1 | 50 | | Panduit | | 81.23 @ 50 |
 | Zoro | G2769036 | 84.97 | 1 | 50 | 15 | Panduit | | 84.97 @ 50 |
 | Newark | 72P2856 | 89.64 | 5 | 50 | | PANDUIT | | 89.64 @ 50 |
 | turtle.com | PAN PV18-12R-LY | 164.9 | 1 | 50 | | Panduit | | 164.9 @ 50 |
| Graybar | 25414827 | 237.0368 | 50 | 50 | | Panduit | | 237.0368 @ 50 |
 | gordonelectricsupply.com | PV18-12R-LY | 367.73 | 1 | 50 | 12 | PANDUIT | | 367.73 @ 50 |
