- mpnDNF10-250FIMB-D
- brandname: Panduit Corp
- manufacturername: Panduit Corp

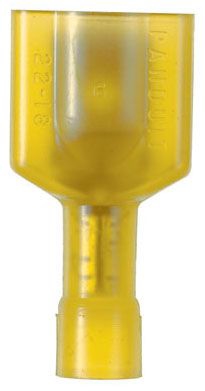

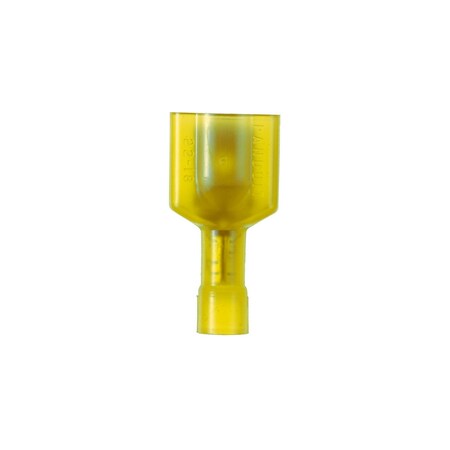

Panduit DNF10-250FIMB-D Male Disconnect, Nylon Fully Insulated Oversized Housing, Butted Seam, 12 - 10 AWG, .250 x .032" Tab Size


- Brand: Panduit
- PartNumber: DNF10-250FIMB-D
- Model: DNF10-250FIMB-D
- Size: 12 ? 10 AWG, .250 x .032 Tab Size
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
Key | Value |
---|
Alternate Part No. | 644-DNF10-250FIMB-D |
Approvals | CSA, UL |
Base Product Number | DNF10 |
Brand | Panduit |
Category | Connectors, Interconnec. |
Color | Yellow |
Contact Finish | Nickel |
Contact Material | Copper, Brass |
Contact Plating | Nickel |
Country of Origin (subj. | Unknown |
Family Series | Panduit Terminals, Pan-. |
Features | Serrated Termination |
Gender | Male |
Gross Weight | 0 lbs |
Insulated | Insulated |
Insulation | Fully Insulated, Insula. |
Insulation Diameter | 0.220" (5.59mm) |
Insulation Material | Nylon |
Item Number | DNF10-250FIMB-D |
Length | 24.4 mm |
Length - Overall | 0.960" (24.38mm) |
Manufacturer | Panduit |
Manufacturer Part No. | DNF10-250FIMB-D |
Manufacturer Part Number | DNF10-250FIMB-D |
Material | Copper, Brass |
Max Temp | 221 ?F |
Maximum Bundle Diameter | 6 mm |
Mfr | Panduit Corp |
Mounting Angle | Straight |
Mounting Method | Wire |
Mounting Type | Free Hanging (In-Line) |
Net Weight | 0 lbs |
Package | Bulk |
Package Quantity | 500 |
Part Status | Active |
Plating Material | Nickel |
Product | Disconnects |
Product Category | Terminals |
Product Series | Pan-Term Disconnects |
RoHS Compliant | Yes |
Series | Pan-Term? |
Stud/Tab Size | 6.3 mm x 0.8 mm |
Tab Length | - |
Tab Size | 0.25 x 0.032 " |
Tab Thickness | 0.032" (0.81mm) |
Tab Width | 0.250" (6.35mm) |
Terminal Material | Copper |
Terminal Type | Disconnect - Male, Stan. |
Termination | Crimp |
Termination Style | Crimp |
Unit Weight | 1.043 kg |
UPC Code | 07498378507 |
Volts | 600 V |
Wire Gauge | 12-10, 10-12 AWG |
Wire Size | 12-10 AWG |
Wire Size (AWG) | 10 AWG, 11 AWG, 12 AWG |
Wire Strip Length | 0.281 " |
