Panduit LAM3B250-12-1Y

B00B5P6K2G

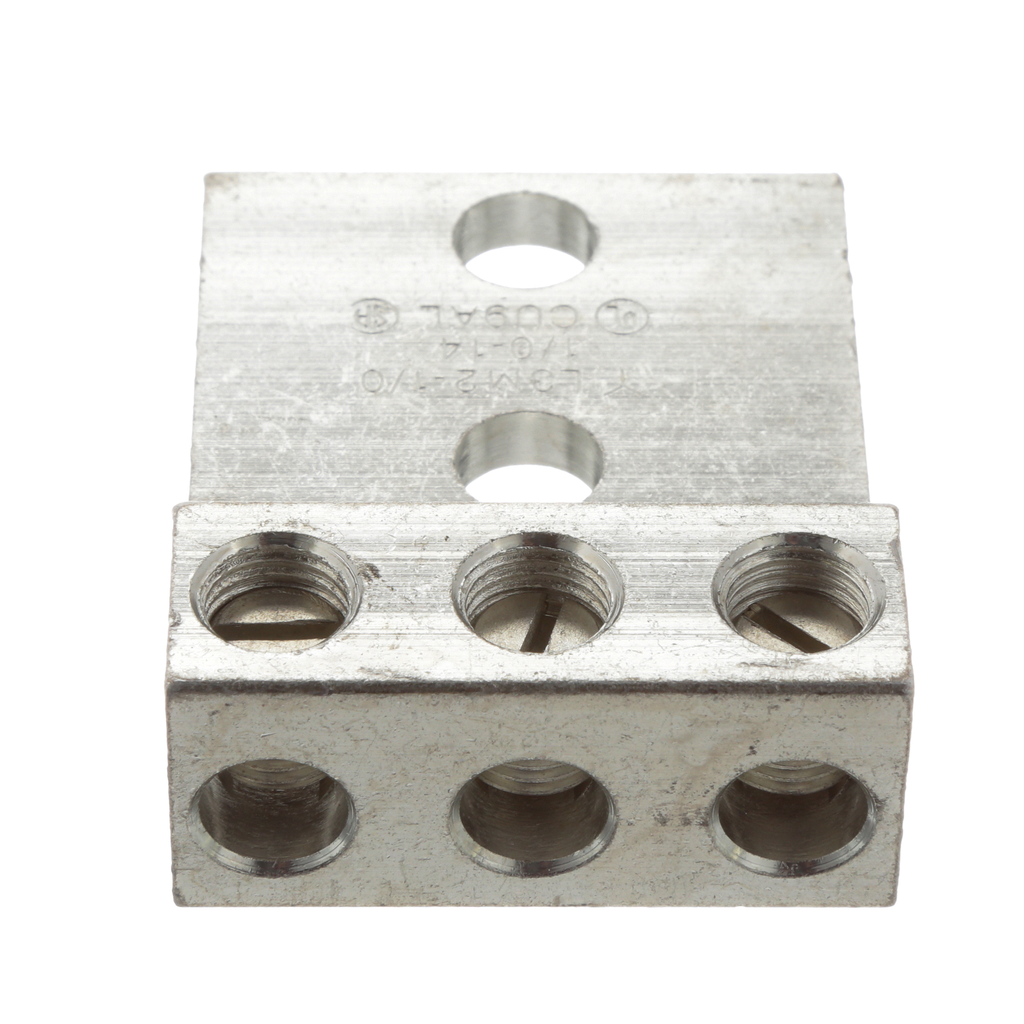

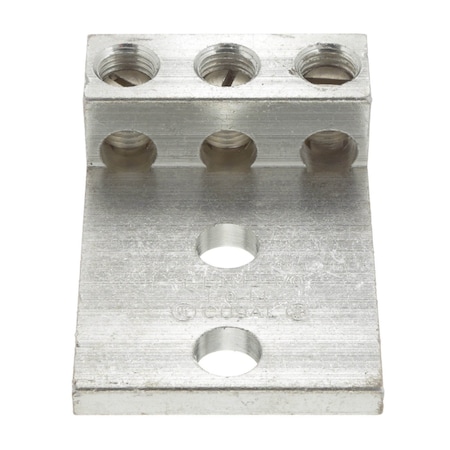

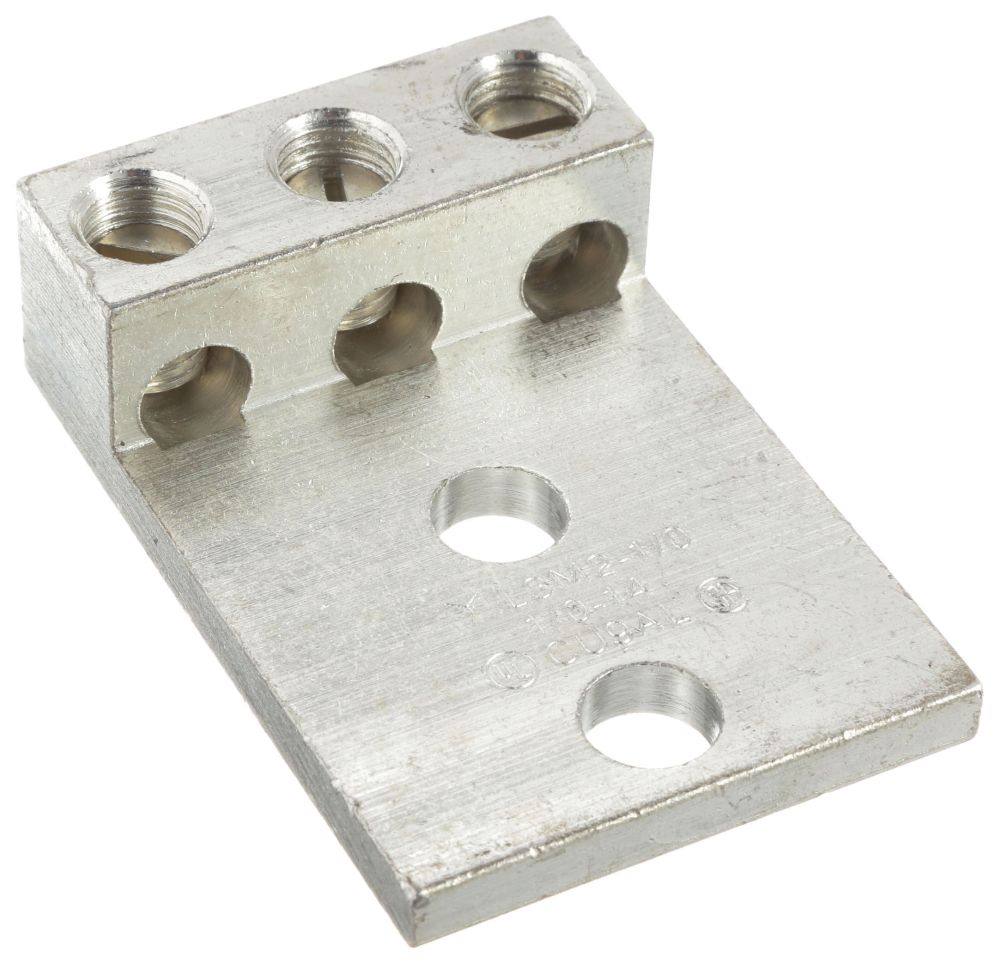

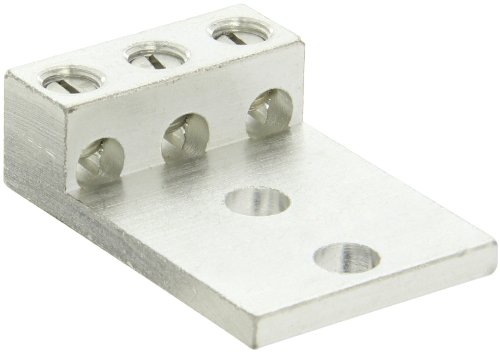

Panduit LAM3B250-12-1Y Three Barrel Lug, Two Hole, #6 AWG - 250 kcmil Conductor Size Range, 1/2" Stud Hole Size, 1.75" Stud Hole Spacing, 5/16" Hex Size, 0.31" Tongue Thickness, 2.82" Width, 1.19" Overall Height, 4.00" Overall Length

Panduit LAM3B250-12-1Y Three Barrel Lug, Two Hole, #6 AWG - 250 kcmil Conductor Size Range, 1/2" Stud Hole Size, 1.75" Stud Hole Spacing, 5/16" Hex Size, 0.31" Tongue Thickness, 2.82" Width, 1.19" Overall Height, 4.00" Overall Lengthzoom

Attributes

Key Value
Allowable Gauge Range6 - 250
ApprovalsCSA, UL
ARRA CompliantY
Base MaterialAluminum
Base Product NumberLAM3B250
BrandPanduit, Pan-Lug?
Brand NamePanduit
Buy American CompliantY
Catalog NumberLAM3B250-12-1Y
CategoryConnectors, Interconnec.
Color-
Color CodeNo
Conductor Size6 AWG-250 KCMIL
Contact FinishTin
Contact MaterialAluminum
Country of OriginUnited States, US - Uni.
Country Of OriginUnited States of America
Country of Origin (subj.United States
Country of Origin 2DigitUS
Degree of ProtectionNo
DescriptionCONN TERM RECT LUG 6 AW.
Detailed DescriptionTerminal Connector Rect.
Diameter - Barrel ID-
Diameter - Barrel OD-
Diameter - Ring ID-
Digi-Key Part Number298-14633-ND
Drive TypeNo
EAN00074983592920
ECCNEAR99
Energy Star FlagNo
Family SeriesPanduit Terminals, Pan-.
Features3 Cable Entries, With S.
FinishTin Plated, Tin-Plated
Finish/CoatingTin-Plated
Gross Weight0.665 lbs
GTIN00074983592920
GTIN Package00074983592920
Hazardous Material FlagN
Height1.2 in.
Hex Size0.3125
Hex Size (mm)7.9
InsulationNon-Insulated
Insulation MaterialNo
Item NameThree Barrel Lug
Item NumberLAM3B250-12-1Y
Item TypeMechanical Connectors -.
Length4 in
Length - Overall4.000" (101.60mm)
Lug Wire Size6 AWG-250 KCMIL
Made In AmericaYes
Made in USAYes
ManufacturerPanduit Corp, Panduit
Manufacturer NamePanduit
Manufacturer Part NumberLAM3B250-12-1Y
Manufacturer Product Nu.LAM3B250-12-1Y
Manufacturer Standard L.2 Weeks
MaterialAluminum, Tin-Plated Al.
Material/CompositionAluminum Alloy
Max Conductor Range250 kcmil
Maximum Voltage (V)600
Mercury Content Indicat.No
MfrPanduit Corp
Min Conductor Range6 AWG
Min Order Qty3
Min. Order UOMPiece
Mounting2-Hole
Mounting TypeFree Hanging (In-Line)
Net Weight0 lbs
No. of Holes2-Hole
NoteLAM3B250-12-1Y replaces.
Number of Conductors3
Number of Holes2, 2.0000
Overall Height (In.)1.2
Overall Height (mm)31.8
Overall Length (In.)4
Overall Length (mm)106.4
PackageBulk
Pallet Quantity0
Pallet Volume0.000000
Pallet Weight0.0000
Product SegmentIEI
Product SeriesPan-Lug Mechanical
Product StatusActive
Product TypeMechanical Connectors -.
Rated Voltage600V
REACH StatusFalse
RoHS CompliantCompliant, Yes
RoHS FlagYes
SeriesLAM3B
Size4 Inch Length x 2.82 In.
StandardUL Listed and CSA Certi.
Standard Carton Volume .0.0000
Standard Carton Weight .0.0000
Standard Package Volume.0.0485
Standard Package Weight.0.6650
StandardsUL Listed, CSA Certifie.
Standards MetUL Listed and CSA Certi.
Std Ctn Qty0
Std Package Height In3.4
Std Package Height MM86.36
Std Package Length In4.75
Std Package Length MM120.65
Std Package Width In3.4
Std Package Width MM86.36
Std. Pkg. Qty.1
Std. Pkg. UOMPiece
Stud Hole Size (In.)1/2
Stud Hole Spacing1.75 in., 1.75
Stud Hole Spacing (In.)1.75
Stud Hole Spacing (mm)45
Stud Size1/2 in, 1/2 Inch, 44563
Stud/Tab Size1/2 Stud
Sub BrandPan-Lug, Pan-Lug?
Tab Thickness0.310" (7.87mm)
Temperature Rating194 deg F (90 deg C)
Terminal StyleTwo Stud Holes
Terminal TypeLug, Grounding
TerminationScrew
Tongue Length (In.)3
Tongue Length (mm)76.2
Tongue Size3 Inch Length x 2.82 In.
Tongue Thickness (In.)0.31
Tongue Thickness (mm)7.9
Tongue TypeStraight Tongue
Tongue Width (In.)2.82
Tongue Width (mm)71.4
UNSPSC39121466, 39121405
UOM EA PKEA
UPC07498359292, 0749835929.
Voltage Rating600, 600 Volt
Width - Outer Edges2.820" (71.63mm)
Wire Gauge250MCM (kcmil) - 6 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
VericalLAM3B250-12-1Y16.342410Panduit16.342 @ 4
thumbzoomcbtcompany.comLAM3B250-12-1Y44.361In StockPANDUIT44.36 @ 1
thumbzoomFrench GerlemanPANDLAM3B250121Y50.121In StockPanduit50.12 @ 1
thumbzoomDigi-Key456423452.2111Panduit Corp52.21 @ 1
thumbzoommayerelectric.comPANLAM3B250121Y66.991In StockPANDUIT0.66566.99 @ 1
Monarch Electric1613069.78631In StockPanduit69.7863 @ 1
thumbzoomCarlton Bates Company0749835929272.951In StockPANDUIT72.95 @ 1
thumbzoomNewark72K882073.6816PANDUIT73.68 @ 1
thumbzoomGalcoLAM3B250-12-1Y-PNDT85.33In StockPanduit0.66585.3 @ 3
thumbzoomPlatt.com068127090.751In StockPanduit90.75 @ 1
thumbzoomZoroG279541791.861In Stock15Panduit91.86 @ 1
thumbzoomcrescentelectric.com90579097.091In StockPanduit97.09 @ 1
Airline HydraulicsPANDUIT LAM3B250-12-1Y102.81In StockPanduit Corp102.8 @ 1
thumbzoomgordonelectricsupply.comLAM3B250-12-1Y268.81In Stock12PANDUIT268.8 @ 1
thumbzoomturtle.comPAN LAM3B250-12-1Y10051.51In StockPanduit10051.5 @ 1
Graybar2506912411240.81281In StockPanduit11240.8128 @ 1
steinerelectric.com50595112761.971In StockPanduit12761.97 @ 1
