- mpnLCD6-14AF-L
- brandname: Panduit Corp
- manufacturername: Panduit Corp

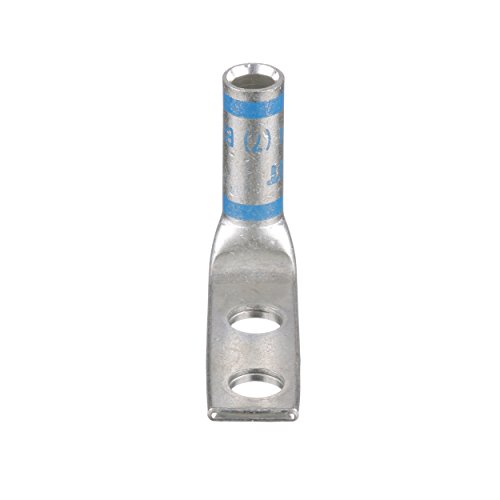

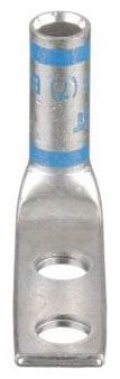

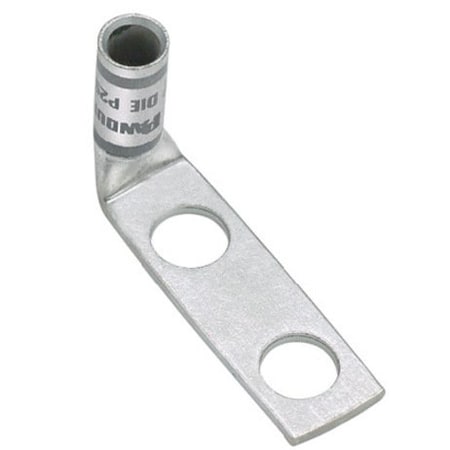

Panduit LCD6-14AF-L Code Conductor Copper Compression Lug, 2 Hole, #6 AWG, 1/4-Inch Stud, 90? Bent Angle
- Brand: Panduit
- PartNumber: LCD6-14AF-L
- Model: LCD6-14AF-L
- Color: Blue
- Size: 1/4" Stud Hole, .63" Hole Spacing
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Alternate Part No. | 644-LCD6-14AF-L |
| Angle | 90? |
| Approvals | CSA, UL |
| Base Product Number | LCD6 |
| Brand | Panduit, Pan-Lug? |
| Cable Size | 6 AWG |
| Catalog Number | LCD6-14AF-L |
| Category | Connectors, Interconnec. |
| Color | Blue |
| Color Code | Blue |
| Color Family | Blue |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Standard Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Diameter - Barrel ID | 0.220" (5.59mm) |
| Diameter - Barrel OD | 0.310" (7.87mm) |
| Diameter - Ring ID | 0.270" (6.86mm) |
| Die Color | Blue |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Gender | Male |
| Gross Weight | 1.48 lbs |
| GTIN | 00074983567669 |
| Insulation | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCD6-14AF-L |
| Item Type | Copper Compression Conn. |
| Length | 1.66" |
| Length - Overall | - |
| Lug Wire Size | 6 AWG |
| Made in USA | No |
| Manufacturer | Panduit |
| Manufacturer Part No. | LCD6-14AF-L |
| Manufacturer Part Number | LCD6-14AF-L |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 6 AWG |
| Mfr | Panduit Corp |
| Min Conductor Range | 6 AWG |
| Mounting | 44750 |
| Mounting Type | Free Hanging (In-Line),. |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 2 |
| Outer Diameter | 0.31 in. |
| Package | Bulk |
| Part Status | Active |
| Product | Lug Terminals |
| Product Category | Terminals |
| Product Series | Pan-Lug Compression |
| RoHS Compliant | Yes |
| Series | LCD6, Pan-Lug? |
| Size | #6 AWG Code |
| Special Features | Consult cable manufactu. |
| Standard | C22.2 No. 65-13, 486A-4. |
| Stud Hole Spacing | 0.63 in. |
| Stud Size | 1/4 in, 44565 |
| Stud/Tab Size | 1/4 Stud, 1/4 in |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.080" (2.03mm) |
| Terminal Style | Two Stud Holes |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Termination Style | Solder Lug |
| Unit Weight | 673.585 g |
| UNSPSC | 39121405 |
| UPC | 074983567669 |
| UPC Code | 074983567669 |
| Width | 0.48" |
| Width - Outer Edges | 0.480" (12.19mm) |
| Wire Gauge | 6 AWG, 6 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCD6-14AF-L | 4.66 | 1 | In Stock | | PANDUIT | | 4.66 @ 1 |
 | alldataresource.com | LCD6-14AF-L | 5.99 | 1 | In Stock | | Panduit | | 5.99 @ 1 |
| Digi-Key | 4566311 | 7.92 | 1000 | 193 | | Panduit Corp | | 7.92 @ 1 |
 | Zoro | G0777651 | 8.44 | 1 | In Stock | 49 | Panduit | 1.49 | 8.44 @ 1 |
 | Newark | 14AC0787 | 8.95 | 1 | In Stock | | PANDUIT | | 8.95 @ 1 |
| Onlinecomponents.com | LCD6-14AF-L | 10.23 | 1 | 25 | | PANDUIT | | 10.23 @ 1 |
 | Galco | LCD6-14AF-L-PNDT | 10.36 | 50 | In Stock | | Panduit | 1.48 | 10.36 @ 50 |
 | Platt.com | 0611655 | 11.02 | 1 | In Stock | | Panduit | | 11.02 @ 1 |
 | crescentelectric.com | 799624 | 11.79 | 1 | In Stock | | Panduit | | 11.79 @ 1 |
| Airline Hydraulics | PANDUIT LCD6-14AF-L | 12.48 | 1 | In Stock | | Panduit Corp | | 12.48 @ 1 |
| us.rs-online.com | 70994570 | 12.89 | 1 | In Stock | | Panduit | | 12.89 @ 1 |
 | swatee.com | LCD6-14AF-L | 13.26 | 1 | 49 | | Panduit | | 13.26 @ 1 |
 | gordonelectricsupply.com | LCD6-14AF-L | 545.0 | 1 | In Stock | 12 | PANDUIT | | 545.0 @ 1 |
 | jensentools.com | 10016434 | 569.04 | 1 | In Stock | | Panduit | | 569.04 @ 1 |
 | turtle.com | PAN LCD6-14AF-L | 1220.4 | 1 | In Stock | | Panduit | | 1220.4 @ 1 |
| Graybar | 25104243 | 1352.5008 | 1 | 57 | | Panduit | | 1352.5008 @ 1 |
