- mpnP14-10RHT6-M
- brandname: Panduit Corp
- manufacturername: Panduit Corp

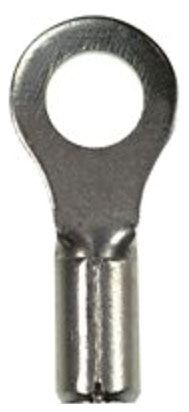

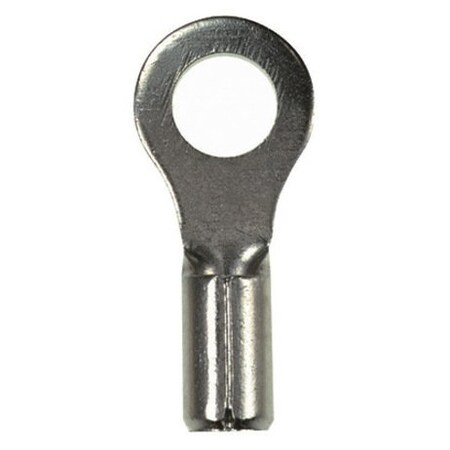

Panduit P14-10RHT6-M High Temperature Ring Terminal, 16 - 14 AWG, #10 Stud Size, Non-Insulated
- Brand: Panduit
- PartNumber: P14-10RHT6-M
- Model: P14-10RHT6-M
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Alternate Part No. | 644-P14-10RHT6-M |
| Alternate Parts | P14-10R |
| Approvals | CSA, UL |
| Base Product Number | P14 |
| Brand | Panduit |
| Category | Connectors, Interconnec. |
| Color | -, Metallic |
| Connection Material | Nickel-Plated Copper |
| Contact Finish | Nickel |
| Contact Material | Copper |
| Country of Origin (subj. | Mexico |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam, Serrated T. |
| Gross Weight | 0 lbs |
| Insulated | Non-Insulated |
| Insulation | Non-Insulated, Not Insu. |
| Insulation Color | Bare |
| Insulation Diameter | - |
| Insulation Type | Non-Insulated |
| Item | Ring Terminal |
| Item Number | P14-10RHT6-M |
| Lead Free Status / RoHS. | RoHS Compliant |
| Length | 0.71 in |
| Length - Overall | 0.710" (18.03mm) |
| Manufacturer | Panduit |
| Manufacturer Part No. | P14-10RHT6-M |
| Manufacturer Part Number | P14-10RHT6-M |
| Manufacturer Standard L. | 4 Weeks |
| Material | Copper |
| Material - Insulation | - |
| Max Temp | 650 ?F |
| Max. Voltage | 2000V |
| Mfr | Panduit Corp |
| Mounting Method | Cable |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Package | Bulk |
| Package Quantity | 1,000 |
| Packaging | Bulk Pack |
| Part Status | Active |
| Plating Material | Nickel |
| Product | Ring Terminals |
| Product Category | Terminals |
| Product Series | Pan-Term Terminals |
| RoHS Compliant | Yes |
| Seam | Brazed |
| Series | Pan-Term?, Pan-Term |
| Standard Package | 1,000 |
| Stud Size | #10 |
| Stud/Tab Size | 10 Stud, 10 |
| Terminal Material | Copper |
| Terminal Type | Ring, Circular |
| Termination | Crimp |
| Thickness | 0.030" (0.76mm) |
| Type | Terminals |
| Unit Weight | 843.682 g |
| Volts | 2,000 V |
| Width | 0.31 in |
| Width - Outer Edges | 0.310" (7.87mm) |
| Wire Gauge | 14-18 AWG, 18-14 |
| Wire Range | 16 to 14 AWG |
| Wire Size | 16-14 AWG |
| Wire Size (AWG) | 14 AWG, 15 AWG, 16 AWG |
| Wire Strip Length | 0.281 " |
