- mpnPN12-8HDR-D
- brandname: Panduit Corp
- manufacturername: Panduit Corp

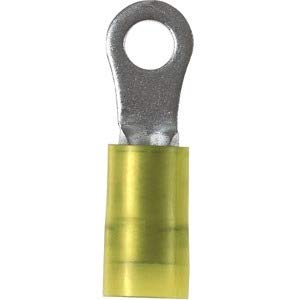

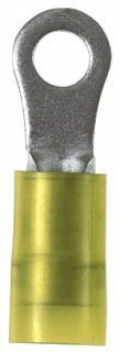

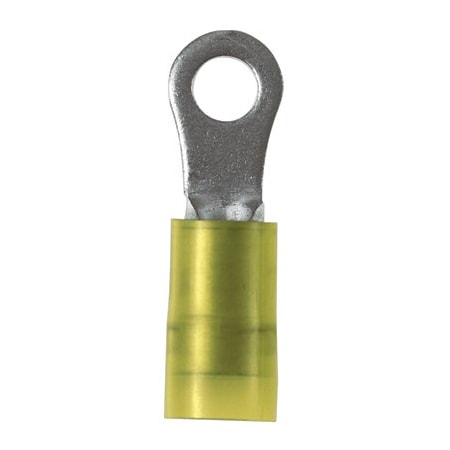

Panduit PCM-92
- Brand: Panduit
- PartNumber: PN12-8HDR-D
- Model: PN12-8HDR-D
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 16 - 12 |
| Approvals | CSA, UL |
| Barrel Type | Grip Sleeve |
| Base Product Number | PN12 |
| Category | Connectors, Interconnec. |
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin (subj. | Mexico |
| Description | CONN RING CIRC 12-16AWG. |
| Detailed Description | Ring Terminal Connector. |
| Digi-Key Part Number | 298-11951-ND |
| Family Series | Panduit Terminals, Pan-. |
| Features | Heavy Duty, Serrated Te. |
| Gross Weight | 0 lbs |
| Insulated | Insulated |
| Insulation | Insulated |
| Insulation Diameter | 0.120" ~ 0.225" (3.05mm. |
| Insulation Material | Nylon |
| Item Number | PN12-8HDR-D |
| Length - Overall | 1.060" (26.92mm) |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | PN12-8HDR-D |
| Manufacturer Product Nu. | PN12-8HDR-D |
| Manufacturer Standard L. | 6 Weeks |
| Material | Copper, Nylon |
| Material - Insulation | Polyamide (PA), Nylon |
| Max Temp | 221 ?F |
| Mfr | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Package | Bulk |
| Package Quantity | 500 |
| Plating Material | Tin |
| Product Series | Pan-Term Terminals |
| Product Status | Active |
| RoHS Compliant | Yes |
| Series | Pan-Term? |
| Stud Size | #8 |
| Stud/Tab Size | 8 Stud |
| Terminal Material | Copper |
| Terminal Type | Ring - Heavy Duty Ring,. |
| Termination | Crimp |
| Thickness | 0.050" (1.27mm) |
| Volts | 600 V |
| Width - Outer Edges | 0.310" (7.87mm) |
| Wire Gauge | 12-16 AWG |
| Wire Size | 16-12 AWG |
| Wire Size (AWG) | 12 AWG, 13 AWG, 14 AWG,. |
| Wire Strip Length | 0.281 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | PN12-8HDR-D | 0.438 | 1 | 295 | | PANDUIT | | 0.438 @ 1 |
 | Galco | PN12-8HDR-D-PNDT | 0.6 | 500 | 166 | | Panduit | | 0.6 @ 500 |
 | Platt.com | 0708839 | 0.71 | 1 | 166 | | Panduit | | 0.71 @ 1 |
| Airline Hydraulics | PANDUIT PN12-8HDR-D | 0.73 | 1 | 166 | | Panduit Corp | | 0.73 @ 1 |
 | NEP Electronics | PN12-8HDR-D | 0.75 | 7 | 477 | | Panduit | | 0.75 @ 7 |
 | Newark | 48AC9739 | 0.775 | 1 | 620 | | PANDUIT | | 0.775 @ 1 |
HDR.jpg) | Digi-Key | 451670 | 0.91 | 1 | 11681 | | Panduit Corp | | 0.91 @ 1 |
 | Carlton Bates Company | 07498380241 | 240.0 | 1 | 166 | | PANDUIT | | 240.0 @ 1 |
 | alldataresource.com | PAN-PN12-8HDR-D | 288.35 | 1 | In Stock | | Panduit | | 288.35 @ 1 |
 | gordonelectricsupply.com | PN12-8HDR-D | 317.5 | 1 | 166 | 12 | PANDUIT | | 317.5 @ 1 |
 | Zoro | G2758947 | 337.85 | 1 | 166 | 148 | Panduit | | 337.85 @ 1 |
 | turtle.com | PAN PN12-8HDR-D | 708.94 | 1 | 166 | | Panduit | | 708.94 @ 1 |
