Parker 0.88DXPSR03.00

B01LZTYAL5

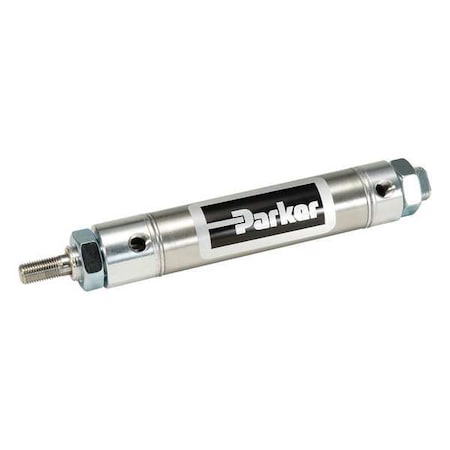

Round Air Cylin, 7/8InBore, 3InStroke

Round Air Cylin, 7/8InBore, 3InStrokezoom

Attributes

Key Value
Air Cylinder Bore Dia.7/8 in
Air Cylinder MountNose and Pivot
Air Cylinder TypeRound Body
Body Material304 stainless steel
Bore Dia.7/8 in
Country of Origin (subj.United States
Cushion TypeNone
Cylinder ActionDouble Acting
Cylinder TypeRound Non-Repairable
Cylinder Type:Non-Repairable Cylinder
Dimension A1/2 in
Dimension B0.624 in
Dimension Cb0.38 in
Dimension Cc0.25 in
Dimension Cd0.25 in
Dimension E0.38 in
Dimension Kk1/4"-28 UNF
Dimension L0.34 in
Dimension N15/8"-18
End Cap MaterialAluminum
FeaturesNon-Switch Ready
FinishSilver
ItemAir Cylinder
Magnetic PistonNo
Max. Pressure250 psi
Maximum Stroke:3 inch
MountNose and Pivot
Nose Mount Thread5/8"-18
Overall Length7.3 in
Piston MaterialAluminum
Piston Rod MaterialStainless Steel
Pivot Hole Dia.0.251 in
Port Size1/8 in FNPT
Rod Dia.0.25 in
Rod End Style:Standard Rod End (Male)
Rod Thread Length0.5 in
Rod Thread Size1/4-28 UNF
Single Acting/Double Ac.Double Acting
Stroke3 in
Temp. Range-10 Degrees to 165 Deg.
Tube MaterialStainless Steel
UOM:EACH

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWilson0.88DXPSR03.0042.041In StockParker - Pneumatic Division42.04 @ 1
thumbzoomZoroG618945244.181In Stock26Parker0.3944.18 @ 1
thumbzoomsustainablesupply.comC168525454.681In StockParker0.3954.68 @ 1
thumbzoomRaptor SuppliesAJ2EDV85.4325811In StockPARKER85.432581 @ 1
