Parker 1.75NSRM03.00

B074JDGNHW

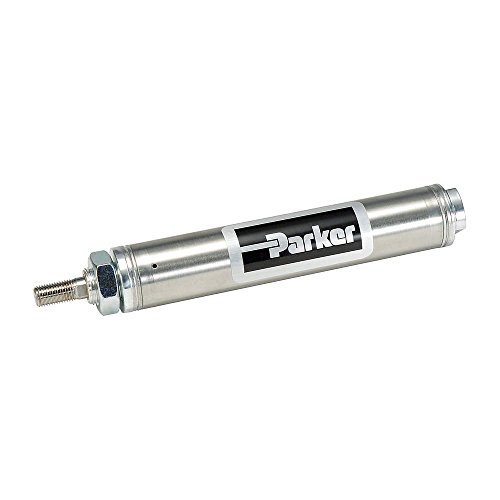

Parker 1.75NSRM03.00 1-3/4" Bore Diameter with 3" Stroke Stainless Steel, Nose Mounted Air Cylinder

Parker 1.75NSRM03.00 1-3/4" Bore Diameter with 3" Stroke Stainless Steel, Nose Mounted Air Cylinderzoom

Attributes

Key Value
Air Cylinder Bore Dia.1 3/4 in
Air Cylinder MountNose
Air Cylinder TypeRound Body
Body MaterialStainless steel
Bore Dia.1 3/4 in
Country of Origin (subj.United States
Cushion TypeNone
Cylinder ActionSingle Acting
Cylinder TypeRound Non-Repairable
Dimension A22/25 in
Dimension B1.031 in
Dimension C0.38 in
Dimension Cc0.5 in
Dimension D0.4375 in
Dimension E1.25 in
Dimension J0.25 in
Dimension Kk1/2"-20 UNF
Dimension N11"-14
End Cap MaterialAluminum
FeaturesSwitch Ready
FinishSilver
ItemAir Cylinder
Magnetic PistonYes
Max. Pressure250 psi
MountNose
Nose Mount Thread1"-14
Overall Length10 in
Piston MaterialAluminum
Piston Rod MaterialChrome Plated Steel
Port Size1/4 in FNPT
Rod Dia.0.5 in
Rod Thread Length0.88 in
Rod Thread Size1/2-20 UNF
Single Acting/Double Ac.Single Acting
Spring Retraction Force11 lb
Stroke3 in
Temp. Range14 Degrees to 140 Degr.
Tube MaterialStainless steel

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG608809249.51In Stock26Parker1.9449.5 @ 1
thumbzoomWilson1.75NSRM03.0098.231In StockParker - Pneumatic Division98.23 @ 1
thumbzoomsustainablesupply.comC2680634103.241In StockParker1.94103.24 @ 1
thumbzoomRaptor SuppliesAJ2EMC158.5966591In StockPARKER158.596659 @ 1
