mpn:
brand:
manufacturer:
MPN:
Weight:
1.0
Weight:
0.01 LB
Preferred Price:
6.07
Price:
6.07
Min Simple Price:
2.56
Absolute Min Price:
4.69
Min Price:
4.69
Dimensions:
[2.0, 1.0, 1.0]
qty:
29
simpleSku:
NDUyNQ:::4 F5OLO-S
sku:
NDUyNQ::2S:4 F5OLO-S@y0
condition:
11
seller:
MRO Stop
amzMan:
parker
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | Air |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape, Specific Pipe Fitting Shape | Connector |
| Compatible Fitting Brands, Series | Seal-Lok |
| Compatible Tube Hardness | 72 HRB |
| Compatible Tube Material | Alloy Steel, Copper, Monel Nickel Alloy, Stainless Steel, Steel |
| Compatible Tube Wall Thickness | 0.083 in |
| Configuration Sub-Type | Straight Thread Connector ORFS / SAE-ORB |
| Connection Type | Male O-Ring Face Seal x Male SAE-ORB |
| Country of Origin (subject to change) | China |
| End 1 | 1/4 Inch |
| End 2 Type | UN/UNF-2A |
| End Connection Type | Threaded |
| Finish/Coating | Zinc Nickel-Plated |
| Fitting Body Material | Zinc Nickel-Plated Steel |
| Fitting Connection Type, Pipe Fitting Connection Type | SAE-ORB x ORFS |
| Fitting Material, Material | Steel |
| Fitting Pipe Size, Fitting Side A Tube Outer Diameter, Fitting Side B Pipe Size, For Tube OD, For Tube Outside Diameter, Pipe Size, Tube Size | 1/4 in |
| Fitting Side A Connection Type | Male O-Ring Face Seal |
| Fitting Side B Connection Type | Male SAE-ORB |
| Hex Size | 5/8 in |

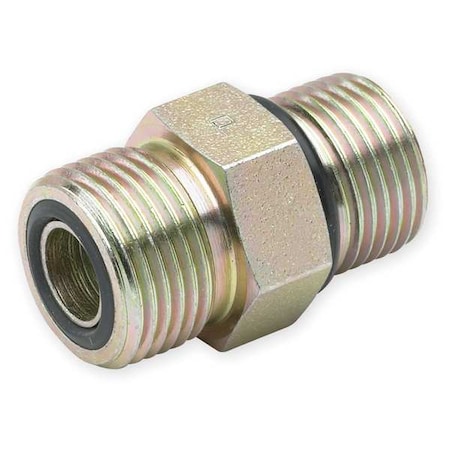

| Item | Straight Thread Connector |
| Max. Pressure | 9200 psi |
| Maximum Operating Pressure | 9,200 psi |
| Maximum Operating Temperature | 500 Degrees F |
| Minimum Operating Temperature | 65 Degrees F |
| Overall Length | 1 1/8 in |
| Parker Division | Tube Fitting |
| Resistance Properties | Vibration-Resistant |
| Series | ORFS |
| Specific Fitting Shape | Straight Adapter |
| Standards | SAE J1453 |
| Sub-Category | Connectors |
| System of Measurement | Imperial |
| Temp. Range | -30 to 250 Degrees F |
| Thread Size B, Threading Size | 7/16-20 |
| Tube Fitting Material | Zinc Plated Steel |
| Tube Fitting/Adapter Type | ORFS, Seal-Lok O-Ring Face Seal |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| MRO Stop | 276049967 | 2.56 | 2.56 | 1 | 1 | Parker | 2.56 @ Qty: 1+ | |||
 | Wilson | 4 F5OLO-S | 3.37 | 3.37 | 1 | 29 | Parker - Tube Fittings Division | 3.37 @ Qty: 1+ | ||
 | Zoro | G1756867 | 4.28 | 4.28 | 1 | 11 | Parker | 0.07 | 4.28 @ Qty: 1+ | |
| Airline Hydraulics | PARKER 4 F5OLO-S | 5.18 | 5.18 | 1 | 29 | Parker | 5.18 @ Qty: 1+ | |||
 | bscsource.com | 93462018 | 5.49 | 5.49 | 1 | 29 | Parker | 5.49 @ Qty: 1+ | ||
 | Raptor Supplies | AB4DRZ | 7.866144 | 7.866144 | 1 | 29 | PARKER | 7.866144 @ Qty: 1+ | ||
| AmazonSC | B000R8BT2S | 10.2 | 10.2 | 1 | 29 | Parker | 10.2 @ Qty: 1+ | |||
 | National Supply Network | 93462018 | 16.22 | 16.22 | 1 | 29 | Parker | 16.22 @ Qty: 1+ |
