Parker H8-63-T16

B0115GFBL0

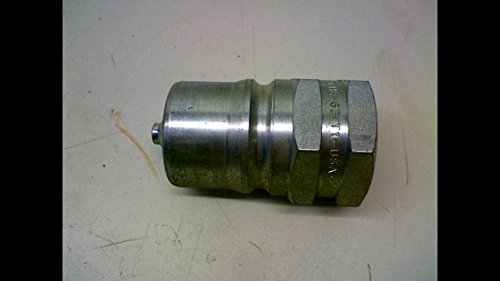

Parker H8-63-T16 Quick Coupling Male Nipple H8-63-T16

Parker H8-63-T16 Quick Coupling Male Nipple H8-63-T16zoom

Attributes

Key Value
Bearing MaterialStainless Steel
Body MaterialSteel
Connection TypeORB
Country of Origin (subj.United States
Coupler Body MaterialSteel
Coupler Body Size1"
Coupler Connection TypeORB
Coupler FinishZinc Plated
Coupler Flow Rate50.0 gpm
Coupler Interchange TypeISO 7241-1 Series B
Coupler Thread Size1-5/16"-12
Coupler/Nipple/Shell:Nipple
Coupling ComponentPlug
Coupling Locking TypeBall
Coupling Size1 in
Finish/CoatingPlain
Fitting TypeFemale ORB
For Use WithISO 7241-1 Series B Cou.
Hansen Interchange8-KP16
Hose Fitting GenderFemale
IncludesHeavy Duty Steel Nipple.
Includes BearingYes
Includes Shut OffYes
Includes ValveYes
ItemHydraulic Quick Connect.
Locking MechanismBall
Material:Steel
Max Pressure Range:2000 to 2999 PSI ( 138 .
Max Pressure:2000 PSI (140 bar)
Max. Flow Rate189 lpm
Max. Outside Dia.1 7/8 in
Max. Pressure2000 psi
Max. Working Pressure @.2,000 psi
Operating Temp. Range-40 Degrees to 250 Deg.
Overall Length2 29/32 in
Parker Group:Fluid Connector
Parker InterchangeH8-63-T16
Quick Coupler TypeHydraulic Coupler Nipple
Safeway InterchangeS101-8-16
Seal MaterialNitrile
Series60
Series:60
Shut Offdouble
Snap-Tite Interchange72N16-16EF
StandardsISO 7241-1 Series B
Thread 1 Type:SAE
Thread 1:16 SAE
Thread Size1-5/16"-12
Valve DesignPoppet
Valve TypePoppet

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMisumi USAH8-63-T1660.631In StockParker Hannifin60.63 @ 1
MRO Stop964400822172.861In StockParker72.86 @ 1
thumbzoomWilsonH8-63-T1688.571In StockParker - Quick Coupling Division88.57 @ 1
Airline HydraulicsPARKER H8-63-T1694.341In StockParker94.34 @ 1
thumbzoomZoroG469244197.191In StockParker0.797.19 @ 1
thumbzoombscsource.comH863T16114.991In StockParker114.99 @ 1
thumbzoomGuardian71898787121.51In StockParker121.5 @ 1
thumbzoomNational Supply Network71898787135.961In StockParker135.96 @ 1
thumbzoomRaptor SuppliesAC4XQW152.50710151In StockPARKER152.5071015 @ 1
