Parker VS271NTA-4-4

B002E986OW

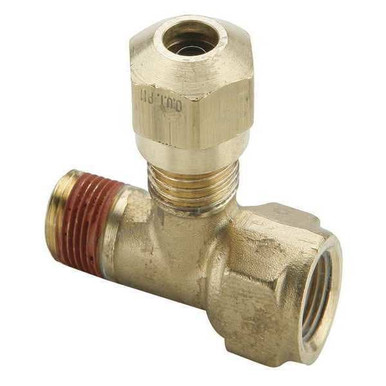

Parker VS271NTA-4-4 Air Brake D.O.T. Compression Style Fitting for J844 Tubing-NTA, Tube to Pipe, Brass, Compression and Male Pipe Run Tee, 1/4"

Parker VS271NTA-4-4 Air Brake D.O.T. Compression Style Fitting for J844 Tubing-NTA, Tube to Pipe, Brass, Compression and Male Pipe Run Tee, 1/4"zoom

Attributes

Key Value
ApplicationAir, Potable Water
Basic Pipe Fitting Mate.Metal
Basic Pipe Fitting ShapeTee
BrandParker
ColorBrass
Compatible Tube MaterialNylon, Stainless Steel
ComplianceSAE J246, SAE J1131, DO.
Configuration Sub-TypeMale Run Tee
ConnectionTube x Tube x MNPT
Connection TypeCompression x MNPT x Co.
Country of Origin (subj.United States
Current Stock36
End Connection TypeCompression, Threaded
Fitting Body MaterialBrass
Fitting MaterialBrass
Fitting Pipe Size1/4 in
Fitting ShapeTee
Fitting Side A Connecti.Compression
Fitting Side A Tube Out.1/4 in
Fitting Side B Connecti.MNPT
Fitting Side B Pipe Size1/4 in
Fitting Side C Connecti.Compression
Fitting Side C Tube Out.1/4 in
For Tube OD1/4 in
For Tube Outside Diamet.1/4 in
Inch/MetricInch
Includes Pre-Applied Th.Yes
International ShippingNo
ItemMale Run Tee
Length0.95 in
Length (Straight Wirewa.0.95 in
MaterialBrass
Maximum Operating Press.150 psi
Maximum Operating Tempe.200 Degrees F
Minimum Operating Tempe.40 Degrees F
MpnVS271NTA-4-4
Outer Diameter 11/4 Inch
Overall Length1 7/8 in
Parker DivisionFluid Systems Connector.
Pipe Fitting Connection.Tube x Tube x MNPT
Pipe Size1/4 in
Pipe Size (Fittings)1/4"
Pressure (PSI)150
Pressure RangeUp to 150 PSI
Prop 65WARNING: Cancer and Rep.
SAE ReferenceSAE 100424 BA
SeriesAir Brake-NTA
SKUZO-G4002162
Specific ApplicationAir Brakes, Air Tanks, .
Specific Fitting ShapeAdapter Tee
Specific Pipe Fitting S.Run Tee
StandardsDOT FMVSS 571.106, SAE .
Temp. Range-40 Degrees to 200 Deg.
Thread 11/4 NPT
Thread Sealant TypeVibra-Seal(R) 516
Thread Size7/16"-24
Thread Size A7/16-24
Thread Size B7/16-24
Threading Size7/16-24 x 7/16-24
Tube Size1/4 in
TypeCompression

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG400216210.18136Parker0.1210.18 @ 1
thumbzoomRaptor SuppliesAA3BCY17.03958751In StockPARKER17.0395875 @ 1
thumbzoomsimsupply.comZO-G400216218.391In StockParker18.39 @ 1
MRO Stop27101260726.681In StockParker26.68 @ 1
thumbzoombscsource.comVS271NTA4427.091In StockParker27.09 @ 1
thumbzoomWilsonVS271NTA-4-432.441In StockParker - Fluid System Connectors Division32.44 @ 1
thumbzoomGuardian8787272734.341In StockParker34.34 @ 1
Airline HydraulicsPARKER VS271NTA-4-434.891In StockParker34.89 @ 1
thumbzoomNational Supply Network8787272744.051In StockParker44.05 @ 1
thumbzoomRadwellVS271NTA-4-448.010In StockPARKER FLUID POWER DIVISION48.0 @ 10
