| Agency Compliance, Base Height (mm), Base Width (mm), Dimension G, Dimension L, Dimension M, Dimension P, Dimension X, Dimension Y, Min. Surface Hardness, Mounting End Dia. (In.), Mounting End Dia. (mm), Overall Height (mm), Thread Length (In.), Thread Length (mm), Travel Length (mm) | - |
| Base Height (In.) | 0.313 in |
| Base Width (In.), Dimension B | 2.5 in |
| Bolt Size | 0.312 in |
| Country of Origin (subject to change) | United States |
| Dia. Tolerance Max. | 1.25 in |
| Dia. Tolerance Min. | 1.249 in |
| Dimension C | 0.563 in |
| Dimension E | 1.875 in |
| Dimension F, Mounting Hole Size | 0.343 in |
| Finish | Clear |
| For Use With | Simplicity FrelonGOLD(TM) Lined Bearings |

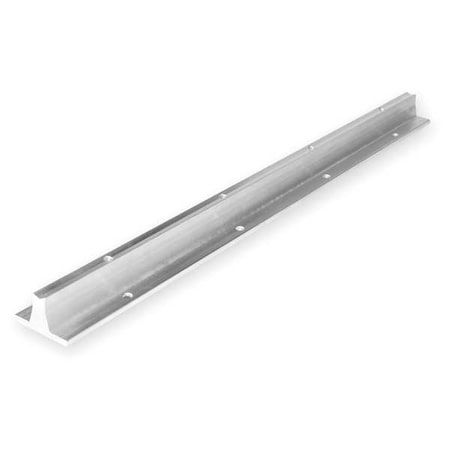

| Item | Pre-Drilled Linear Support Rail |
| Length, Length (Straight Wireway), Travel Length (In.) | 24 in |
| Material | Aluminum |
| Mounting Hole Center to Center | 6 in |
| Mounting Hole from Shaft End | 3 in |
| Mounting Holes | Clean |
| Mounting Surface to Shaft Center (In.) | 2.125 in |
| Overall Height (In.) | 2.75 in |
| Shaft Dia. | 1 1/4 in |
| System of Measurement | Inch |
| Temp. Range (F) | 0 - 400 |
| Thread Size | 0.312"-18 x 1.750 in |
