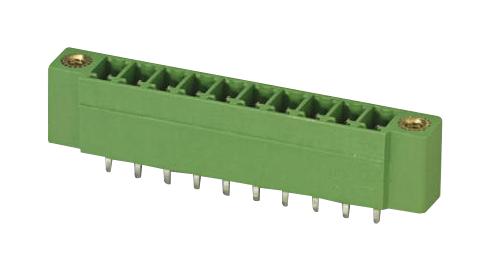

Phoenix Contact 1830732 Connector Headers and PCB Receptacles

Phoenix Contact 1830732 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Alternate Mfr Part Numb.MCV 1 5/16-GF-3 81
Alternate Part No.651-1830732
Amperage Rating8A
ApprovalsCSA ; VDE Gutachten mit.
BrandPhoenix Contact
CategoryConnectors, Interconnec.
ColorGreen
Color FamilyGreen
Contact Material-
Contact Mating FinishTin
Contact PlatingTin
Contact Tail Length0.138" (3.50mm)
Country of OriginDE - Germany
Current - IEC8A
Current - UL8 A
Current Rating8 A
DescriptionTERM BLOCK HDR 16POS VE.
Detailed Description16 Position Terminal Bl.
Digi-Key Part Number277-5947-ND
Family NameCOMBI Plug Family
FeaturesMating and Mounting Fla.
Header OrientationVertical
Height12.6 mm
Housing MaterialPolybutylene Terephthal.
Ingress Protection-
Insulation Height0.362" (9.20mm)
Length7.25 mm
ManufacturerPhoenix Contact
Manufacturer Part No.1830732
Manufacturer Product Nu.1830732
Manufacturer Standard L.4 Weeks
Material Flammability R.UL94 V-0
MfrPhoenix Contact
Mounting TypeThrough Hole, PCB Mount
No. of Levels1
No. of Positions16
Number of Contacts16
Number of Levels1
Number of Positions16
Number of Rows1
Operating Temperature-
OrientationVertical
PackageBulk
Part # AliasesMCV_1,5/16-GF-3,81 MCV1.
Pitch3.81 mm, 0.150" (3.81mm)
Plug Wire Entry-
Positions Per Level16
Primary TypePluggable
ProductHeaders
Product CategoryPluggable Terminal Bloc.
Product StatusActive
Screw Size-
SeriesMCV, COMBICON MCV Serie.
Special FeaturesMating and Mounting Fla.
TerminationThrough Hole
Termination StyleSolder, Through Hole
Torque - Screw-
TradenameCOMBICON Control
TypeHeader, Header, Male Pi.
Unit Weight113 g
UPC Code4017918051389
Voltage - IEC250 V
Voltage - UL300 V
Voltage Rating160 V
Width71.35 mm
Wire Gauge or Range - A.-
Wire Gauge or Range - m.-
Wire Size16 AWG
Wire Strip Length-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
electricautomationnetwork.comMCV 1,5/16-GF-3,815.151In StockPHOENIX_CONTACT5.15 @ 1
Onlinecomponents.com18307326.521In StockPhoenix Contact6.52 @ 1
HotendaH15403407.321In StockPhoenix Contact7.32 @ 1
thumbzoomDigi-Key3491668.2113Phoenix Contact8.21 @ 1
MRO Stop7530086568.251In StockPhoenix Contact8.25 @ 1
Airline HydraulicsPHOENIX 18307328.571In StockPhoenix Contact8.57 @ 1
us.rs-online.com703300749.2350In StockPhoenix Contact9.23 @ 50
Graybar2619959710.03521In StockPhoenix Contact10.0352 @ 1
thumbzoomswatee.com183073210.28196Phoenix Contact10.28 @ 1
thumbzoomNewark32AC783710.381In StockPHOENIX CONTACT10.38 @ 1
