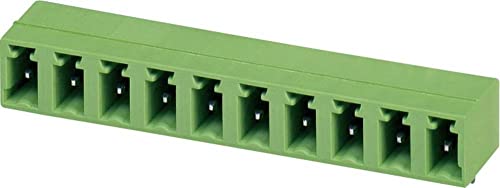

Phoenix Contact 1836228 Connector Headers and PCB Receptacles

Phoenix Contact 1836228 Connector Headers and PCB Receptacleszoom

Attributes

Key Value
Alternate Part No.651-1836228
BrandPhoenix Contact
CategoryConnectors, Interconnec.
ColorGreen
Contact Material-
Contact Mating FinishTin
Contact PlatingTin
Contact Tail Length0.138" (3.50mm)
Current - IEC8A
Current - UL8 A
Current Rating8 A
DescriptionTERM BLOCK HDR 6POS 90D.
Detailed Description6 Position Terminal Blo.
Digi-Key Part Number277-8864-ND
Features-
Header Orientation90?, Right Angle
Housing MaterialPolybutylene Terephthal.
Ingress Protection-
Insulation Height0.285" (7.25mm)
ManufacturerPhoenix Contact
Manufacturer Part No.1836228
Manufacturer Product Nu.1836228
Manufacturer Standard L.15 Weeks
Material Flammability R.UL94 V-0
MfrPhoenix Contact
Mounting TypeThrough Hole
Number of Levels1
Number of Positions6
Operating Temperature-
PackageBulk
Part # AliasesMC_1,5/_6-G-5,08 MC156G.
Pitch0.200" (5.08mm), 5.08 mm
Plug Wire Entry-
Positions Per Level6
ProductHeaders
Product CategoryPluggable Terminal Bloc.
Product StatusActive
Screw Size-
SeriesMC, COMBICON MC
Termination StyleSolder, Through Hole
Torque - Screw-
TradenameCOMBICON Control
TypeHeader, Male Pins, Shro.
Unit Weight122 g
Voltage - IEC400 V
Voltage - UL300 V
Voltage Rating250 V
Wire Gauge or Range - A.-
Wire Gauge or Range - m.-
Wire Strip Length-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
electricautomationnetwork.comMC 1,5/ 6-G-5,081.87110PHOENIX_CONTACT1.87 @ 10
TTI18362281.9310010Phoenix Contact1.93 @ 100
Onlinecomponents.com18362281.97158Phoenix Contact1.97 @ 10
Radwell18362282.155010PHOENIX CONTACT2.15 @ 50
HotendaH15425092.3110Phoenix Contact2.3 @ 10
thumbzoomDigi-Key25279732.634110Phoenix Contact2.634 @ 10
MRO Stop7530101232.71110Phoenix Contact2.71 @ 10
Airline HydraulicsPHOENIX 18362282.8211799Phoenix Contact2.82 @ 10
thumbzoomNewark45Y59022.92150PHOENIX CONTACT2.92 @ 10
thumbzoomswatee.com18362283.72117Phoenix Contact3.72 @ 10
