Phoenix.. 1863194

mpn1863194
brandname: PHOENIX_CONTACT
manufacturername: PHOENIX_CONTACT

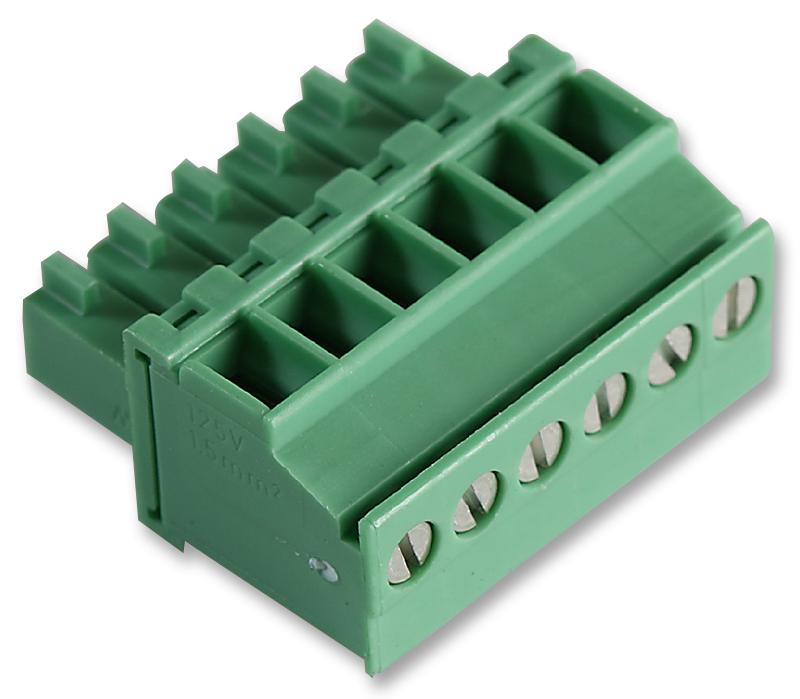

1863194, Conn Terminal Block F 6 POS 3.5mm Screw ST Cable Mount 8A (5 Items)

Brand: Phoenix..
PartNumber: 1863194
Model: 1863194
Manufacturer: Phoenix Contact
Label: Phoenix Contact

Attributes

Key	Value
Agency Approvals	UL ; cULus ; VDE
Alternate Mfr Part Numb.	MCVR 1 5/ 6-ST-3 5
Alternate Part No.	651-1863194
Approvals	VDE Gutachten mit Ferti.
Brand	Phoenix Contact
Category	Connectors, Interconnec.
Color	Green
Connection Method	Screw
Contact Material	-
Contact Mating Finish	Tin
Contact Plating	Tin
Contact Tail Length	-
Cross Section Area	1.5 mm2
Current - IEC	8A
Current - UL	8 A
Current Rating	8 A
Description	TERM BLOCK PLUG 6POS 90.
Detailed Description	6 Position Terminal Blo.
Digi-Key Part Number	277-5955-ND
Family Name	COMBI Plug Family
Features	-
Flammability Rating	UL 94 V-0
Header Orientation	-
Housing Material	Polyamide (PA), Nylon, .
Ingress Protection	-
Insulation Height	0.752" (19.10mm)
Insulation Material	Polyamide
Level	Single Level
Manufacturer	Phoenix Contact
Manufacturer Part No.	1863194
Manufacturer Product Nu.	1863194
Manufacturer Standard L.	15 Weeks
Material Flammability R.	UL94 V-0
Mfr	Phoenix Contact
Mounting Angle	90 deg
Mounting Type	Free Hanging (In-Line),.
Number of Contacts	6
Number of Levels	1
Number of Positions	6
Operating Force	Polyamide
Operating Temperature	-
Package	Bulk
Part # Aliases	MCVR_1,5/_6-ST-3,5 MCVR.
Pin Spacing	3.5 mm
Pitch	0.138" (3.50mm), 3.5 mm
Plug Wire Entry	90?
Positions Per Level	6
Primary Type	PCB Mount
Product	Plugs
Product Category	Pluggable Terminal Bloc.
Product Status	Active
Screw Size	M2
Series	MCVR, COMBICON MCVR, CO.
Stripping Length	7 mm
Surge Voltage	2.5 kV
Termination	Screw
Termination Style	Screw - Rising Cage Cla.
Tightening Torque	0.22 Nm (Min.)
Torque - Screw	0.22-0.25 Nm (1.9-2.2 L.
Tradename	COMBICON Control
Type	Plug, Plug, Female Sock.
Unit Weight	4.540 g
UPC Code	4017918121006
Voltage - IEC	320 V
Voltage - UL	300 V
Voltage Rating	160 V
Wire Entry	Front
Wire Gauge or Range - A.	14-30 AWG
Wire Gauge or Range - m.	0.14-1.5mm?
Wire Gauge Range	28-16
Wire Orientation	90 deg
Wire Size	16 AWG
Wire Strip Length	7mm
Wire Termination Type	Screw

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
electricautomationnetwork.com	MCVR 1,5/ 6-ST-3,5	3.82	1	5		PHOENIX_CONTACT	3.82 @ 5
Onlinecomponents.com	1863194	5.3	1	43		Phoenix Contact	5.3 @ 5
Hotenda	H1541517	6.49	1	5		Phoenix Contact	6.49 @ 5
Arrow	1863194	7.193	1	29		Phoenix Contact	7.193 @ 5
Digi-Key	2528382	7.28	1	5		Phoenix Contact	7.28 @ 5
MRO Stop	753002373	7.31	1	9		Phoenix Contact	7.31 @ 5
Airline Hydraulics	PHOENIX 1863194	7.59	1	5		Phoenix Contact	7.59 @ 5
us.rs-online.com	70054724	8.8	1	9		Phoenix Contact	8.8 @ 5
swatee.com	1863194	9.16	1	219		Phoenix Contact	9.16 @ 5
Newark	14J3711	9.38	1	150		PHOENIX CONTACT	9.38 @ 5
AmazonTP	B07M6ZZ63X	41.57	1	5	1	Phoenix Contact	41.57 @ 5
