PHOENIX VITAL LIFE 1984031

B00FV1P8GY

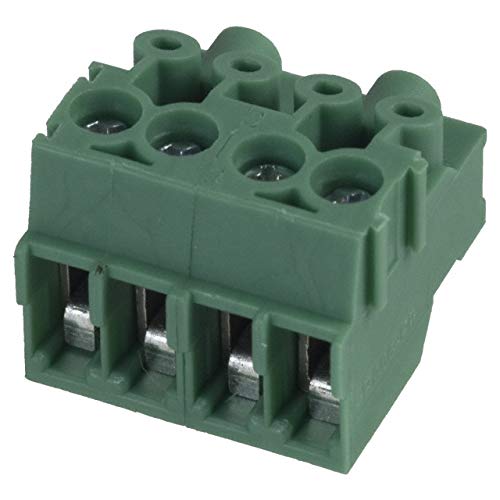

Phoenix Contact 1984031 Connector Terminal Blocks

Phoenix Contact 1984031 Connector Terminal Blockszoom

Attributes

Key Value
Agency ApprovalsUL, cULus, UL ; cULus
Alternate Mfr Part Numb.PT 1 5/ 4-PVH-3 5
Alternate Part No.651-1984031
ApprovalsUL Recognized ; cUL Rec.
BrandPhoenix Contact
CategoryConnectors, Interconnec.
ColorGreen
Connection MethodScrew
Contact Material-
Contact Mating FinishTin
Contact PlatingTin
Contact Tail Length-
Current - IEC8A
Current - UL10 A
Current Rating8 A
Dimensions14.6 L x 10.5 +3.5 W x .
Family NameCOMBI Plug Family
Features-
Flammability RatingUL 94 V-0
Header Orientation-
Housing MaterialPolyamide (PA), Nylon, .
Ingress Protection-
Insulation Height0.437" (11.10mm)
Insulation MaterialPolyamide, PA
Length14.6 mm
LevelSingle Level
ManufacturerPhoenix Contact
Manufacturer Part No.1984031
Material Flammability R.UL94 V-0
Material, InsulationPA
MfrPhoenix Contact
Mounting AngleVertical, Horizontal
Mounting TypeFree Hanging (In-Line),.
Number of Contacts4
Number of Levels1, 1 Level
Number of Positions4, 4 Position
Operating ForcePA, PA oz
Operating Temperature-
PackageBulk
Part # AliasesPT_1,5/_4-PVH-3,5 PT154.
Pin Spacing3.5 ; 0.138 mm ; in, 3..
Pitch0.138" (3.50mm), 3.5 mm.
Plug Wire Entry90? and 180?
Positions Per Level4
Primary TypePCB Mount, Wire to Board
ProductPlugs
Product CategoryPluggable Terminal Bloc.
Product StatusActive
Screw SizeM2
SeriesCOMBICON PT Series, PT,.
Special FeaturesCompact
Stripping Length5 mm
Surge Voltage2.5 kV (III/3, III/2, I.
TerminationPCB Pins, Screw
Termination StyleScrew - Rising Cage Cla.
Tightening Torque0.25 Nm (Min.) Nm
Torque - Screw0.22-0.25 Nm (1.9-2.2 L.
Torque, Tightening0.25 Nm (Min.)
TradenameCOMBICON Compact
TypePlug, Plug for Unshroud.
Unit Weight2.830 g
UPC Code4017918946036
Voltage - IEC400 V
Voltage - UL300 V
Voltage Rating200 V, 160 V
Voltage, Surge2.5 kV (III???3, III???.
Wire EntryTop/Front, Top ; Front
Wire Gauge or Range - A.16-26 AWG
Wire Gauge or Range - m.0.2-1.5mm?
Wire Gauge Range26-14
Wire OrientationVertical, Horizontal
Wire Size16 AWG, 16-26 AWG
Wire Strip Length5mm
Wire Termination TypeScrew

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com19840310.791349Phoenix Contact0.79 @ 1
HotendaH15396740.861116Phoenix Contact0.86 @ 1
industrialautomationparts.comAE-0083160.931107Phoenix Contact0.93 @ 1
Airline HydraulicsPHOENIX 19840311.05195Phoenix Contact1.05 @ 1
MRO Stop7530204461.19195Phoenix Contact1.19 @ 1
thumbzoomNewark70R00071.271147PHOENIX CONTACT1.27 @ 1
thumbzoomswatee.com19840311.3111552Phoenix Contact1.31 @ 1
us.rs-online.com700550391.391221Phoenix Contact1.39 @ 1
RS Delivers468-09031.4148195Phoenix Contact1.4148 @ 1
Digi-Key9508361.476195Phoenix Contact1.476 @ 1
