PHOENIX VITAL LIFE 1984691

B00FV1POUE

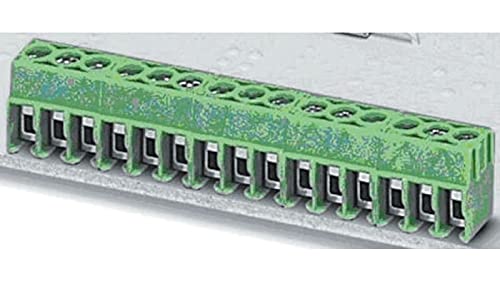

Phoenix Contact 1984691 Connector Terminal Blocks

Phoenix Contact 1984691 Connector Terminal Blockszoom

Attributes

Key Value
Agency ApprovalsUL ; cULus
Alternate Mfr Part Numb.PT 1 5/10-3 5-H
Alternate Part No.651-1984691
ApprovalsUL Recognized ; cUL Rec.
BrandPhoenix Contact
CategoryConnectors, Interconnec.
Clamp Material - Plating-
ColorGreen
Contact Material - Plat.-
Current10 A
Current Rating17.5 A
DescriptionTERM BLK 10P SIDE ENT 3.
Detailed Description10 Position Wire to Boa.
Digi-Key Part Number277-1727-ND
Dimensions7.6 L x 31.5 +3.5 W x 9.
Family NameCOMBI Plug Family
FeaturesInterlocking (Side)
Flammability RatingUL 94 V-0
Height9 mm
Hole Diameter1.2 mm
Housing MaterialPolyamide (PA), Nylon
Insulation MaterialPA
Length7.6 mm
LevelSingle Level
ManufacturerPhoenix Contact
Manufacturer Part No.1984691
Manufacturer Product Nu.1984691
Manufacturer Standard L.8 Weeks
Mating OrientationHorizontal with Board
MfrPhoenix Contact
Mounting AngleHorizontal
Mounting TypeThrough Hole, PCB Mount
Number of Contacts10
Number of Levels1
Number of Positions10
Operating ForcePA
Operating Temperature-
PackageBulk
Part # AliasesPT_1,5/10-3,5-H PT15103.
Pin Dimensions0.9 mm
Pin Spacing3.5 mm
Pitch0.138" (3.50mm), 3.5 mm
Positions Per Level10
Primary TypePCB Mount
Product CategoryFixed Terminal Blocks
Product StatusActive
Screw Material - Plating-
Screw ThreadM2
SeriesCOMBICON PT Series, COM.
Special FeaturesCompact
Stripping Length5 mm
Surge Voltage2.5 kV (III/3, III/2, I.
TerminationScrew
Termination StyleThrough Hole
Tightening Torque0.25 Nm (Min.)
Torque - Screw0.22-0.25 Nm (1.9-2.2 L.
TradenameCOMBICON Compact
TypeTerminal
Unit Weight4.760 g
UPC Code4017918946241
Voltage300 V
Voltage Rating200 V, 160 V
Wire EntryFront
Wire Gauge16-26 AWG
Wire Gauge Max16
Wire Gauge Min26
Wire Gauge Range26-16
Wire OrientationHorizontal
Wire Size16 AWG
Wire TerminationScrew
Wire Termination TypeScrew

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com19846911.79125Phoenix Contact1.66 @ 26
HotendaH16170211.88111443Phoenix Contact1.881 @ 25
RS Delivers648-86702.304125Phoenix Contact2.304 @ 25
electricautomationnetwork.comPT 1,5/10-3,5-H2.37125PHOENIX_CONTACT2.37 @ 25
Radwell19846912.410025PHOENIX CONTACT2.4 @ 100
thumbzoomDigi-Key9508552.475125Phoenix Contact2.475 @ 25
thumbzoomswatee.com19846912.491278Phoenix Contact2.49 @ 25
Airline HydraulicsPHOENIX 19846912.55181Phoenix Contact2.55 @ 25
us.rs-online.com700550232.7310025Phoenix Contact2.73 @ 100
MRO Stop7530204262.87125Phoenix Contact2.87 @ 25
