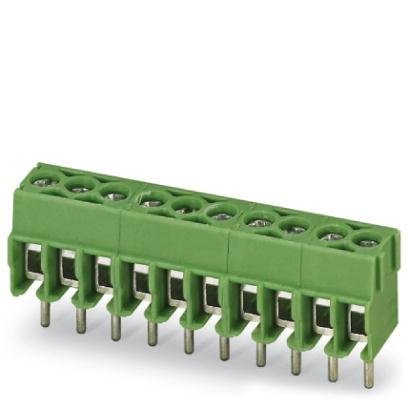

Phoenix Contact 1984756 Connector Terminal Blocks

Phoenix Contact 1984756 Connector Terminal Blockszoom

Attributes

Key Value
Alternate Part No.651-1984756
BrandPhoenix Contact
CategoryConnectors, Interconnec.
Clamp Material - Plating-
ColorGreen
ColourGreen
Contact Material - Plat.-
Current10 A
Current Rating17.5 A, 17.5A
Depth9mm
DescriptionTERM BLK 16P SIDE ENT 3.
Detailed Description16 Position Wire to Boa.
Digi-Key Part Number277-1733-ND
FeaturesInterlocking (Side)
Flammability RatingUL 94 V-0
Height9 mm
Housing MaterialPolyamide (PA), Nylon
Length7.6mm, 7.6 mm
ManufacturerPhoenix Contact
Manufacturer Part No.1984756
Manufacturer Product Nu.1984756
Manufacturer Standard L.8 Weeks
MaterialPolyamide
Mating OrientationHorizontal with Board
MfrPhoenix Contact
Mounting AngleHorizontal
Mounting TypeThrough Hole
Number Of Contacts16
Number of Levels1
Number of Positions16
Operating Temperature-
PackageBulk
Part # AliasesPT_1,5/16-3,5-H PT15163.
Part StatusActive
Pitch0.138" (3.50mm), 3.5 mm.
Positions Per Level16
Product CategoryFixed Terminal Blocks
Product StatusActive
Screw Material - Plating-
Screw ThreadM2
SeriesPT 1.5/16-3.5-H, COMBIC.
Termination MethodScrew
Termination StyleThrough Hole
Torque - Screw0.22-0.25 Nm (1.9-2.2 L.
TradenameCOMBICON Compact
TypePCB Terminal Block
Unit Weight7.500 g
Voltage300 V
Voltage Rating160 V, 400 V
Wire Gauge16-26 AWG
Wire Gauge Max16
Wire Gauge Min26
Wire Gauge Range26-16
Wire OrientationHorizontal
Wire TerminationScrew

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH16178523.01693Phoenix Contact3.0 @ 1
TTI19847563.281093Phoenix Contact3.28 @ 10
Onlinecomponents.com19847563.381100Phoenix Contact3.38 @ 1
Mouser651-19847563.481154Phoenix Contact3.48 @ 1
Radwell19847563.835026PHOENIX CONTACT3.83 @ 50
Airline HydraulicsPHOENIX 19847564.05113Phoenix Contact4.05 @ 1
thumbzoomswatee.com19847564.53150Phoenix Contact4.53 @ 1
MRO Stop7530204324.571In StockPhoenix Contact4.57 @ 1
thumbzoomDigi-Key9508615.3521360Phoenix Contact5.352 @ 1
thumbzoomRS Delivers855-2903234.44761In StockPhoenix Contact234.4476 @ 1
