PHOENIX VITAL LIFE 1985221

mpn1985221
brandname: Phoenix Contact
manufacturername: Phoenix Contact

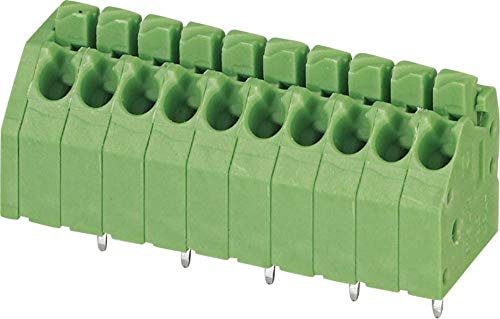

Phoenix Contact 1985221 Connector Terminal Blocks

Phoenix Contact 1985221 Connector Terminal Blocks

zoom

Brand: PHOENIX VITAL LIFE
PartNumber: 1985221
Model: 1985221
PackageQuantity: 1
Manufacturer: Phoenix Contact
Label: Phoenix Contact

Attributes

Key	Value
Agency Approvals	UL ; cULus ; VDE, UL, c.
Alternate Mfr Part Numb.	PTSA 1 5/ 5-3 5-Z
Approvals	VDE Gutachten mit Ferti.
Category	Connectors, Interconnec.
Clamp Material - Plating	-
Color	Green
Contact Material - Plat.	-
Current	2 A
Current Rating	2 A, 8 A
Diameter, Hole	1 mm
Dimensions	12mm L x 4mm + 3.5mm W .
Dimensions, Pin	0.4 x 0.75 mm
Family Name	COMBI Plug Family
Features	-
Hole Diameter	1 mm
Housing Material	Polyamide (PA), Nylon
Insulation Material	PA
Level	Single Level
Material, Insulation	PA
Mating Orientation	45? (135?) Angle with B.
Mfr	Phoenix Contact
Mounting Type	Through Hole, PCB Mount
Number of Contacts	5
Number of Levels	1, 1 Level
Number of Positions	5, 5 Position
Operating Force	PA
Operating Temperature	-
Package	Bulk
Part Status	Active
Pin Dimensions	0.4 x 0.75 mm
Pin Spacing	3.5 mm (0.138 in), 3.5 .
Pitch	0.138" (3.50mm), 3.5 mm
Positions Per Level	5
Primary Type	Wire to Board
Screw Material - Plating	-
Screw Thread	-
Series	COMBICON PTSA, COMBICON.
Special Features	Compact
Stripping Length	8 mm
Surge Voltage	4 kV (III/2), 6 kV (II/.
Termination	Through Hole, Push-In
Torque - Screw	-
Type	Terminal, Fixed
UPC Code	4017918922306
Voltage	300 V
Voltage Rating	250 V, 400 V
Voltage, Surge	4 kV (III???2), 6 kV (I.
Wire Entry	45?, 45??
Wire Gauge	16-24 AWG
Wire Size	16 AWG, 16-20 AWG
Wire Termination	Screwless - Spring Cage.
Wire Termination Type	Spring Cage, Push-In

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	industrialautomationparts.com	AE-008286	0.56	1	178		Phoenix Contact		0.56 @ 1
	Hotenda	H1616988	0.6	1	1582		Phoenix Contact		0.6 @ 1
	Onlinecomponents.com	1985221	0.64	30	4964		Phoenix Contact		0.64 @ 30
	Mouser	651-1985221	0.7	1	3043		Phoenix Contact		0.7 @ 1
	Radwell	1985221	0.72	100	178		PHOENIX CONTACT		0.72 @ 100
	Airline Hydraulics	PHOENIX 1985221	0.77	1	56		Phoenix Contact		0.77 @ 1
	us.rs-online.com	70055072	0.81	100	123		Phoenix Contact		0.81 @ 100
	Newark	70R0043	0.844	1	342		PHOENIX CONTACT		0.844 @ 1
	MRO Stop	753020364	0.87	1	114		Phoenix Contact		0.87 @ 1
	Digi-Key	568662	0.943	500	123		Phoenix Contact		0.943 @ 1
