PHOENIX VITAL LIFE 1985234

B00FV1QP4S

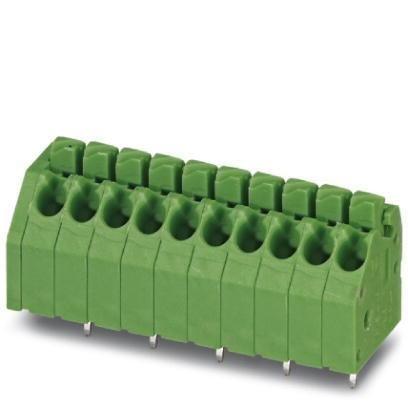

Phoenix Contact 1985234 Connector Terminal Blocks

Phoenix Contact 1985234 Connector Terminal Blockszoom

Attributes

Key Value
Agency ApprovalsUL ; cULus ; VDE, UL, c.
Alternate Mfr Part Numb.PTSA 1 5/ 6-3 5-Z
Alternate Part No.651-1985234
ApprovalsUL Recognized, VDE Guta.
BrandPhoenix Contact
CategoryConnectors, Interconnec.
Clamp Material - Plating-
ColorGreen
Contact Material - Plat.-
Current2 A
Current Rating2 A, 8 A
Diameter, Hole1 mm
Dimensions12 L x 17.5 +3.5 W x 13.
Dimensions, Pin0.4 x 0.75 mm
Family NameCOMBI Plug Family
Features-
Flammability RatingUL 94 V-2
Height13.1 mm
Hole Diameter1 mm
Housing MaterialPolyamide (PA), Nylon
Insulation MaterialPA
Length12 mm
LevelSingle Level
ManufacturerPhoenix Contact
Manufacturer Part No.1985234
Material, InsulationPA
Mating Orientation45? (135?) Angle with B.
MfrPhoenix Contact
Mounting AngleRight
Mounting TypeThrough Hole, PCB Mount
Number of Contacts6
Number of Levels1, 1 Level
Number of Positions6 Position, 6
Operating ForcePA
Operating Temperature-
PackageBulk
Part # AliasesPTSA_1,5/_6-3,5-Z PTSA1.
Pin Dimensions0.4 x 0.75 mm
Pin Spacing3.5 mm, 3.5 mm(0.138 in)
Pitch0.138" (3.50mm), 3.5 mm
Positions Per Level6
Primary TypePCB Mount, Wire to Board
Product CategoryFixed Terminal Blocks
Product StatusActive
Screw Material - Plating-
Screw Thread-
SeriesCOMBICON PTSA, COMBICON.
Special FeaturesCompact
Stripping Length8 mm
Surge Voltage4 kV (III/2), 6 kV (II/.
TerminationThrough Hole, Push-In
Termination StyleThrough Hole
Torque - Screw-
TradenameCOMBICON Compact
TypeTerminal, Fixed
Unit Weight3.300 g
UPC Code4017918922313
Voltage300 V
Voltage Rating250 V, 400 V
Voltage, Surge4 kV (III???2), 6 kV (I.
Wire Entry45?, 45??
Wire Gauge16-24 AWG
Wire Gauge Max16
Wire Gauge Min20
Wire Gauge Range20-16
Wire Orientation45 Deg
Wire Size16 AWG, 16-20 AWG
Wire TerminationScrewless - Spring Cage.
Wire Termination TypeSpring Clamp, Spring Ca.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
HotendaH16168100.54412883Phoenix Contact0.544 @ 1000
Onlinecomponents.com19852340.5611000Phoenix Contact0.56 @ 1000
WaldomPHOENIX CONTACT 19852340.6801000PHOENIX CONTACT0.6 @ 1000
industrialautomationparts.comAE-0082850.711000Phoenix Contact0.7 @ 1000
thumbzoomNewark70R00440.81111000PHOENIX CONTACT0.811 @ 1000
Radwell19852340.891001000PHOENIX CONTACT0.89 @ 1000
Digi-Key5686630.897611000Phoenix Contact0.8976 @ 1000
RS Delivers648-24920.93611000Phoenix Contact0.936 @ 1000
Airline HydraulicsPHOENIX 19852340.9511000Phoenix Contact0.95 @ 1000
us.rs-online.com700550731.01001000Phoenix Contact1.0 @ 1000
thumbzoomswatee.com19852341.0515175Phoenix Contact1.05 @ 1000
MRO Stop7530203651.0811000Phoenix Contact1.08 @ 1000
electricautomationnetwork.comPTSA 1,5/ 6-3,5-Z1.1311000PHOENIX_CONTACT1.13 @ 1000
