- mpn787532
- brandname: PILZ
- manufacturername: PILZ

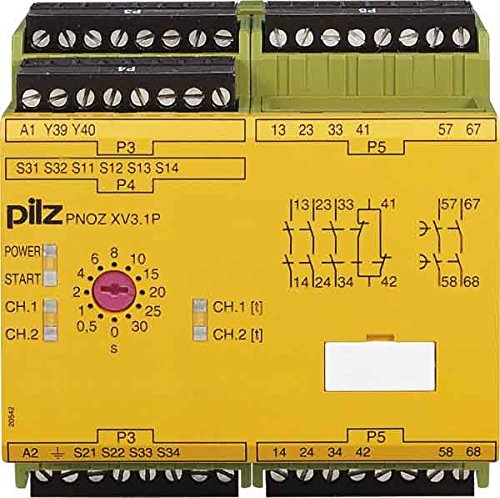

Pilz 787532
- Brand: PILZ
- PartNumber: PNOZ XV3.1PC #787532
- Model: 787532
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Pilz
- Label: Pilz
Attributes
| Key | Value |
|---|
| Application | emergency stop, |
| Applications | E-Stop Pushbuttons, Lig. |
| Approvals | CCC, cUL, GOST, TUV, UL |
| Auxiliary Contacts | 1NC |
| Auxiliary outputs | NC x1 |
| Body dimensions | 101x90x121mm |
| Contact actuation delay | 0...3s |
| Contacts electrical par. | 24V DC / 8A, |
| Delayed Safety Contacts | 2NO |
| Electrical connection | spring-loaded terminals |
| Family Series | Pilz Safety Relays, PNO. |
| Gross Weight | 1.2575 lbs |
| Input 1 properties | 2 channels with or with. |
| Instantaneous Contacts | 3NO |
| IP rating | IP40 |
| Item Number | 787532 |
| Manufacturer | PILZ |
| Manufacturer Part Number | 787532 |
| Manufacturer series | PNOZ XV3.1P C |
| Mounting | DIN, DIN Rail |
| Net Weight | 1.19125 lbs |
| Number of inputs | 6 |
| Number of outputs | 6 |
| Operating temperature | -10...55?C |
| Power Consumption (AC) | 8.5 VA |
| Power Consumption (DC) | 5 W |
| Product Series | PNOZ X |
| Safety category | 3, |
| Safety outputs | NO delay on x2, |
| Selectable Times | 0.1 s, 0.2 s, 0.3 s, 0.. |
| Standards | EN60204-1, EN62061, EN9. |
| Supply Voltage | 24-240 VAC, 24-240 VDC |
| Terminal Style | Plug-In |
| Termination | Cage Clamp |
| Trade name | PNOZ X |
| Type of module | safety relay |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| TME | PZ-787532 | 432.9 | 1 | In Stock | | PILZ | | 432.9 @ 1 |
 | kempstoncontrols.co.uk | 787532 | 504.8969445 | 1 | In Stock | | Pilz | | 504.8969445 @ 1 |
 | Galco | 787532-PILZ | 642.2 | 1 | In Stock | | PILZ | 1.2575 | 642.2 @ 1 |
 | Nex Instrument | 787532 | 669.0 | 1 | In Stock | 31 | PILZ | | 669.0 @ 1 |
