Q1 X 1 9/16

mpnQ1 X 1 9/16
brandname: POWER DRIVE
manufacturername: POWER DRIVE

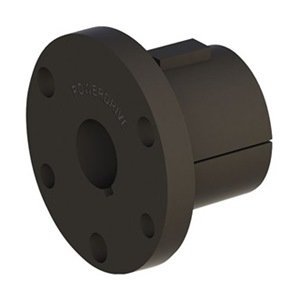

POWER DRIVE Q1 X 1 9/16 Split Taper Bushing,Series Q1,1-9/16 In

POWER DRIVE Q1 X 1 9/16 Split Taper Bushing,Series Q1,1-9/16 In

zoom

PartNumber: Q1 X 1 9/16
PackageQuantity: 1
Binding: Misc.
Manufacturer: POWER DRIVE
Label: POWER DRIVE

Attributes

Key	Value
Bolt Circle Dia.	3.375 in
Bolt Circle Diameter	3.375 in
Bolt Size	3/8 in x 1-1/4 in
Bore Bushing Series	Q1
Bore Dia.	1 9/16 in
Bore Diameter	1 9/16 in
Bushing Type	Split Taper
Country of Origin (subj.	India
Dimension D Large End	2.875 in
Dimension D Small End	2.7657 in
Dimension L	2 1/2 in
Dimension T	1 31/32 in
Dimension U	17/32 in
Dimension V	3 3/8 in
External Key	On Bushing Provides Pos.
Flange Type	Solid
Includes	Cap Screws
Item	Split Taper Bushing
Item - Tapered and QD B.	Split Taper Bushing
Length	2.5 in
Length (Straight Wirewa.	2.5 in
Material	Ductile Iron
SAE Grade	G3000
System of Measurement	Standard
Taper	3/4 in per ft for Shaft.

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G3654831	35.0	1	In Stock	15	Powerdrive	4.2	35.0 @ 1
	Raptor Supplies	AF2BGJ	104.5280925	1	In Stock		POWER DRIVE		104.5280925 @ 1
