PRV AUDIO 8MR500-NDY-4 v2

B082L67YXR

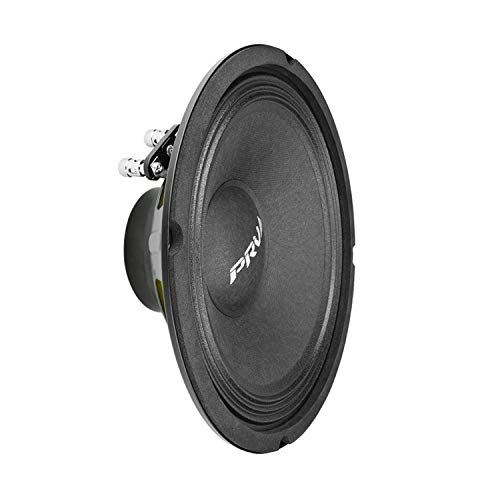

PRV AUDIO 8MR500-NDY-4 V2 Neodymium 8" Mid Range 4 ohms Pro Audio Speaker 250 Watts RMS (Single)

PRV AUDIO 8MR500-NDY-4 V2 Neodymium 8" Mid Range 4 ohms Pro Audio Speaker 250 Watts RMS (Single)zoom

Attributes

Key Value
# Mounting Holes4
Baffle Cutout Diameter7.36"
Basket / Frame MaterialSteel
BL Product (BL)9.16T?m
BrandPRV Audio
Compliance Equivalent V.0.51ft?
Cone MaterialPaper / Glass Fiber
DC Resistance (Re)3.7?
Depth3.03"
Diaphragm Mass Inc. Air.21.66g
Electromagnetic Q (Qes)0.48
Frequency Response90 to 9,000Hz
Impedance4?
Magnet MaterialNeodymium
Maximum Linear Excursio.3.5mm
Mechanical Compliance o.0.179mm/N
Mechanical Q (Qms)5.18
Model8MR500-NDY-4 v2
Nominal Diameter8"
Overall Outside Diameter8.11"
Part Number294-2952
Power Handling (MAX)500 Watts
Power Handling (RMS)250 Watts
Resonant Frequency (Fs)80.79Hz
Sealed F3166.4Hz
Sealed Volume0.45ft?
Sensitivity96dB 2.83V/1m
Surface Area of Cone (S.241cm?
Surround MaterialCloth
Total Q (Qts)0.44
Unit of MeasureEach
UPC602938022545
Vented F372.3Hz
Vented Volume0.75ft?
Voice Coil Diameter2"
Voice Coil FormerKapton? / Polyimide
Voice Coil Inductance (.0.35mH
Voice Coil Wire MaterialCCA
Weight2.95
