Qa1 MGMR10T

B00J2EUZQE

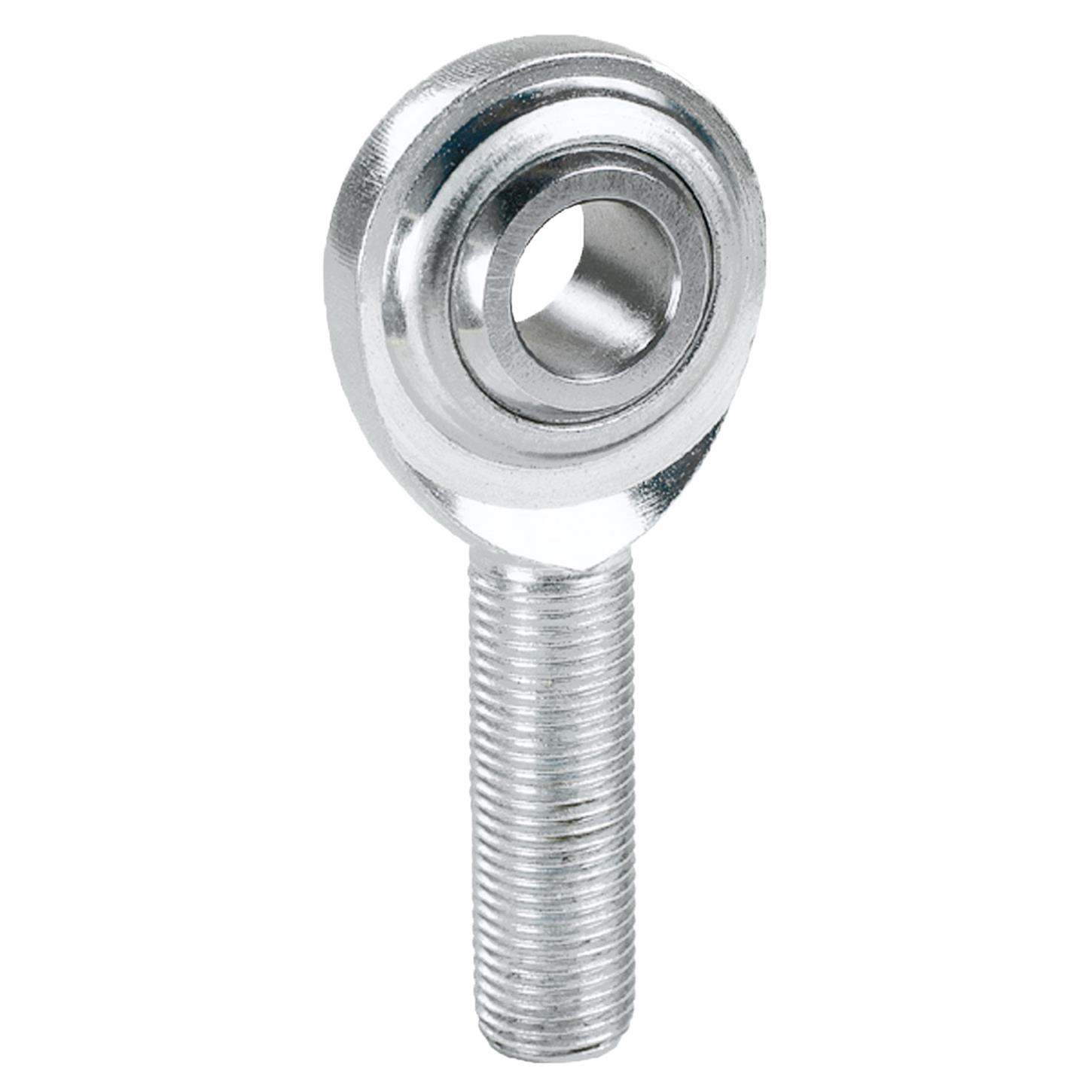

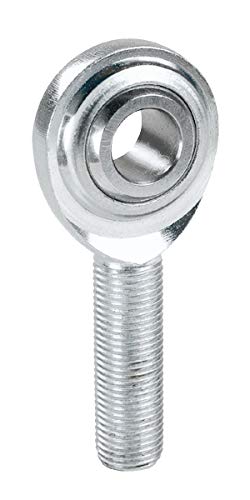

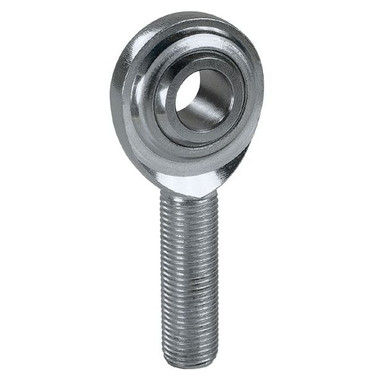

Male, SS/PTFE Race Rod End, RH, 10/10.065mm

Male, SS/PTFE Race Rod End, RH, 10/10.065mmzoom

Attributes

Key Value
ApplicationLight Duty
Ball440C Stainless Steel Sp.
Ball Diameter19.05 mm
Ball MaterialStainless Steel
Ball Material Grade440C
Bore Diameter10 mm
Bore Diameter Tolerance+0.065/-0.012 in
BrandQa1
ColorChrome
ConstructionFollows SAE Specificati.
Current Stock47
Dimension AM10 x 1.5
Dimension AA10/10.065mm
Dimension E27 mm
Dimension G48 mm
Dimension H29 mm
Dimension J61.5 mm
Dimension N14 mm
FinishNatural
GTIN Code806990069740
Head Outside Diameter27 mm
Head Width9.5 mm
Hole Diameter10 mm
Housing300 Series Stainless St.
Housing MaterialStainless Steel
Housing Material FinishChrome Plated
Inner Ring Width14 mm
Inside Dia.10/10.065mm
International ShippingNo
ItemSpherical Rod End
Lead TimeExpected to ship in 1-2.
Material TypeStainless Steel
Maximum Ball Swivel26 Degrees
MFG. Part #MGMR10T
MpnMGMR10T
Overall Length61 1/2 mm
Race MaterialPTFE
Resistance PropertiesCorrosion Resistant
Rod End AttachmentMale Threads/Eyelet
Rod End Construction2-piece
Rod End Misalign Angle26 degrees
Rod End TypeSpherical Rod End
Self Lubricating BearingYes
Shank Thread DirectionRight Hand
Shank Thread GenderMale
Shank Thread Length29 mm
Shank Thread SizeM10-1.5
SKUZO-G5618557
StandardsISO Certified 9001
Static Radial Load Capa.14,144 N
SubCategoryPower Transmission
System of MeasurementMetric
ThreadRight Hand
Thread Length29 mm
Thread Pitch10mm x 1.5
Thread SizeM10 x 1.5
Thread TypeRH Male
TypeMale Plain
UPC094723357909

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Summit RacingQA1-MGMR10T14.9913QA114.99 @ 3
thumbzoomspeedwaymotors.com721MGMR10T21.9913QA121.99 @ 3
Jegs122-MGMR10T24.9913QA124.99 @ 3
thumbzoomsustainablesupply.comC160241527.8413QA10.127.84 @ 3
us.rs-online.com7221154828.2113QA128.21 @ 3
thumbzoomZoroG561855740.891134Qa10.140.89 @ 3
thumbzoomsimsupply.comZO-G561855745.96147Qa145.96 @ 3
grainger.caGGF39N49955.3209333213QA10.155.32093332 @ 3
thumbzoomRaptor SuppliesAC8EVM83.55543313QA183.555433 @ 3
