Unknown MGMR14T

B01MXND6XA

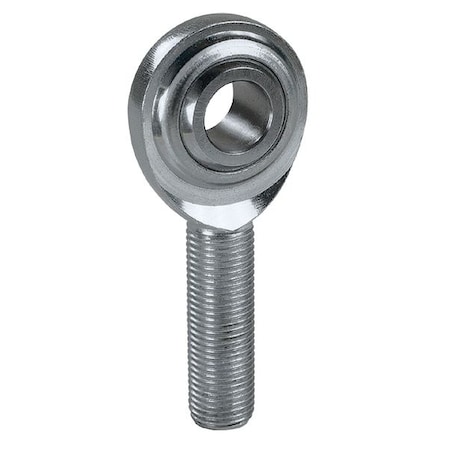

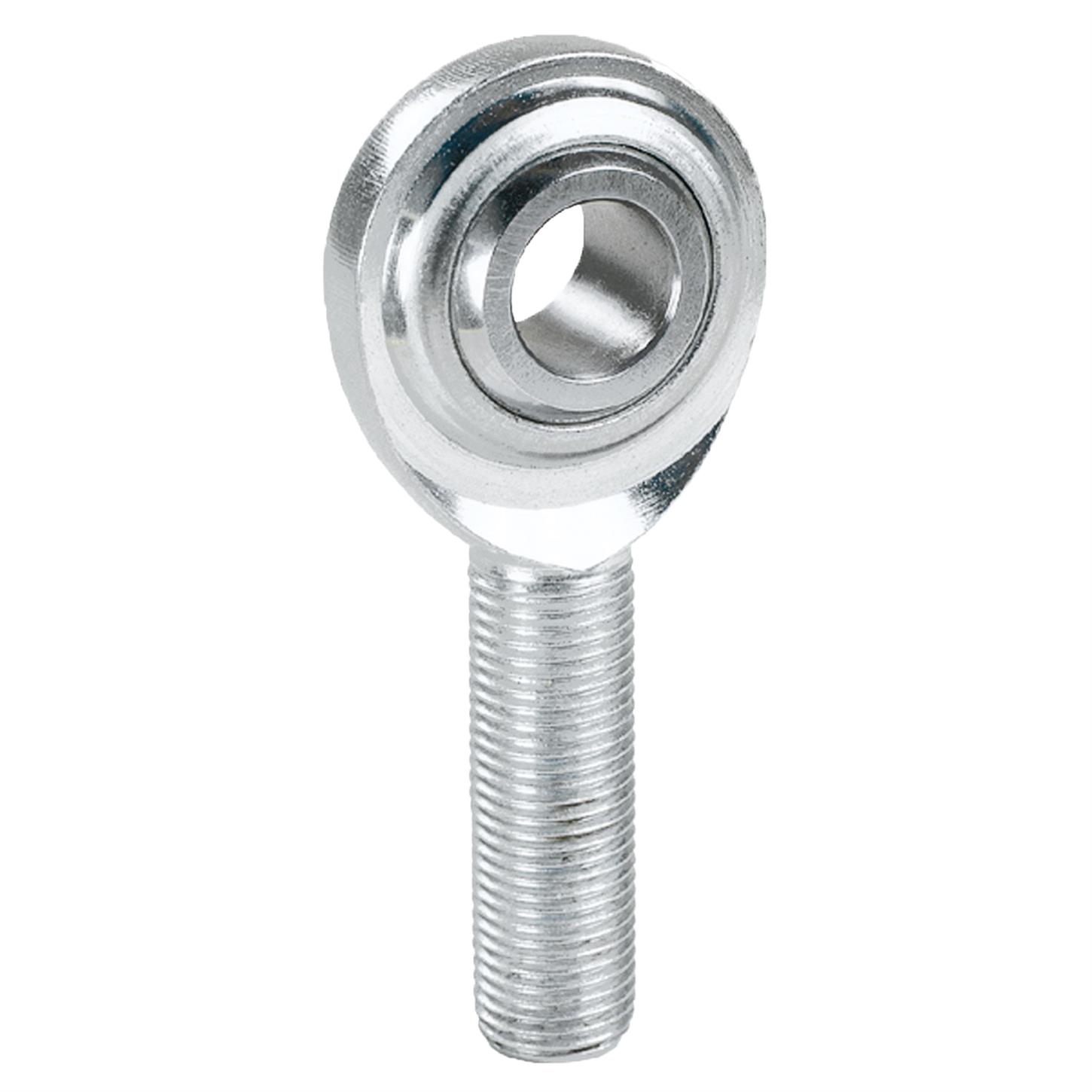

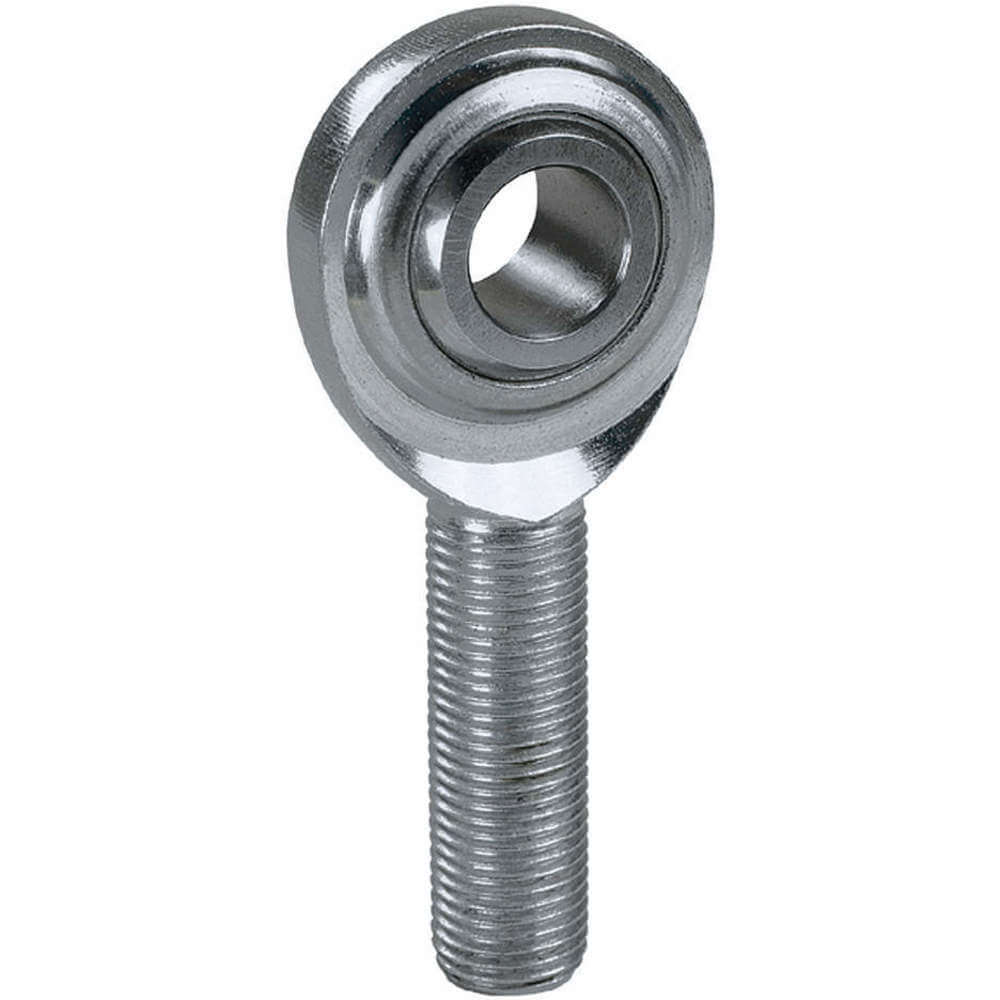

QA1 Precision Products MGMR14T Rod Ends - 3-Piece

QA1 Precision Products MGMR14T Rod Ends - 3-Piecezoom

Attributes

Key Value
ApplicationLight Duty
Ball440C Stainless Steel Sp.
Ball Diameter25.4 mm
Ball MaterialStainless Steel
Ball Material Grade440C
Bore Diameter14 mm
Bore Diameter Tolerance+0.065/-0.012 in
ConstructionFollows SAE Specificati.
Dimension AM14 x 2.0
Dimension AA14/14.065mm
Dimension E34.75 mm
Dimension G60 mm
Dimension H36 mm
Dimension J77.375 mm
Dimension N19 mm
FinishNatural
GTIN Code806990069665
Head Outside Diameter34.75 mm
Head Width12.25 mm
Hole Diameter14.000 mm
Housing300 Series Stainless St.
Housing MaterialStainless Steel
Housing Material FinishChrome Plated
Inner Ring Width19 mm
Inside Dia.14/14.065mm
ItemSpherical Rod End
Material TypeStainless Steel
Maximum Ball Swivel30 Degrees
MFG. Part #MGMR14T
Overall Length77 3/8 mm
Race MaterialPTFE
Resistance PropertiesCorrosion Resistant
Rod End AttachmentMale Threads/Eyelet
Rod End Construction2-piece
Rod End Misalign Angle30 degrees
Rod End TypeSpherical Rod End
Self Lubricating BearingYes
Shank Thread DirectionRight Hand
Shank Thread GenderMale
Shank Thread Length36 mm
Shank Thread SizeM14-2
StandardsISO Certified 9001
Static Radial Load Capa.23,699 N
System of MeasurementMetric
ThreadRight Hand
Thread Length36 mm
Thread Pitch14mm x 2.0
Thread SizeM14 x 2.0
Thread TypeRH Male
TypeMale Plain

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Summit RacingQA1-MGMR14T34.991In StockQA134.99 @ 1
thumbzoomspeedwaymotors.com721MGMR14T45.991In StockQA145.99 @ 1
thumbzoomZoroG576140246.791In StockQa10.346.79 @ 1
Jegs122-MGMR14T54.991In StockQA154.99 @ 1
thumbzoomsustainablesupply.comC160241966.041In StockQA10.366.04 @ 1
grainger.caGGF39N504122.037020841In StockQA10.3122.03702084 @ 1
thumbzoomRaptor SuppliesAC8EVQ123.4671751In StockQA1123.467175 @ 1
