Unknown PCYML7T

B01N42ZYSQ

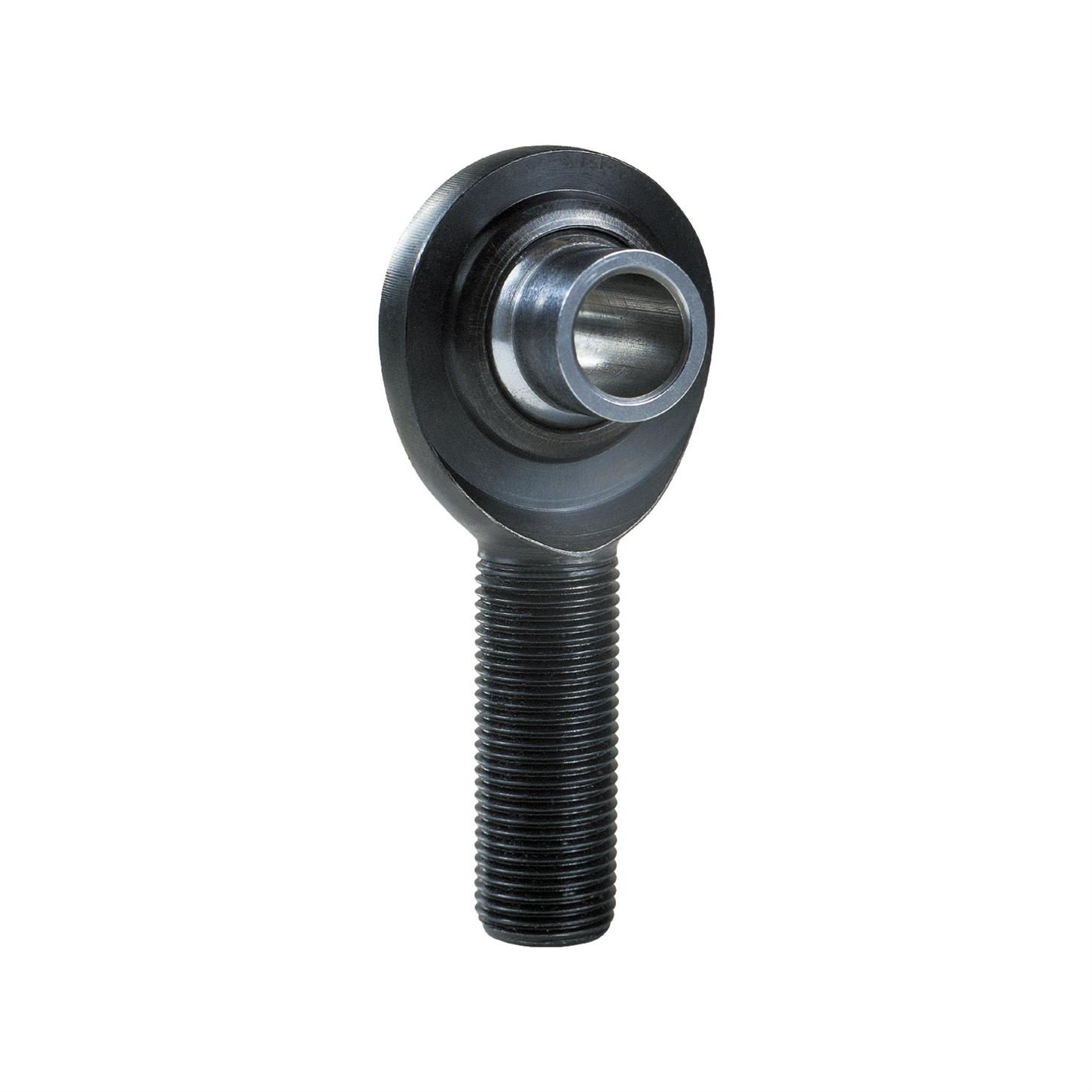

QA1 Precision Products PCYML7T

QA1 Precision Products PCYML7Tzoom

Attributes

Key Value
Ball DiameterNot Applicable
Ball Material Grade52100
Ball Stud Center Length2 7/16 in
Ball Stud MaterialAlloy Steel
Ball Stud Thread Length1 1/2 in
Ball Stud Thread Size7/16-20
Bore Diameter7/16 in
Bore Diameter Tolerance-0.005/+0.0015 in
FinishBlack Oxide
For EnvironmentNot Applicable
Head Outside Diameter1 1/4 in
Hole Diameter0.438"
Inner Ring Width1 in
ItemHigh Misalignment Rod E.
Load Capacity13408 lbs.
Load DirectionRadial
Material TypeChromoly
Maximum Ball Swivel58 Degrees
Maximum Temperature275 Degrees F
MFG. Part #PCYML7T
Minimum Temperature-65 Degrees F
Overall Length3 1/16 in
Race MaterialPTFE
Rod End AttachmentMale Threads/Eyelet
Rod End Construction2-piece
Rod End Head Width1"
Rod End Misalign Angle58 degrees
Rod End TypeSpherical Rod End
Shank Thread Length1 1/2 in
Shank Thread Size7/16"-20
Sold in QuantityEach
StandardsISO 9001
Static Radial Load Capa.14,449 lbf
System of MeasurementInch
Thread Length1.500"
Thread Pitch7/16"-20
Thread TypeLH Male

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Summit RacingQA1-PCYML7T10.991In StockQA110.99 @ 1
thumbzoomspeedwaymotors.com721PCYML7T14.991In StockQA114.99 @ 1
Jegs122-PCYML7T16.991In StockQA116.99 @ 1
us.rs-online.com7221196618.551In StockQA118.55 @ 1
thumbzoomZoroG51019181318.851In StockQa10.1518.85 @ 1
