mpn:
manufacturer:
MPN:
Description:

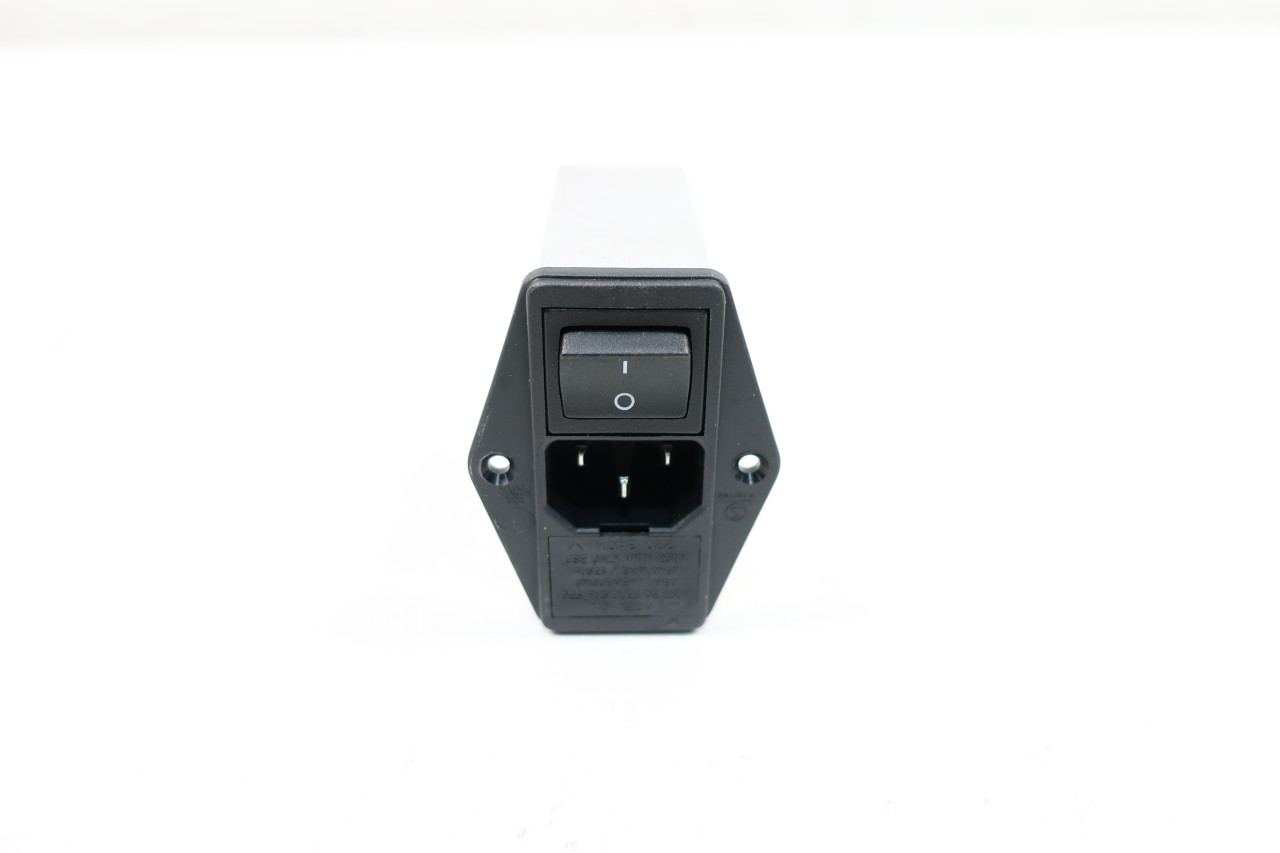

EMI POWER LINE FILTER, MULTI FUNCTION MODULE, W/IEC CONN, DBL FUSEHOLDR, W/VOLTG
Weight:
0.31
Weight:
0.31 LB
Preferred Price:
56.41
Price:
56.41
Min Simple Price:
30.828
Absolute Min Price:
43.77
Min Price:
43.77
Dimensions:
[4.0, 3.0, 2.0]
qty:
21
simpleSku:
NDI1Mw:::864-06/005
sku:
NDI1Mw::2S:864-06/005@y0
condition:
11
seller:
Digi-Key
amzMan:
qualtek electronics
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Accomodates a Fuse | Yes (Fuse Not Included) |
| Approval Agency | CSA, UL, VDE |
| Base Product Number | 864-06 |
| Category | Connectors, Interconnects |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current - IEC | 6A |
| Current - UL, Ingress Protection, Material Flammability Rating, Panel Thickness, Voltage - UL | - |
| Current Rating | 6 A |
| Cx Capacitance | 0.22 ?F |
| Cy Capacitance | 3300 pF |
| Features | Voltage Selector |
| Filter Type | EMI, Filtered (EMI, RFI) - Commercial |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused |
| Gender | Male |
| Inductance | 2.5 mH |
| Leakage Current | 0.25, 0.45 mA |
| Mfr | Qualtek |
| Mounting Type | Panel Mount, Panel Mount, Flange |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -25 to +85 ?C |
| Package | Tray |
| Panel Cut Out | 1.14?2.37 " |
| Panel Cutout Dimensions | Rectangular - 28.96mm x 60.20mm |
| Part Status | Active |
| Product Header | 864 Series Multi-Function Module Filter |
| Protection | 1 (Fuseholder), 2 (Line Switch) |
| Resistance | 1 Megaohms |
| Series | 864, 864 Series |
| Switch Features | Switch On-Off |
| Termination | Quick Connect |
| Type | Filter ; Fuse ; Switch |
| Voltage - IEC | 115/250VAC |
| Voltage Rating | 115 ; 250 V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Digi-Key | 739560 | 30.828 | 141.8088 | 10 | In Stock | Qualtek | 30.828 @ Qty: 10+ | |||
| us.rs-online.com | 70133401 | 31.71 | 31.71 | 1 | 11 | Qualtek Electronics Corp. | 31.71 @ Qty: 1+ | |||
| AmazonTP | B00DEDUF2S | 32.98 | 32.98 | 1 | In Stock | 5 | Qualtek | 32.98 @ Qty: 1+ | ||
| Newark | 52M1993 | 37.2 | 171.12 | 10 | In Stock | QUALTEK ELECTRONICS | 37.2 @ Qty: 10+ | |||
 | NRI Industrial | D673961 | 39.19 | 39.19 | 1 | In Stock | QUALTEK ELECTRONICS | 39.19 @ Qty: 1+ |
