TE Raychem TXR40AC45-1814BI

B07NQVB4G9

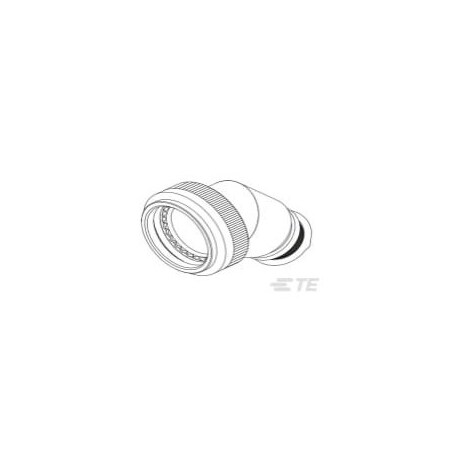

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Adapter Angle45
Adapter Entry Size14
Adapter Plating MaterialElectroless Nickel (AMS.
Backshell MaterialAluminum
Base Product NumberTXR40AC45
Cable Diameter Range11.1 ? 17.8 mm[.438 ? ..
Cable Entry Diameter.2 ? 22.2 mm[.01 ? .88 .
Cable Exit45?
Cable Opening-
CategoryConnectors, Interconnec.
ColorBright, Silver
Connector Detail Specif.D38999/20, D38999/24, D.
Connector General Speci.MIL-DTL-38999 Series II.
Connector Shell Size19,F
DescriptionCONN BACKSH ADPT SZ19 F.
Detailed DescriptionSilver Connector Backsh.
Diameter - Outside1.398" (35.50mm)
Digi-Key Part NumberTXR40AC45-1814BI-ND
FeaturesTinel Lock
For Use With/Related Pr.MIL-DTL-38999 Series II.
Includes4 pcs - 1 Backshell, 1 .
Ingress ProtectionEnvironment Resistant
ManufacturerTE Connectivity Aerospa.
Manufacturer Product Nu.TXR40AC45-1814BI
Manufacturer Standard L.14 Weeks
MaterialAluminum Alloy
Material Flammability R.-
MfrTE Connectivity Aerospa.
Operating Temperature R.-65 ? 200 ?C[-85 ? 392 .
Overbraid TerminationTinel-Lock Ring
PackageBulk
Package Quantity1
PlatingElectroless Nickel
Pluggable I/O Accessory.Tinel-Lock Adapter
Product StatusActive
Salt Spray Resistance48 Hr
SeriesTXR, Raychem TXR
Shell Size - Insert19, F
ShieldingShielded
TE Adapter Code40
Termination Device Incl.TR14BI
Termination Device TypeSide-Entry Tinel-Lock R.
Thread SizeM28x1
TypeBackshell, Heat Shrink .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY RAYCHEM TXR40AC45-1814BI86.9819TE CONNECTIVITY / RAYCHEM86.98 @ 1
thumbzoomZoroG305908060110.991In StockRaychem110.99 @ 1
thumbzoomDigi-Key5311964116.8219TE Connectivity Aerospace, Defense and Marine116.82 @ 1
Newark94AC9915120.591In StockTE CONNECTIVITY120.59 @ 1
