Raymarine E70517

B07MDXWKKH

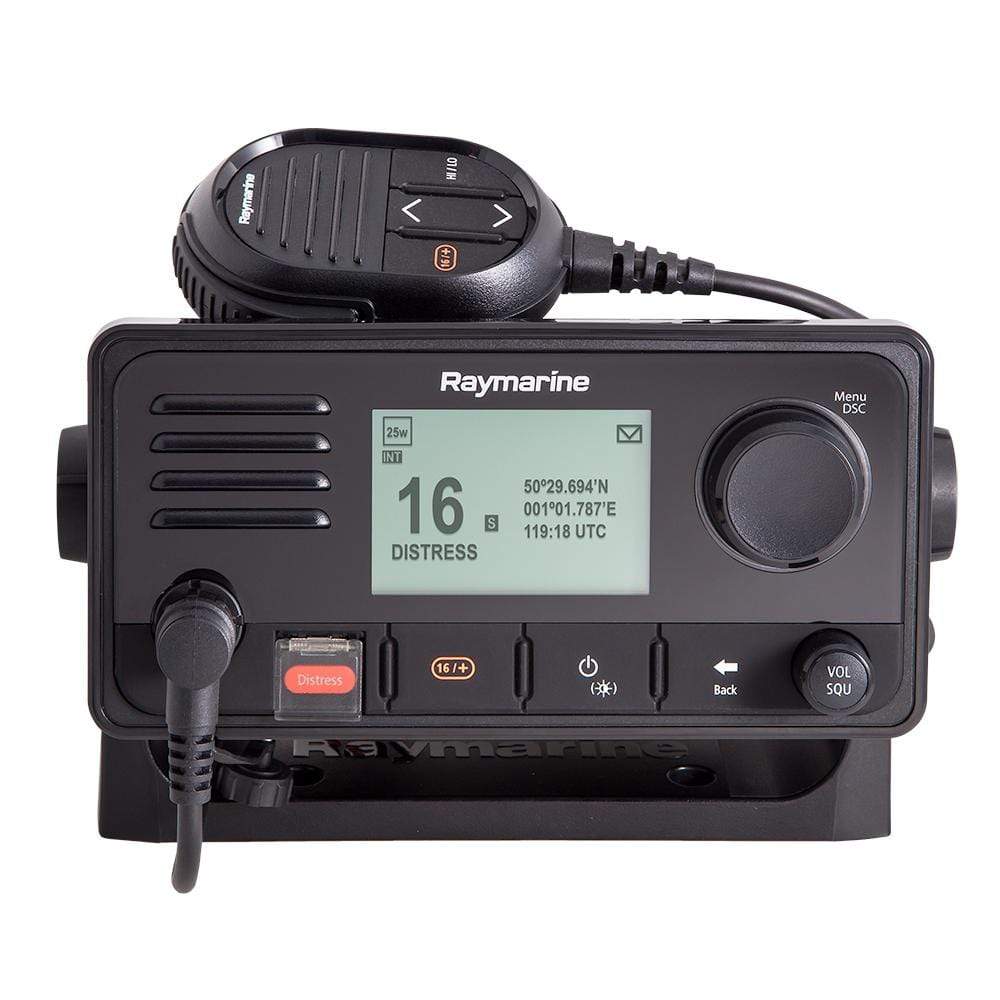

Raymarine E70517, Ray73 Marine VHF Radio with Hailer and GPS, Black, Small

Raymarine E70517, Ray73 Marine VHF Radio with Hailer and GPS, Black, Smallzoom

Attributes

Key Value
Adjacent channel select.More than 70 dB
Almanac updateAutomatic
Antenna impedance50 Ohms (typical)
Audio distortionLess than 10%
Base station speaker po.2.5 W (8 ?)
Channel Spacing12.5 kHz
ChannelsAll available US, Inter.
Cold start< 2 minutes
Country of Origin (subj.China
Current ConsumptionLess than 6 A at high p.
Dimensions25 ? 10 ? 10 cm
Distance119dBm (0.25uV) @ 12dB .
ExternalPassive antenna connect.
External speaker power5 W (8 ?)
FistMic speaker power1 W (16 ?)
Frequency Range156.000 MHz to 157.425 .
Frequency range156.050 MHz to 163.275 .
Frequency stability? 1.5 ppm
Geodetic DatumWGS-84 (alternatives av.
Hailer speaker power ou.25 W (4 ?) / 12 W (8 ?)
Handset speaker power o.1 W (16 ?)
High power setting25 W
Hum and noiseBetter than -40 dB
Inter modulation reject.More than 68 dB
InternalCeramic chip mounted ne.
Local110dBm (0.7uV) @ 12dB S.
Loud-hailer3 A (8 ?) / 6 A (4 ?)
Low power setting1 W
Maximum deviation? 5 kHz
Operating temperature-4? F (-20?C) to 140? F.
Price{{% print(Common.getFor.
Qty{{product.qty}} {{produ.
Receive2 Amp
Receiver IC Sensitivity-167 dBm (Tracking) / -.
Receiver typeDouble conversion super.
Refresh Rate10 Hz (10 times per sec.
Relative humidity95%
SensitivityBetter than 1 microvolt.
Signal AcquisitionAutomatic
Spurious emissionsBetter than -36 dBm at .
Spurious response rejec.More than 70 dB
Squelch sensitivityLess than -2 dB? EMF
Standby600 mA
Storage temperature-13? F (-25? C) to 158?.
Water proofingIPx6 & IPx7
Weight1 kg
With SBAS<= 5 meters 95% of the .
Without SBAS<= 15 meters 95% of the.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomHodges MarineRAYE70517789.6117RAYMARINE789.61 @ 1
SavingLotsE70517802.51In StockRaymarine802.5 @ 1
thumbzoomWholesale MarineXRAY-E70517809.991In StockRaymarine809.99 @ 1
thumbzoomthegpsstore.comRAE70517819.951In StockRAYMARINE819.95 @ 1
thumbzoomboatowners.comRAYMARINE-E70517820.671In StockRaymarine820.67 @ 1
thumbzoomAnchor Express75009821.991In StockRAYMARINE821.99 @ 1
thumbzoomritelinemarine.com75009868.9917Raymarine6.1868.99 @ 1
thumbzoomcoastaldepot.comE70517873.71In StockRAYMARINE873.7 @ 1
thumbzoomDefender878970886.991In StockRaymarine886.99 @ 1
boatersmarinesupply.comE70517892.0915RAYMARINE6.1892.09 @ 1
thumbzoomlg-outdoors.com5947558907.8811Raymarine907.88 @ 1
thumbzoomessenbaymarine.comCWR-75009907.951In StockRaymarine907.95 @ 1
thumbzoomfirstchoicemarine.comRAY-E70517923.6712Raymarine923.67 @ 1
thumbzoomrvautoparts.comRAYE70517956.29124Raymarine956.29 @ 1
thumbzoomunbeatablesale.comSWDMR1141966.131In StockRAYMARINE966.13 @ 1
thumbzoomcampsaver.com2OP-F75-RMNN11-E70517967.991In StockRaymarine967.99 @ 1
thumbzoomprimebuy.comE70517999.991In StockRaymarine999.99 @ 1
thumbzoomtdpep.comCR-75009999.991In StockRaymarine999.99 @ 1
thumbzoomcemarine.com75009999.991In StockRaymarine999.99 @ 1
thumbzoomdelawarepaddlesports.comE70517999.991In StockRaymarine6.1999.99 @ 1
thumbzoomsocalpowersports.comE70517999.991In StockRaymarine999.99 @ 1
thumbzoomwateryachtsolutions.comRAYE70517999.9914Raymarine999.99 @ 1
thumbzoomZoroG68507861127.81In StockRaymarine1127.8 @ 1
falsecreekfuels.comRAY-E705171421.991In StockRAYMARIN2.21421.99 @ 1
