Red Lion CUB30000

mpnCUB30000
brandname: Red Lion Controls
manufacturername: Red Lion Controls

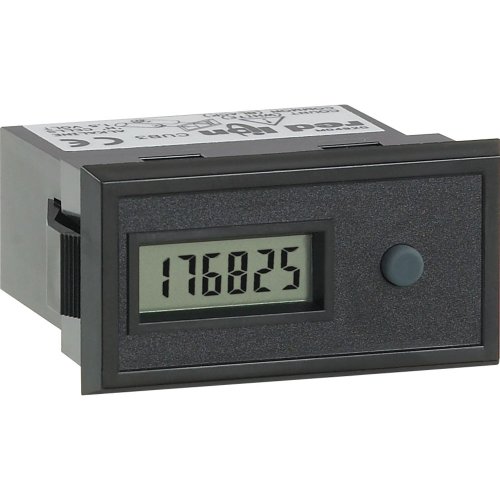

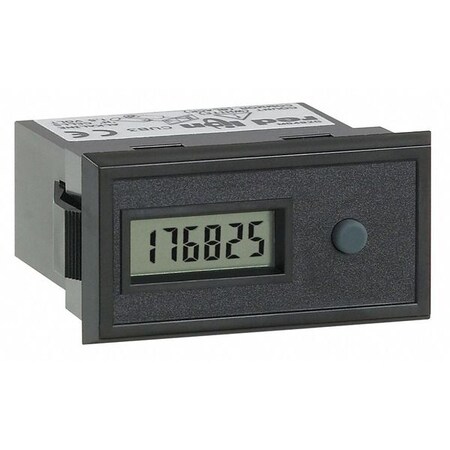

Red Lion CUB3 6-Digit Counter

Red Lion CUB3 6-Digit Counter

zoom

Brand: Red Lion
PartNumber: CUB30000
Model: CUB3
Size: Counter
PackageQuantity: 1
Binding: Misc.
Manufacturer: Red Lion Controls Inc
Label: Red Lion Controls Inc

Attributes

Key	Value
Accuracy	+/-1 digit
Application	Industrial
Approvals	EN 61010-1, IEC 1010-1
Bezel	NEMA 4X?IP65 Sealed Fro.
Character Height	0.2"
Connection Type	Snap-In
Connector Type	12" Wire Lead
Counter Type	Miniature Electronic
Country of Origin (subj.	United States
Depth	1.72"
Dimensions	1.10 H x 2.09 W x 1.87 .
Dimensions, Cutout, Inc.	51 x 21 mm mm
Display	LCD
Display Digit Height	5 mm mm
Display Type	LCD
Fits	1" x 2" Panel Cutout
Function	Counter
Height	1.10"
Includes	Instructions
Input Signal	1.5VDC Current Sinking,.
Input Signal Type	Switch Contact or Solid.
Input Type	Switch Contact or Solid.
Interface	None
Item	Electronic Counter
Loop Supply Voltage	3V Lithium
Manufacturers Warranty .	2 yr.
Max. Counts per Second	100
Maximum Opening Tempera.	75 ?C ?C
Maximum Operating Tempe.	75 ?C
Measuring Range	0 to 999999 hrs. hrs.
Min. On/Off Pulse	5 msec
Minimum Operating Tempe.	-30?C
Mounting	Snap-In
Mounting Type	Panel Mount
NEMA Rating	1
Number of Digits	6 Digits, 6
Output	None
Output Rating	None
Panel Cut Out	2 L x 1 H in., 50 L x 2.
Power Required	(2) 3V "N" Style Batter.
Prescaling Range	0.00001 to 9.99999
Preset	No
Primary Type	Electronic
Reset Type	Front Panel Push Button
Scaler	No
Series	CUB3, CUB Series
Special Features	Operates From Switch Co.
Standards	CE Approved, Safety: IE.
Supply Voltage	3 VDC VDC
Temperature Range	-30 to +75 ?C ?C
Type	Electronic
Width	2.09"

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G4286055	34.99	1	In Stock	10	Red Lion		34.99 @ 1
	us.rs-online.com	70030336	40.06	1	In Stock		Red Lion Controls		40.06 @ 1
	Hotenda	H2266239	40.4	1	168		Red Lion Controls		40.4 @ 1
	Carlton Bates Company	78073698964	45.5	1	In Stock		RED LION CONTROLS		45.5 @ 1
	Radwell	CUB30000	117.0	1	1		RED LION CONTROLS		117.0 @ 1
