Red Hat 8210G009LF12DC

B07BPMPTBW

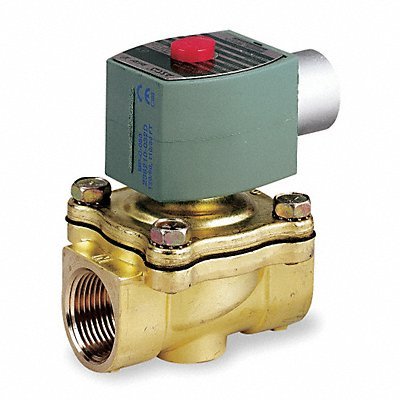

12VDC Brass Solenoid Valve, Normally Closed, 3/4" Pipe Size

12VDC Brass Solenoid Valve, Normally Closed, 3/4" Pipe Sizezoom

Attributes

Key Value
Body Material - ValvesBrass
Center Line Pipe Center.2 31/32 in
Coefficient of Volume5
Coil EnclosureF
Coil Insulation ClassF
ComplianceCSA, UL
Electrical Connections16 in Leads
IP Rating65
ItemSolenoid Valve
Max. Fluid Temp.180 Degrees F
Max. Operating Pressure.100 psi
Max. Operating Pressure.75 PSI
Max. Operating Pressure.90 psi
Media - ValvesAir, Inert Gases, Light.
Min. Operating Pressure.5 PSI
NEMA Rating4X
Orifice Dia.3/4 in
Overall Height3 21/32 in
Overall Length2-9/32 in
Overall Width2 13/16 in
Pipe Size - Valves3/4 in
Seal Material - ValvesNBR
StandardsCSA, UL
Valve ConfigurationNormally Closed
Valve Ways and Positions2-Way/2-Position
Voltage12V DC
Watts11.6 W
