REED Instruments R2160

B08HSBS679

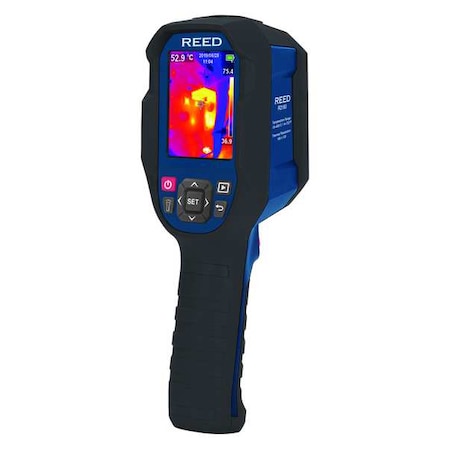

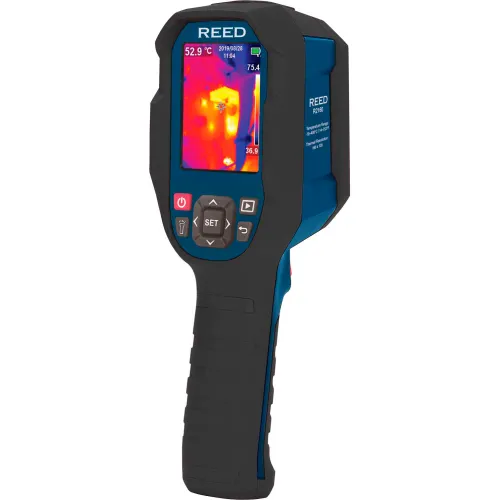

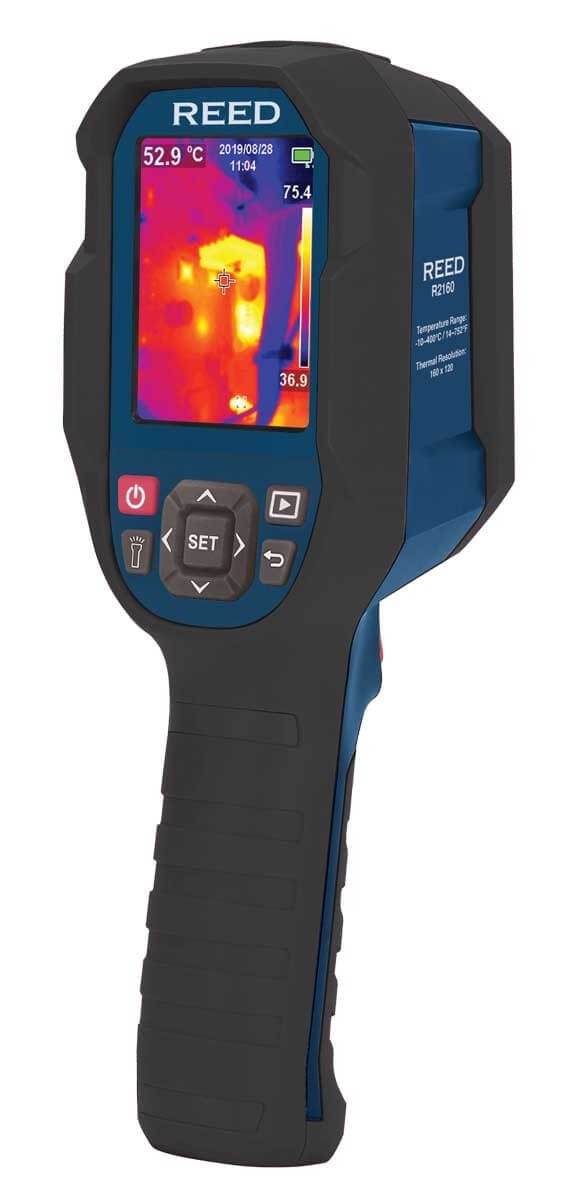

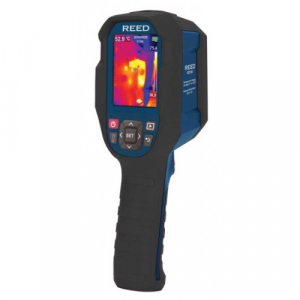

REED Instruments R2160 Thermal Imaging Camera, 160 x 120

REED Instruments R2160 Thermal Imaging Camera, 160 x 120zoom

Attributes

Key Value
Accuracy?3.6?F (2?C) or ?2% of .
AlarmYes
Ambient Temp. Range0 Degrees C - 50 Degr.
Ambient Temp. Range (F)32 Degrees - 122 Degre.
Auto FocusYes
Auto Shut-OffYes (user adjustable 5/.
Automatic Hot/Cold Dete.Auto hot or cold spot-m.
Battery LifeApproximately 6 hours
BrandReed Instruments
Center SpotYes
Charge Time4 hours
Charging SystemIn camera
ColorBlack
Color Palettes5 (Iron/Rainbow/Gray/Re.
Data Logging - Instrume.Yes
Detector Resolution - I.160 x 120 Pixels
Detector TypeUncooled microbolometer.
Dimensions9.3 x 3 x 3.4" (236 x 7.
Display2.8" color TFT
Display - IR CameraTFT Color LCD
Display Resolution320 x 240 pixels
Display Resolution - IR.160 x 120 Pixels
Drop TestedYes, 2 m
EmissivityAdjustable (0.01 to 0.9.
External MemoryMicro SD card
Field of View56 Degrees Horizontal .
Field of View (FOV)56 x 42?
Field of View - IR Came.57.0 Degrees Horizonta.
File FormatsBMP
FocusFixed
Focus Distance - Infrar.Minimum of 0.25 m, Mini.
Focus MethodAuto
Frame Rate - IR Camera9 Hz
Image Capture Frequency9Hz
Image FormatBMP
Image Frequency9 Hz
Image NotationNo
Included ChargerYes
Includes16 GB Micro SD Card, Le.
International ShippingNo
IR Detector Resolution160 x 120 (19,200) Pixe.
IR Resolution160 x 120 (19,200 pixel.
ItemCamera, Infrared Camera
Item - Infrared CameraInfrared Camera
Laser SightingNo
Lead TimeExpected to ship in 1-2.
LED FlashlightYes
Lens7.5 mm
Low Battery IndicatorYes
Manufacturers Warranty .1 yr., 1 yr
Maximum Operating Altit.6561' (2000m)
Minimum Focus Distance0.82' (0.25m)
MpnR2160
Multiple Lens OptionNo
NIST CertifiedNo
Operating/Storage Humid.10 to 90%
PC ConnectivityUSB Cable (Type-C)
Picture In PictureNo
Power Requirement3.7V/5000mAh Rechargeab.
Power Supply3.7V/5000mAh Rechargeab.
Product CertificationsCE, IP65, 6.5' (2m) dro.
Removable Memory CardYes
Resolution0.1?F/?C
Safety RatingCE
Series - IR CameraFLIR E Series
SKUGLO-B3076531
SoftwareYes (download from webs.
Software OS Compatabili.Windows 7/8/10
Spatial Resolution(IFOV) 11mrad
Special FeaturesHigh and Low temperatur.
Spectral Range8 to 14?m
Spectral Response - Inf.8.0 to 14.0um, 8.0 - 14.
StandardsCE, IP65, 6.6 ft. (2 m).
SubCategoryTools & Instruments
Supported LanguagesEnglish and French
Temp. Accuracy (C) - In.+/-2.0 Degrees
Temp. Accuracy (F) - In.+/-3.6 Degrees
Temp. Range14 Degrees to 752 Degr.
Temp. Range (C) - Infra.-18 Degrees - 400 Degr.
Temp. Range (F) - Infra.14 Degrees - 662 Degre.
Temperature Alarm Indic.High/Low (user adjustab.
Temperature Range14 to 752?F (-10 to 400.
Thermal and Visible Lig.No
Thermal Sensitivity (NE.<0.05?C (50mK)
Thermal Sensitivity - I.50 mK
Tripod MountableYes
TypeInfrared
UPC800837005113
Weight1lbs (454g)
WirelessNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
grainger.caREER2160414.609419441In StockREED INSTRUMENTS2.0414.60941944 @ 1
thumbzoomusmegastore.comR2160449.11In StockREED Instruments1.0449.1 @ 1
thumbzoomGlobal IndustrialWBB3076531449.951In StockREED Instruments449.95 @ 1
thumbzoomZoroG9216569477.281In StockReed Instruments1.84477.28 @ 1
globaltestsupply.comR2160499.01In StockREED Instruments499.0 @ 1
thumbzoomNational Supply Network10165793523.651In StockREED Instruments523.65 @ 1
thumbzoomsimsupply.comGLO-B3076531532.261In StockReed Instruments532.26 @ 1
thumbzoomRaptor SuppliesCE7YMH592.9106041In StockREED INSTRUMENTS592.910604 @ 1
