- mpnR2810
- brandname: Reed Instruments
- manufacturername: Reed Instruments

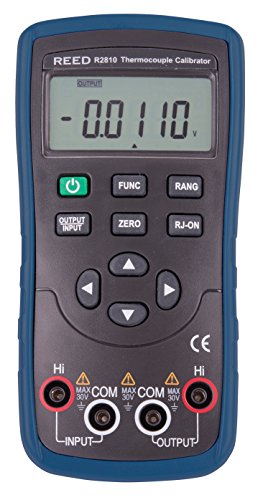

REED Instruments R2810 Thermocouple Calibrator (8 Thermocouple Types R, S, B, E, K, J, T, N)
- Brand: REED Instruments
- PartNumber: R2810
- Model: R2810
- Color: Blue
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: REED Instruments
- Label: REED Instruments
Attributes
| Key | Value |
|---|
| Accuracy | 0.05% |
| Agency Compliance | CE |
| Auto Power Off | Yes |
| Calibration Certificate | NIST |
| Data Hold | No |
| Display | LCD |
| Display Functions | Degrees C/ Degrees F Sw. |
| FM Approved | No |
| For Thermocouple Type | Type B, Type E, Type J,. |
| Includes | Alligator Clips, Batter. |
| Item | Thermocouple Calibrator |
| Manufacturer Warranty L. | 1 yr |
| Manufacturers Warranty . | 1 yr |
| Measurement Functions | Temperature, Voltage |
| Number of Digits | 6 |
| Powered By | (2) AA Batteries |
| Sensor Maximum Temperat. | 1,832 Degrees F (Type E. |
| Source Voltage | 100mV, 1V |
| Source/Simulate | T, mV |
| Thermocouple Temperatur. | -328 Degrees to 2498 D. |
| Thermocouple Temperatur. | -200 Degrees to 1,370 . |
| Thermocouple Temperatur. | -328 Degrees to 2,498 . |
| Thermocouple Type | J, K, T, E, R, B, N, an. |
| Voltage Measurement Ran. | -10mV to 110mV DC |
