- mpnR3001
- brandname: Reed Instruments
- manufacturername: Reed Instruments

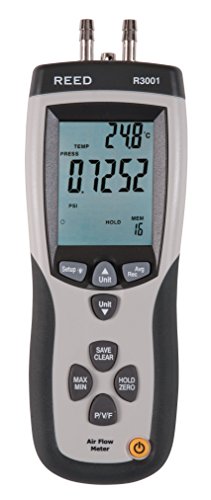

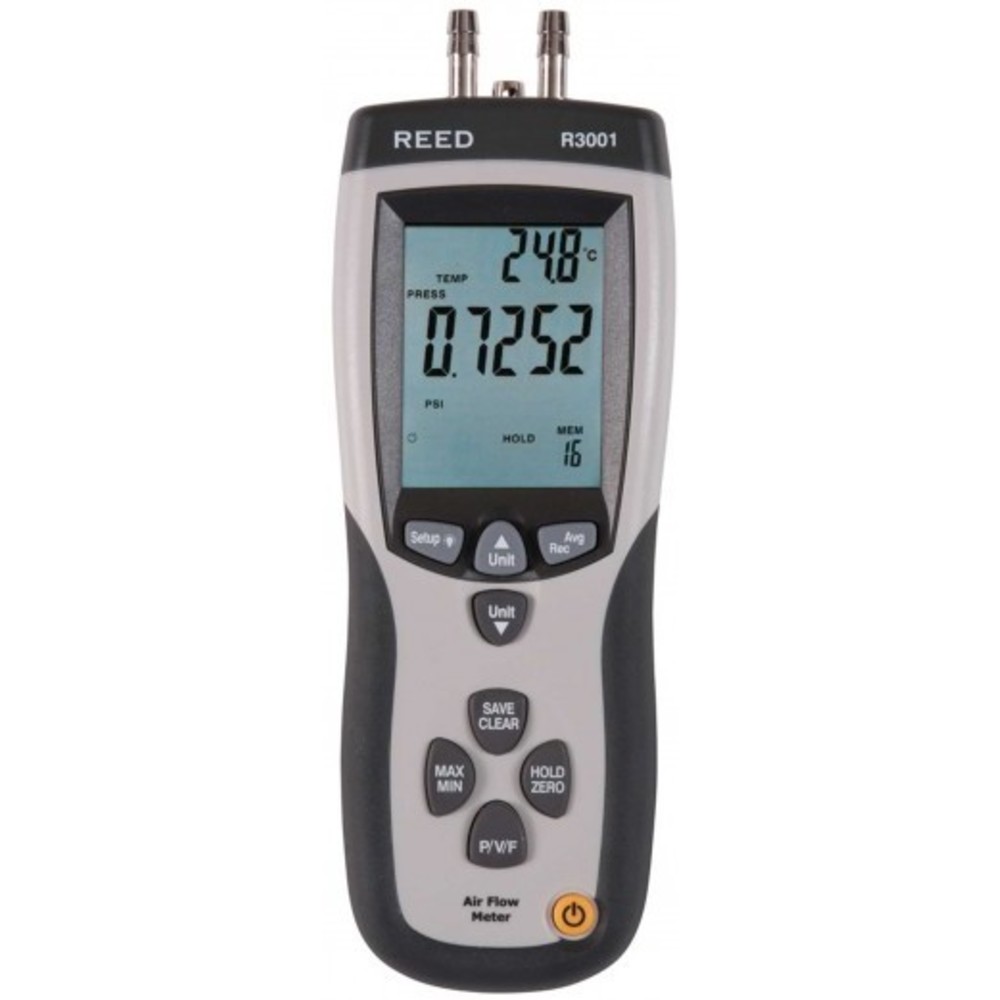

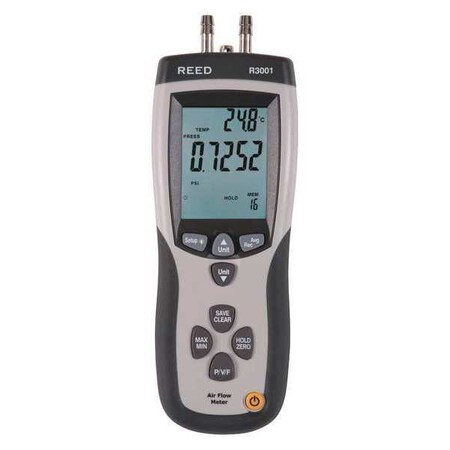

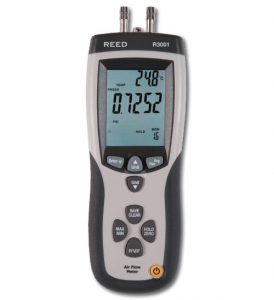

REED Instruments R3001 Pitot Tube Anemometer and Differential Manometer, with Air Volume (CFM/CMM)
- Brand: REED Instruments
- PartNumber: R3001
- Model: R3001
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: STANDARD INSTRUMENTS CO LTD
- Label: STANDARD INSTRUMENTS CO LTD
Attributes
| Key | Value |
|---|
| Accuracy | ?0.3% FS |
| Air Velocity Resolution | 1 fpm |
| Air Volume Calculation . | Yes |
| Air Volume Resolution | 0.001 cfm |
| Air Volume Units | cfm, cmm |
| Application | Troubleshoot heating ve. |
| Auto Power Off | Yes |
| Auto Shut-off | Yes (after 20 mins) |
| Average | Yes |
| Backlit Display | Yes |
| Batteries Required | Yes |
| Battery Type | 9V |
| Calibration Certificate. | No |
| Connection Material | Stainless Steel |
| Country of Origin (subj. | China |
| Data Hold | Yes |
| Data Interface | USB |
| Datalogging Capabilities | Yes |
| Differential Pressure | Yes |
| Digital Display Features | 4 Digit LCD Display |
| Dimensions | 8.2 x 2.9 x 1.9" (210 x. |
| Display | 5-digit, Dual LCD Displ. |
| Display Units | inH2O, mbar, mmH2O, pa,. |
| Environment Maximum Tem. | 122 Degrees F |
| Environment Minimum Tem. | 32 Degrees F |
| Environment Temperature. | +/-3 Degrees F |
| Environment Temperature. | 0.1 Degrees F |
| For Tubing Diameter | 1/4 in |
| Includes Batteries | Yes |
| Includes Gas Pressure K. | No |
| Includes Stand | No |
| Internal Memory | Yes |
| Item | Analog Manometer |
| Linearity/Hysteresis | ?0.29% FS |
| Low Battery Indicator | Yes |
| Max | Yes |
| Max Pressure | 10 psi |
| Maximum Air Velocity | 15,733 fpm |
| Maximum Air Volume | 99,999 cfm |
| Maximum Operating Press. | 10 psi |
| Maximum Operating Tempe. | 122 Degrees F |
| Maximum Pressure | 10 psi |
| Min | Yes |
| Min/Max Capture | Yes |
| Minimum Air Velocity | 1 mps |
| Minimum Air Volume | 0 cfm |
| Minimum Operating Tempe. | 32 Degrees F |
| Minimum Pressure | 0.752 psi |
| NIST Traceable Certific. | No |
| Operating Humidity | 10-80% |
| Operating Temperature | 32 to 122?F (0 to 50?C) |
| Over range Indicator | Yes |
| Overall Height | 1.9 in |
| Overall Length | 8.2 in |
| Overall Width | 2.9 in |
| PC Connectivity | USB Cable (Included) |
| Power Supply | 9V battery |
| Pressure Accuracy | +/-0.3% FS |
| Pressure Resolution | 0.0001 psi |
| Pressure Units | inH2O, mbar, mmH2O, pa,. |
| Process Connection Size | 1/4 in |
| Process Connection Type | Hose Barb |
| Product Certifications | CE |
| Real-Time Clock and Dat. | Yes |
| Repeatability | ?0.2% FS |
| Response Time | 2 times/sec. |
| Scale Units | in H2O, mbar, mm H2O, P. |
| Series | Not Applicable |
| Software | Yes (included) |
| Software OS Compatibili. | Windows XP, 7, 8 and 10 |
| Storage Temperature | 14 to 140?F (-10 to 60?. |
| Storage Temperature Ran. | 14 to 140 Degrees F |
| Temperature Units | Degrees C, Degrees F |
| Tripod Mountable | Yes |
| Under range Indicator | Yes |
| Weight | 12 oz (340g), 12 oz |
| Zero Button | Yes |
| Zero Function | Yes |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | R3001 | 395.2 | 1 | In Stock | | REED Instruments | 0.75 | 395.2 @ 1 |
 | usmegastore.com | R3001 | 404.1 | 1 | In Stock | | REED Instruments | 0.75 | 404.1 @ 1 |
 | Zoro | G0642822 | 424.31 | 1 | In Stock | 7 | Reed Instruments | 6.72 | 424.31 @ 1 |
| globaltestsupply.com | R3001 | 449.0 | 1 | In Stock | | REED Instruments | | 449.0 @ 1 |
 | National Supply Network | 10165868 | 542.37 | 1 | In Stock | | REED Instruments | | 542.37 @ 1 |
 | Raptor Supplies | CD4DKY | 592.910604 | 1 | In Stock | | REED INSTRUMENTS | | 592.910604 @ 1 |
