REED Instruments R5000

B074CX3HBB

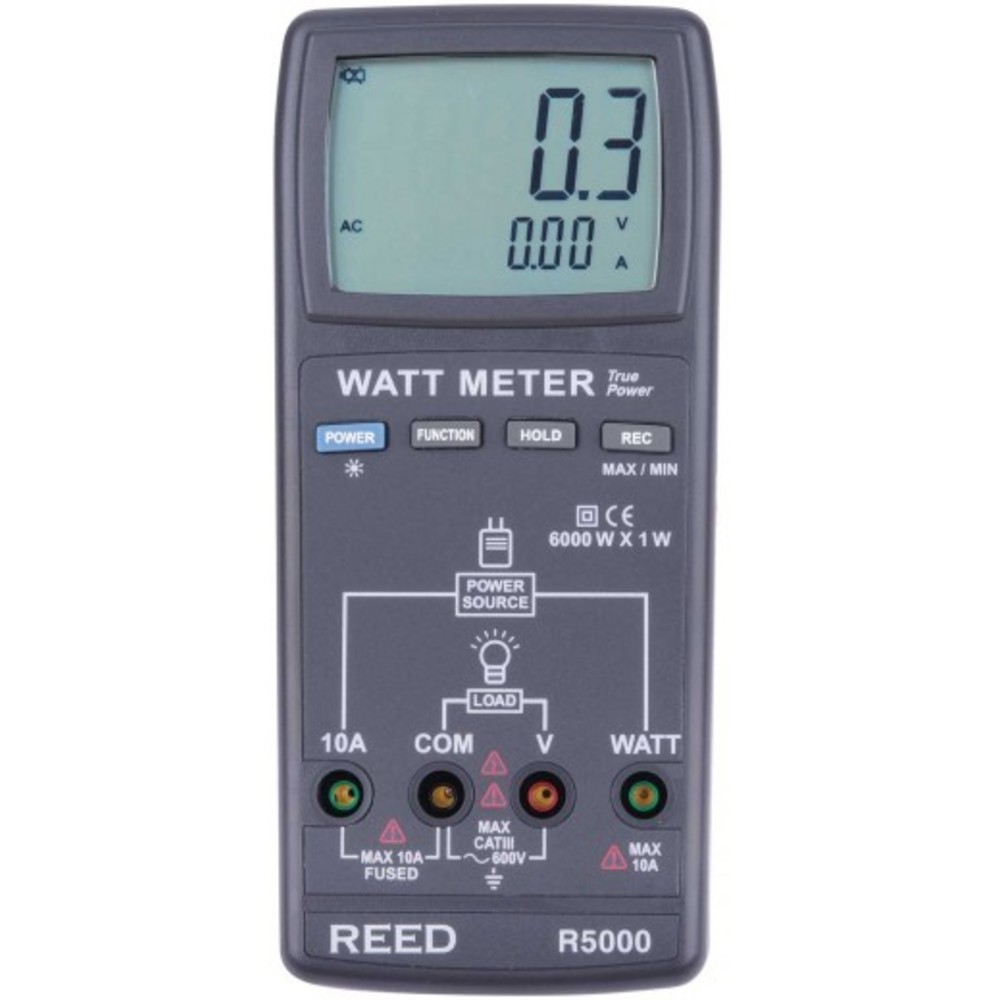

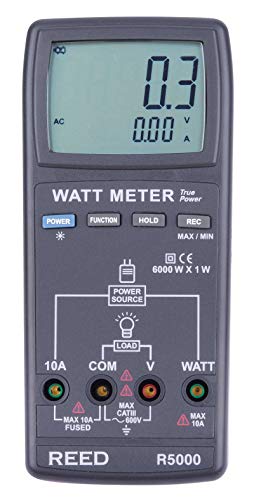

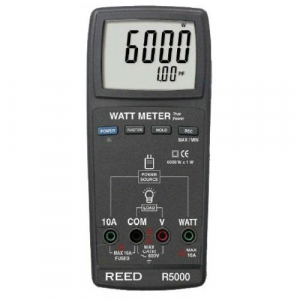

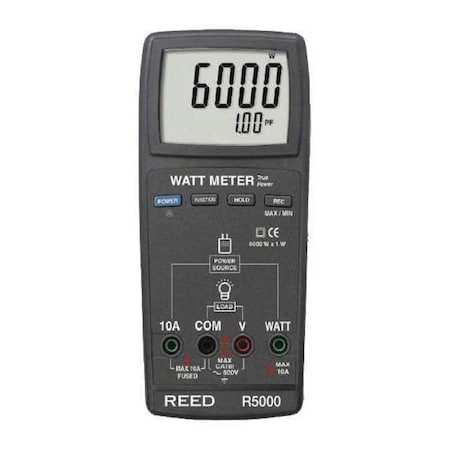

REED Instruments R5000 Autoranging Watt Meter, True RMS

REED Instruments R5000 Autoranging Watt Meter, True RMSzoom

Attributes

Key Value
AC ResponseTRMS
Accuracy?(1% + 5W), ?(0.3% + 0..
BrandReed Instruments
Calibration CertificateNIST
CategoryTest and Measurement
Current Accuracy+/-0.3% +0.03A
Current Channels1
Current Stock3
Data LoggingNo
DescriptionWatt Meter
Detailed DescriptionVoltage Detector CAT II.
Digi-Key Part Number2867-R5000-ND
Dimensions190 x 88 x 40mm (7.5 x .
DisplayLCD
IncludesTest Leads and Battery
International ShippingNo
ItemWatt Meter
Kit Current Capability10A
Lead TimeExpected to ship in 1-2.
Leakage Current MeasuredNot Applicable
ManufacturerReed Instruments
Manufacturer Product Nu.R5000
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
Max. AC Amps10
Max. AC Voltage600
Max. Watts6000MW
Maximum AC Voltage Meas.600 V
MfrReed Instruments
MpnR5000
Operating HumidityLess than 80% RH
Operating Temperature0 to 50?C (32 to 122?F)
PackageRetail Package
Peak CaptureYes
Phase1
Power Factor0 to 1
Power Supply1 x 9V Battery
Product StatusActive
Range600V, 1.00, 10A, 6000W
RatingsCAT III 600V
Resolution0.01, 0.1V, ?(0.3% + 0..
Safety RatingCat III 600V, CE
Sampling Rate1 sec
Sampling TimeApprox. 1 second
Series-
SKUZO-G7649890
SpecificationsMeasures AC Voltage 0 ~.
StorageMin/Max
SubCategoryTest Instruments
TypeVoltage Detector
UPC800837001177
Voltage Accuracy+/-0.3%
Voltage Channels1
Weight398g (0.88lbs)
ZeroAutomatic adjustment

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
quill.com901-2428570950.991In StockReed Instruments50.99 @ 1
thumbzoomZoroG7649890260.1113Reed Instruments1.4260.1 @ 1
Grainger52ZK73280.751280REED INSTRUMENTS280.75 @ 1
thumbzoomMegadepotR5000291.81In StockREED Instruments398.0291.8 @ 1
thumbzoomsimsupply.comZO-G7649890307.913Reed Instruments307.9 @ 1
thumbzoomusmegastore.comR5000323.11In StockREED Instruments398.0323.1 @ 1
globaltestsupply.comR5000359.0113REED Instruments359.0 @ 1
thumbzoomDigi-Key13164937371.0132REED Instruments371.0 @ 1
thumbzoomRaptor SuppliesCD4DGN381.63089251In StockREED INSTRUMENTS381.6308925 @ 1
