- mpnR5050
- brandname: Reed Instruments
- manufacturername: Reed Instruments

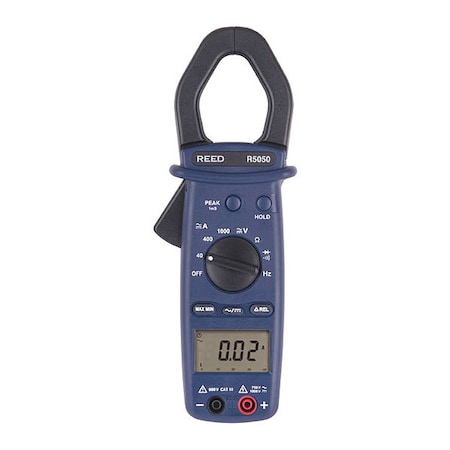

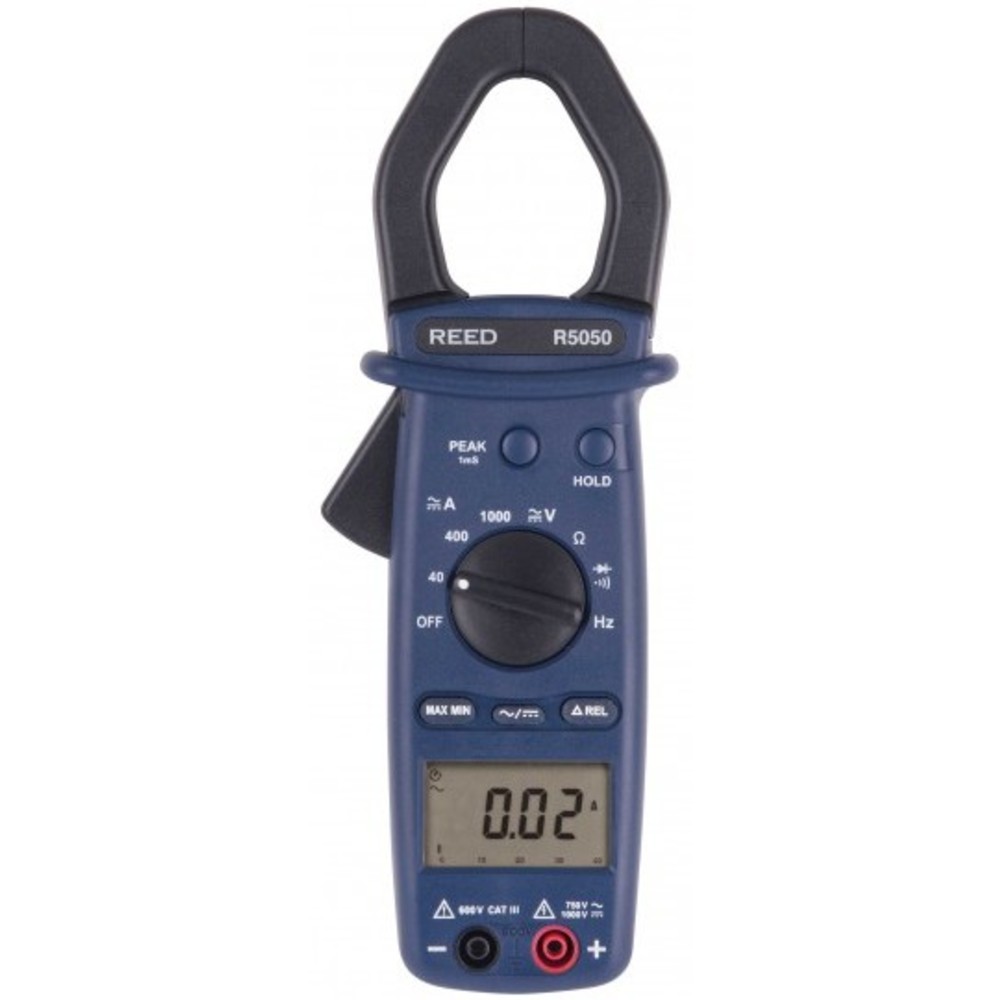

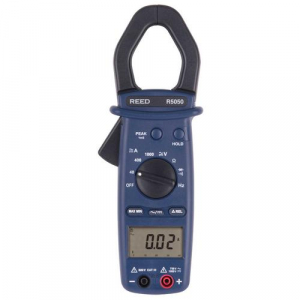

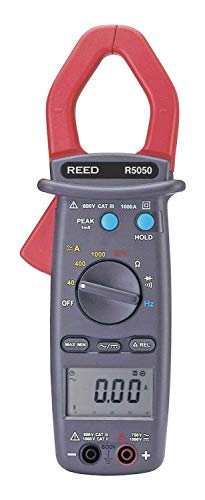

REED Instruments R5050 True RMS AC/DC Clamp Meter, 1000A
- Brand: REED Instruments
- PartNumber: R5050
- Model: R5050
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CENTER TECHNOLOGY CORPORATION
- Label: CENTER TECHNOLOGY CORPORATION
Attributes
| Key | Value |
|---|
| Accuracy | ?(0.1% rdg. +1 dgt.), A. |
| Analog Bargraph | Yes (42-segment) |
| Autoshut off | Yes (after 30 mins) |
| Category | Test and Measurement |
| Continuity Check | Audible signal if resis. |
| Country of Origin (subj. | Taiwan, Province of Chi. |
| Description | 1000A TRUE RMS AC/DC CL. |
| Detailed Description | Current Meter, Clamp/Pr. |
| Digi-Key Part Number | 2867-R5050-ND |
| Dimensions | 9.5x 2.6 x 1.4" (242 x . |
| Diode Test | Yes |
| Display | 4,000 count LCD display |
| Display Hold | Yes |
| Item | Clamp Meter,TRMS,1000A . |
| Jaw Opening | 1.5" (40mm), up to 500 . |
| Low Battery Indicator | Yes |
| Manufacturer | REED Instruments |
| Manufacturer Product Nu. | R5050 |
| Max/Min | Yes |
| Mfr | REED Instruments |
| Operating Temperature | 32 to 104?F (0 to 40?C) |
| Overvoltage Category | CAT. III 600V, CAT. II . |
| Package | Retail Package |
| Peak Hold | Yes |
| Power Supply | 9V Battery |
| Product Certifications | CE |
| Product Status | Active |
| Range | 4kHz, 10kHz, AC: 400, 7. |
| Range Selection | Autoranging / Manual |
| Ratings | CAT II 1000V, CAT III 6. |
| Relative Mode | Yes |
| Resolution | 0.01, 0.1, 1A, 0.1, 1V,. |
| Series | - |
| Specifications | DMM Functions Include V. |
| Storage Temperature | 14 to 140?F (-10 to 60?. |
| True RMS | Yes |
| Type | Current Meter, Clamp/Pr. |
| Weight | 14oz (400g) |
| Zero Push Button Adjust. | Yes |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Megadepot | R5050 | 155.9 | 1 | In Stock | | REED Instruments | 0.875 | 155.9 @ 1 |
 | usmegastore.com | R5050 | 155.9 | 1 | In Stock | | REED Instruments | 0.875 | 155.9 @ 1 |
| globaltestsupply.com | R5050 | 159.0 | 1 | In Stock | | REED Instruments | | 159.0 @ 1 |
 | Digi-Key | 13165060 | 171.0 | 1 | 50 | | REED Instruments | | 171.0 @ 1 |
 | Zoro | G0887859 | 210.22 | 1 | In Stock | 5 | Reed Instruments | 1.55 | 210.22 @ 1 |
 | Raptor Supplies | CD4DEZ | 223.1683155 | 1 | In Stock | | REED INSTRUMENTS | | 223.1683155 @ 1 |
 | industrialstores.com | R5050 | 290.92 | 1 | In Stock | | Reed Instruments | | 290.92 @ 1 |
