REED Instruments R7800

B082J852ZV

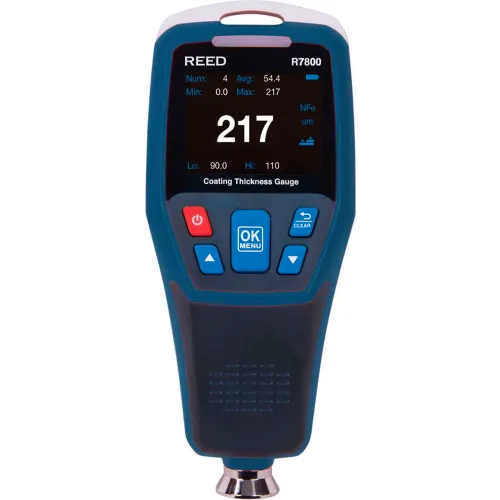

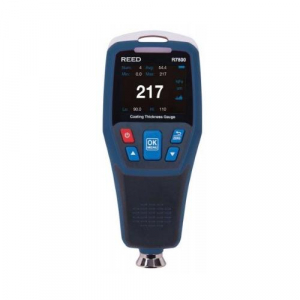

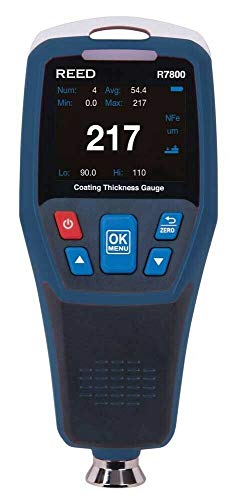

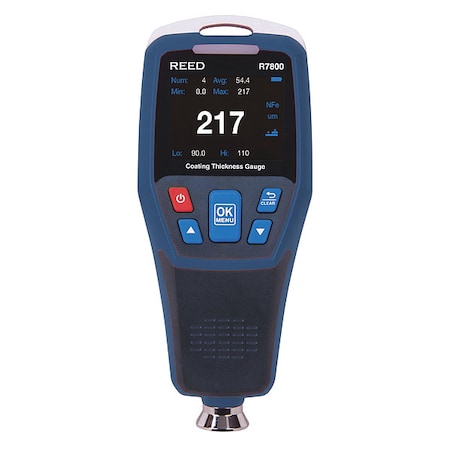

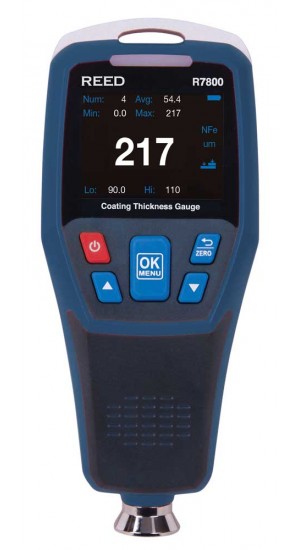

REED Instruments R7800 Coating Thickness Gauge

REED Instruments R7800 Coating Thickness Gaugezoom

Attributes

Key Value
Accuracy0 to 1250 micronm: +/-.
Auto Shut-OffYes (After 5 minutes)
Backlit DisplayYes (5 levels)
Base MaterialFerrous and Non-Ferrous.
Battery TypeAA
Calibration CertificateNo
CategoryTest and Measurement
Country of Origin (subj.China
Data StorageYes
DescriptionCOATING THICKNESS GAUGE
Detailed DescriptionThickness Tester/Gauge
Digi-Key Part Number2867-R7800-ND
Dimensions5.9" x 2.6" x 1.38" (15.
Display4-digit color LCD displ.
For Use With/Related Pr.-
InterfaceUSB
Internal MemoryYes (Up to 500 groups)
ItemR7800
Low Battery IndicatorYes
ManufacturerREED Instruments
Manufacturer Product Nu.R7800
Manufacturers Warranty .1 yr
Measurement ModesSingle and Continuous
Measuring Range0 to 1250 micronm, 0.1 .
MfrREED Instruments
Min/Max/Average ReadingsYes
Minimum Area Diameter20mm (787.40mils)
Minimum Curvature Radius5mm (196.85mils)
Minimum Substrate Thick.0.5mm (19.69mils)
Operating Humidity Range?80%RH
Operating Temperature32 to 104?F (0 to 40?C)
PackageRetail Package
PC ConnectivityUSB Cable
Power Supply2 x AA Batteries
Product CertificationsCE
Product StatusActive
Product TypeR7800
Recording Capacity500
Refresh Rate0.5 seconds (continuous.
Resolution320 x 240 pixels
Series-
SoftwareYes
Storage Temperature-4 to 140?F (-20 to 60?.
Tool TypeThickness Tester/Gauge
TypeStandard Electronic; Fe.
Weight6.35oz (180g)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGlobal IndustrialWBB3076534257.951In StockREED Instruments257.95 @ 1
thumbzoomusmegastore.comR7800259.81In StockREED Instruments0.396875259.8 @ 1
globaltestsupply.comR7800279.01In StockREED Instruments279.0 @ 1
thumbzoomZoroG8252294282.271In Stock7Reed Instruments2.5282.27 @ 1
thumbzoomDigi-Key13165092291.01275REED Instruments291.0 @ 1
thumbzoomNational Supply Network10166197316.891In StockREED Instruments316.89 @ 1
thumbzoomRaptor SuppliesCD7ABN391.08367351In StockREED INSTRUMENTS391.0836735 @ 1
