- mpnRSR-9312-E
- brandname: Remke
- manufacturername: Remke

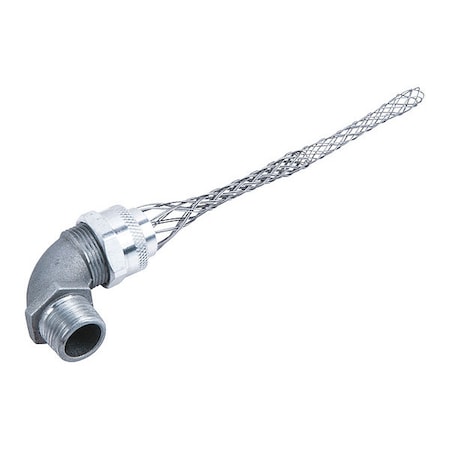

Cord Grip Complete Assembly
- Brand: REMKE
- PartNumber: RSR-9312-E
- Manufacturer: Remke Industries
- Label: Remke Industries
Attributes
| Key | Value |
|---|
| A Dimension (in) | 0.99 |
| Angle | 90 deg, 90 Degrees |
| Approvals | CSA, UL |
| B Dimension (in) | 0.63 |
| Body Material | Aluminum |
| Brand | Remke |
| Bushing Holes | 1 |
| Bushing Material | Neoprene |
| C Dimension (in) | 2.41 |
| Cable Diameter (in) | 0.63-0.75 " |
| Cable Diameter (mm) | 15.88-19.05 mm |
| Cable Openings | 5/8 to 3/4 in |
| Cable Style | Round |
| Case Pack | 1 |
| Catalog Number | RSR-9312-E |
| Composition | Metallic |
| Conduit Size | 1 |
| Connection Type | Male Threaded x Compres. |
| Cord Grip Type | 90 Degree |
| CSA Specification | 28985 |
| D Dimension (in) | 3.13 |
| Description: | Cord Grip, alum, 90 deg. |
| Dimensions | 3.13 in H x 1.74 in W x. |
| E Dimension (in) | 1.44 |
| F Dimension (in) | 1.74 |
| Family Series | Remke Industries Cable . |
| Flammability Rating | UL 94HB |
| Form Size | 4 |
| G Dimension (in) | 2 |
| Grip Type | Bushing Grip with Strai. |
| Gross Weight | 0 lbs |
| Hazardous Class/Division | Class 1, Div 2" |
| Hazardous Rated | Yes |
| Hub Size | 1 NPT |
| Inside Body Diameter / . | 1 |
| IP Rating | IP52, IP54, IP65, IP67 |
| Item | Cord Grip,90 deg.,1",.6. |
| Item Number | RSR-9312-E |
| Manufacturer | Remke Industries, Remke |
| Manufacturer Part Number | RSR-9312-E |
| Material | Aluminum |
| Max Cable Range over Ja. | 0.75 |
| Maximum Cable Diameter . | 0.75 " |
| Maximum Cable Diameter . | 19.05 mm |
| Maximum Knock Out Size . | 1.406 |
| Maximum Operating Tempe. | 121 |
| MFG Part #: | RSR-9312-E |
| Min Cable Range over Ja. | 0.625 |
| Minimum Cable Diameter . | 0.625 " |
| Minimum Cable Diameter . | 15.88 mm |
| Minimum Operating Tempe. | -40 |
| NEMA Rating | 3, 3R, 4, 12 |
| Net Weight | 0 lbs |
| Number of Cables | 1 |
| Product Series | RSR |
| RoHS | No |
| Series | RSR |
| Split Frame | No |
| Supplier: | Remke Industries |
| Temperature Rating | -40 to 250 deg F |
| Thread Size | 1 |
| Trade Size | 1 in |
| Type | Form Size 4 |
| UPC | 785411401331 |
| UPC: | 785411401331 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G7201317 | 55.99 | 1 | In Stock | | Remke | 0.32 | 55.99 @ 1 |
 | Lighting Supply | RSR-9312-E | 67.09 | 1 | In Stock | | Remke | | 67.09 @ 1 |
 | Galco | RSR-9312-E-RMKE | 75.42 | 1 | In Stock | | Remke Industries | | 75.42 @ 1 |
| Hawk Electronics | RSR-9312-E | 76.3 | 1 | In Stock | | REMKE | | 76.3 @ 1 |
| kscdirect.com | REM RSR-9312-E | 78.47 | 1 | In Stock | | Remke Industries | | 78.47 @ 1 |
 | MRO Supply | 5780489 | 80.0 | 2 | In Stock | | Remke | | 80.0 @ 2 |
| crescentelectric.com | 947974 | 121.82 | 1 | In Stock | | Remke | | 121.82 @ 1 |
