Rice Lake 91765

B07ZQPVLWZ

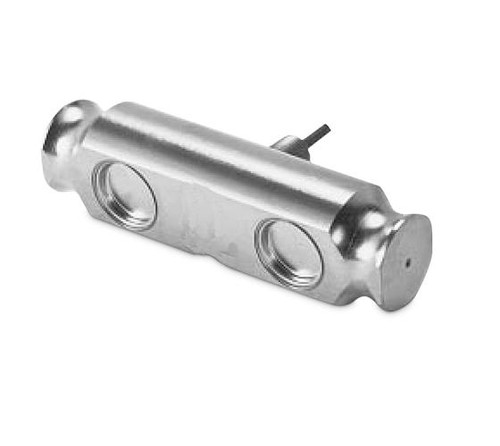

Rice Lake 91765, Double Ended Beam Load Cell, 50K lb Cap, Stainless Steel, NTEP

Rice Lake 91765, Double Ended Beam Load Cell, 50K lb Cap, Stainless Steel, NTEPzoom

Attributes

Key Value
Cable Color CodeRed = + Excitation, Bla.
Cable Diameter0.305 polyurethane jack.
Cable Length35 ft
Capacity Rating50,000 lb / 22,679.6 kg
CertificationNTEP certified Class II.
Combined Error0.03% full scale
Compensated Temperature.14?F to 104?F / -10?C t.
Conduit adapter1/2 14 NTP
Construction / FinishStainless Steel
Deflection at Capacity0.01"
Full Scale Output2.0 +/- 0.1% mV/V
Height2.5"
Input Resistance686-714 ohms
Insulation Resistance5000 megohms
Interchangeable ProductsCardinal DB50000S
Length8.25"
ManufacturerRice Lake Weighing Syst.
ModelRLDB50000S-50K
Nonrepeatability0.01% full scale
Operating Temperature R.-40?F to 150?F / -40?C .
Other ApprovalscFM, CE
Output Resistance699-707 ohms
Part Number91765
Rated Excitation5-10 VDC (maximum of 15.
Safe Overload150% capacity
Safe Side Load100 % capacity
Seal TypeIP67 Welded Seal
Width1.8"

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomscalesplus.com917651062.591In StockRice Lake Weighing Systems1062.59 @ 1
