- mpnIMZ2AT108
- brandname: Rohm Semiconductor
- manufacturername: Rohm Semiconductor

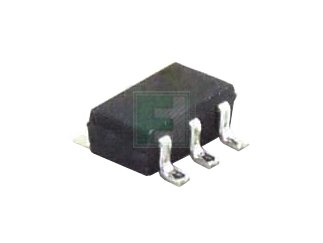

ROHM SEMICONDUCTOR IMZ2AT108 IMZ2A Series 50 V 150 mA Surface Mount Dual NPN/PNP Digital Transistor - SC-74 - 3000 item(s)
- Brand: Rohm Semiconductor
- PartNumber: IMZ2AT108
- Model: IMZ2AT108
- PackageQuantity: 1
- Manufacturer: ROHM SEMICONDUCTOR
- Label: ROHM SEMICONDUCTOR
Attributes
| Key | Value |
|---|
| Alternate Part No. | 755-IMZ2AT108 |
| Base Product Number | IMZ2AT108 |
| Brand | Rohm Semiconductor |
| Category | Discrete Semiconductor . |
| Collector- Base Voltage. | - 60 V, + 60 V |
| Collector- Emitter Volt. | - 50 V, + 50 V |
| Configuration | Dual |
| Continuous Collector Cu. | - 150 mA / + 150 mA |
| Current - Collector (Ic. | 150mA |
| Current - Collector Cut. | 100nA (ICBO) |
| DC Collector/Base Gain . | 120 |
| DC Current Gain (hFE) (. | 120 @ 1mA, 6V |
| DC Current Gain hFE Max | 560 |
| Emitter- Base Voltage V. | - 6 V, + 7 V |
| Frequency - Transition | 180MHz, 140MHz |
| Gain Bandwidth Product . | 140 MHz, 180 MHz |
| Manufacturer | Rohm Semiconductor |
| Manufacturer Part No. | IMZ2AT108 |
| Maximum DC Collector Cu. | 0.15 A |
| Maximum Operating Tempe. | + 150 C |
| Maximum Power Dissipati. | 300 mW |
| Mfr | Rohm Semiconductor |
| Mounting Style | SMD/SMT |
| Mounting Type | Surface Mount |
| Operating Temperature | 150?C (TJ) |
| Package | Tape & Reel (TR) |
| Package / Case | SC-74, SOT-457 |
| Package/Case | SC-74 |
| Packaging | Reel |
| Power - Max | 300mW |
| Product Category | Transistors Bipolar - B. |
| Product Status | Active |
| Series | - |
| Supplier Device Package | SMT6 |
| Transistor Polarity | NPN/PNP |
| Transistor Type | NPN, PNP |
| Vce Saturation (Max) @ . | 400mV @ 5mA, 50mA, 500m. |
| Voltage - Collector Emi. | 50V |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hotenda | H2038463 | 0.1026 | 1 | 3000 | | ROHM Semiconductor | | 0.1026 @ 3000 |
| Digi-Key | 650564 | 0.49 | 1 | 3000 | | Rohm Semiconductor | | 0.49 @ 3000 |
| swatee.com | IMZ2AT108 | 0.79 | 1 | 3000 | | ROHM Semiconductor | | 0.79 @ 3000 |
